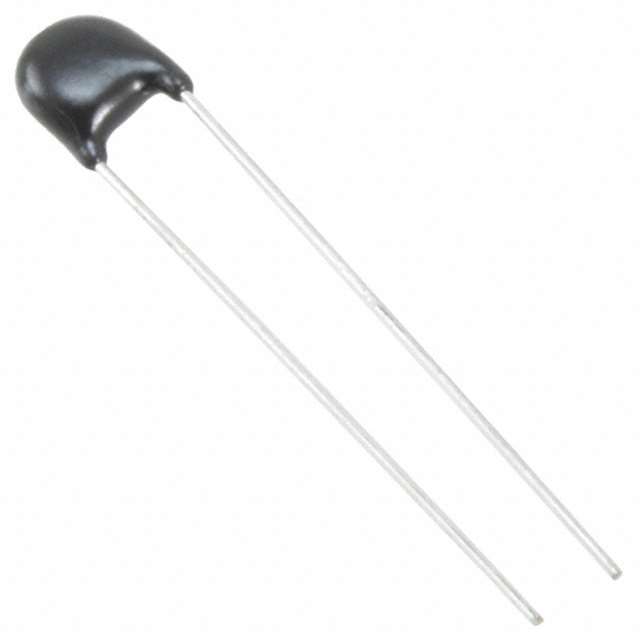

ERZ-E05 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VARISTOR 330V 1.2KA DISC 7MM

Part	Maximum DC Volts [Max]	Energy	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Mounting Type	Varistor Voltage (Max) [Max]	Varistor Voltage (Min) [Min]	Package / Case [diameter]	Package / Case	Current - Surge	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Maximum AC Volts
Panasonic Industrial Automation Sales ERZ-E05F331	270 V	21 J	1	85 °C	-40 °C	130 pF	Through Hole	363 V	297 V	7 mm	Disc	1.2 kA	330 V
Panasonic Industrial Automation Sales ERZ-E05F391	320 V	26 J	1	85 °C	-40 °C	130 pF	Through Hole	429 V	351 V	7 mm	Disc	1.2 kA	390 V	250 V
Panasonic Industrial Automation Sales ERZ-E05E431	350 V	29 J	1	85 °C	-40 °C	120 pF	Through Hole	473 V	387 V	7 mm	Disc	1.2 kA	430 V	275 V
Panasonic Industrial Automation Sales ERZ-E05A431	350 V	29 J	1	85 °C	-40 °C	120 pF	Through Hole	473 V	387 V	7 mm	Disc	1.2 kA	430 V	275 V
Panasonic Industrial Automation Sales ERZ-E05A271	225 V	18 J	1	85 °C	-40 °C	150 pF	Through Hole	303 V	247 V	7 mm	Disc	1.2 kA	270 V	175 V
Panasonic Industrial Automation Sales ERZ-E05B201CS	170 V	13 J	1	85 °C	-40 °C	200 pF	Through Hole	225 V	185 V	7 mm	Disc	1.2 kA	200 V	130 V
Panasonic Industrial Automation Sales ERZ-E05F221	180 V	14 J	1	85 °C	-40 °C	190 pF	Through Hole	242 V	198 V	7 mm	Disc	1.2 kA	220 V	140 V

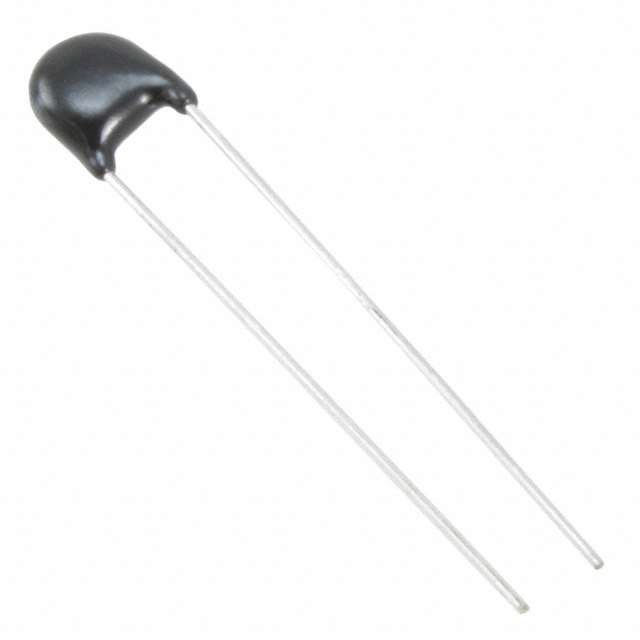

Panasonic Industrial Automation Sales ERZ-E05A221	180 V	14 J	1	85 °C	-40 °C	190 pF	Through Hole	242 V	198 V	7 mm	Disc	1.2 kA	220 V	140 V
Panasonic Industrial Automation Sales ERZ-E05B331CS	270 V	21 J	1	85 °C	-40 °C	130 pF	Through Hole	363 V	297 V	7 mm	Disc	1.2 kA	330 V
Panasonic Industrial Automation Sales ERZ-E05E471	385 V	32 J	1	85 °C	-40 °C	100 pF	Through Hole	517 V	423 V	7 mm	Disc	1.2 kA	470 V		300 V
