094213 Series
Manufacturer: Molex
Beta
⌘K

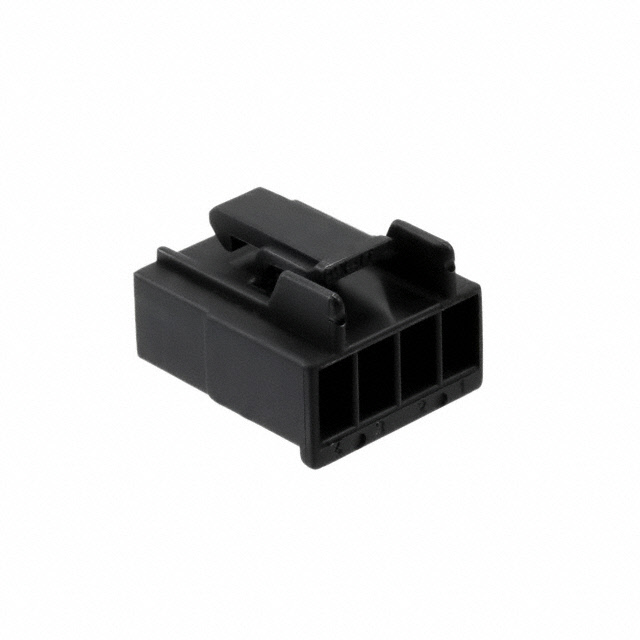

CONN HSG RCPT 4POS 5.00MM BLACK
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Stacking Direction | Note | Color | Current Rating (Amps) | Number of Rows | Pitch [x] | Pitch [x] | Contact Termination | Number of Positions | Material - Insulation | Contact Type | Contact Finish | Contact Material | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Free Hanging (In-Line) | -40 °C | 105 ░C | Receptacle | Latch Lock | Side to Side | Contacts Not Included | Black | 25 A | 1 | 5 mm | 0.197 in | Crimp | 4 | Polyamide (PA66) Nylon 6/6 | Male Blade | ||||
 Molex | Through Hole Right Angle | -40 °C | 85 °C | Header Male Blades | Latch Lock | White | 25 A | 1 | 5 mm | 0.197 in | 4 | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | 250 VDC |
