Plp160 Series Series

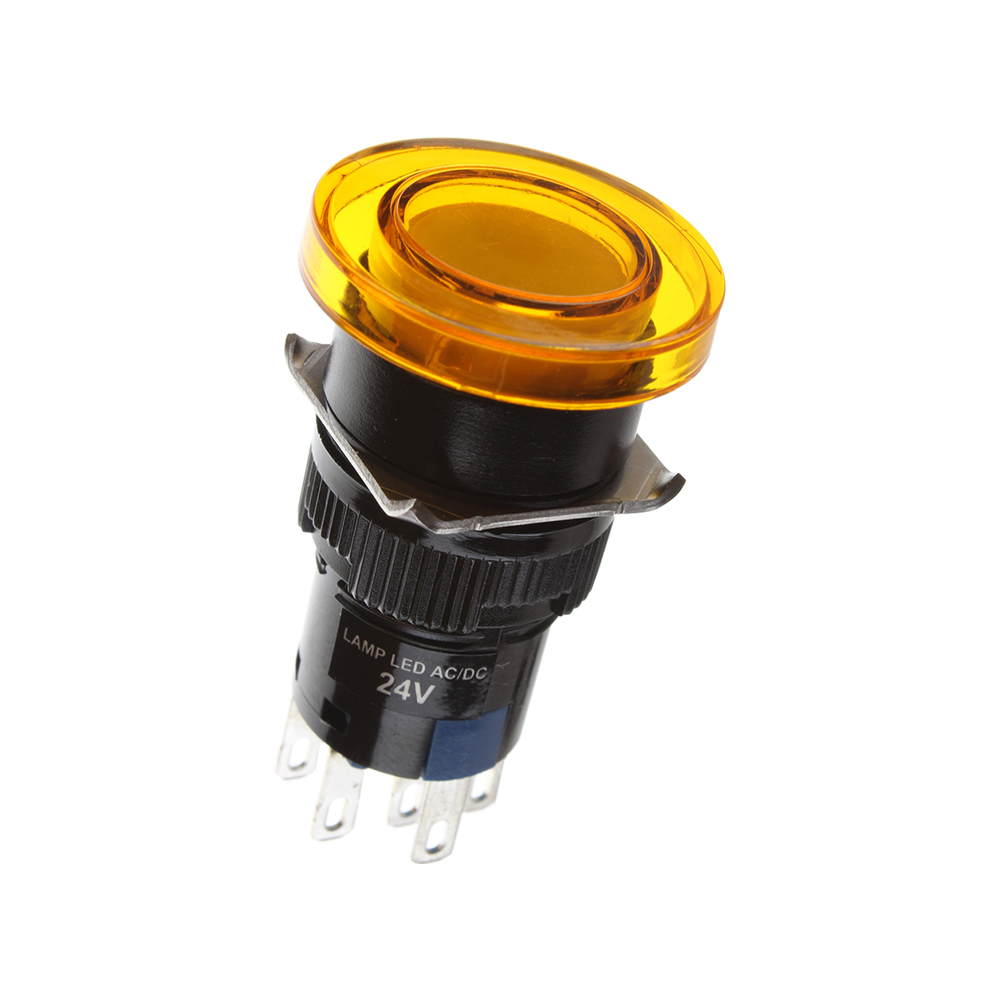

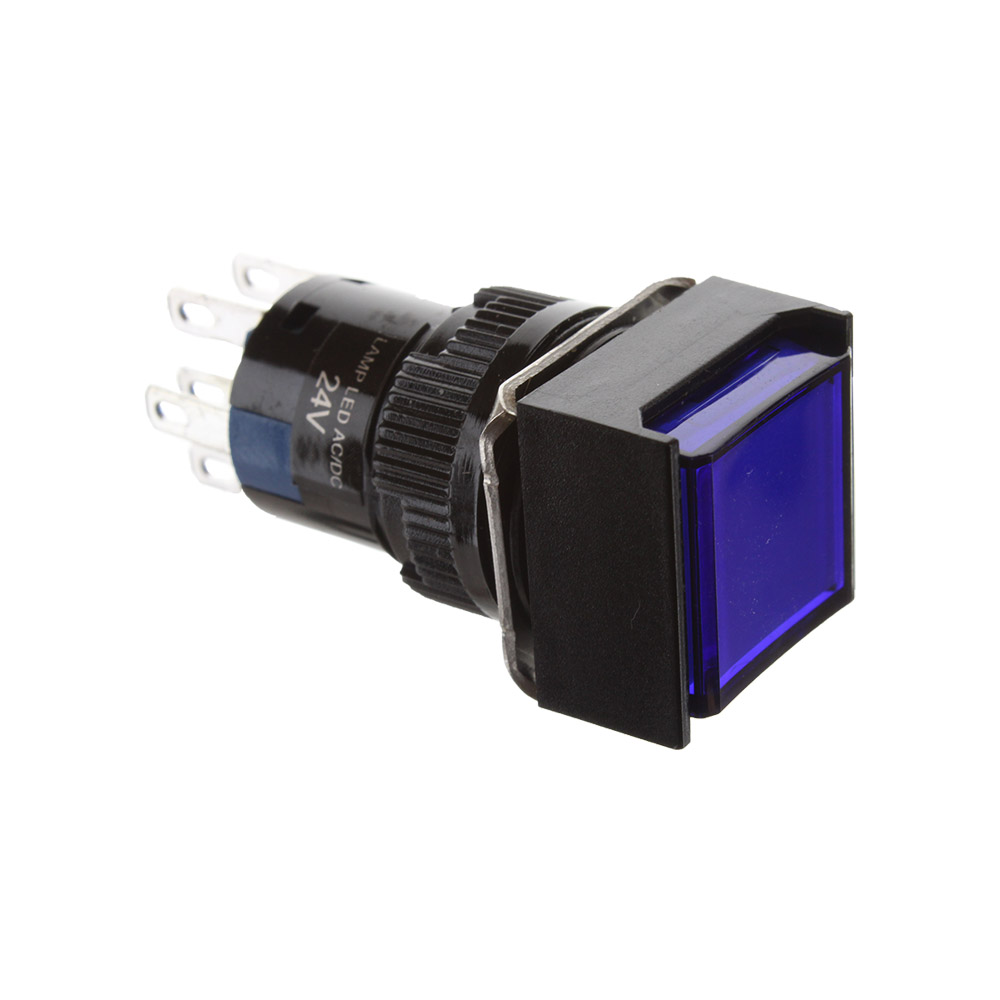

Panel Mount LED Sealed Pushbutton Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Panel Mount LED Sealed Pushbutton Switch

Part	Switch Function	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Actuator Type	Ingress Protection	Electrical Life	Mechanical Life	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Illumination Type, Color
Littelfuse/Commercial Vehicle Products PLP16-C2TA6-SA6	On-Mom	Panel Mount Front	Standard	16.2 mm	SPDT	Green	30 V	No Marking	1 A 3 A	Rectangular Button	IP65 - Dust Tight Water Resistant	100000 Cycles	1000000 Cycles	250 V	Solder Lug	55 °C	-25 °C

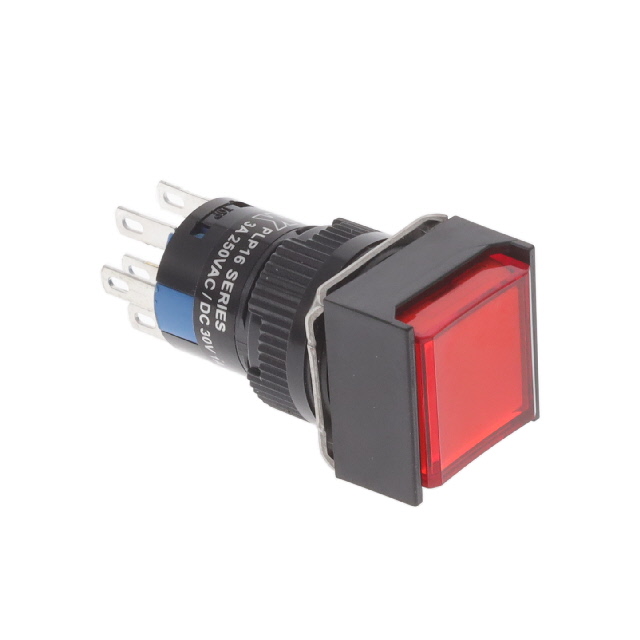

Littelfuse/Commercial Vehicle Products PLP16-24SQ3-DE6	On-On	Panel Mount Front	Illuminated Standard	16.2 mm	DPDT	Red	30 V	No Marking	1 A 3 A	Button Square	IP65 - Dust Tight Water Resistant	50000 Cycles	100000 Cycles	250 V	Solder Lug	55 °C	-25 °C	24 VAC/DC	LED Red
Littelfuse/Commercial Vehicle Products PLP16-C1RD3-SE6	On-On	Panel Mount Front	Standard	16.2 mm	SPDT	Red	30 V	No Marking	1 A 3 A	Button Round	IP65 - Dust Tight Water Resistant	50000 Cycles	100000 Cycles	250 V	Solder Lug	55 °C	-25 °C

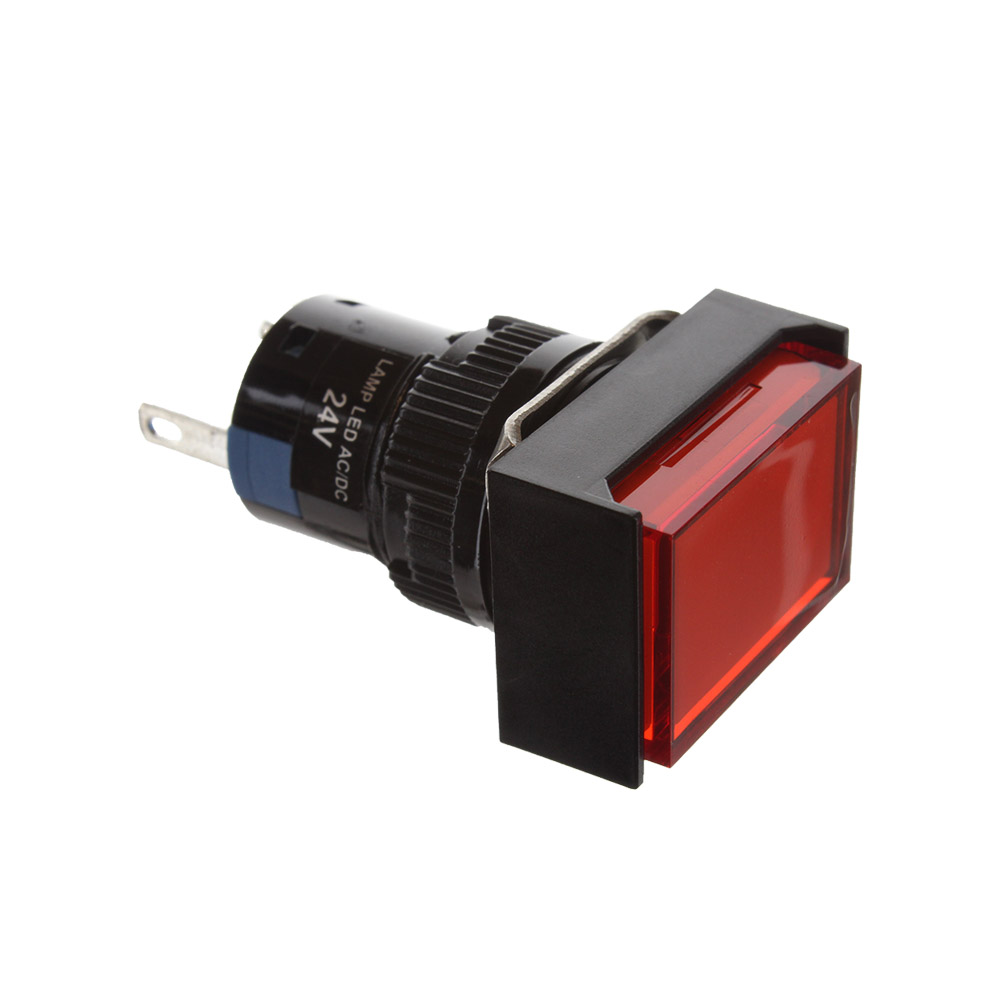

Littelfuse/Commercial Vehicle Products PLP16-24TA3-SA6	On-Mom	Panel Mount Front	Illuminated Standard	16.2 mm	SPDT	Red	30 V	No Marking	1 A 3 A	Rectangular Button	IP65 - Dust Tight Water Resistant	100000 Cycles	1000000 Cycles	250 V	Solder Lug	55 °C	-25 °C	24 VAC/DC	LED Red
Littelfuse/Commercial Vehicle Products PLP16-00RD6-SA6	On-Mom	Panel Mount Front	Standard	16.2 mm	SPDT	Green	30 V	No Marking	1 A 3 A	Button Round	IP65 - Dust Tight Water Resistant	100000 Cycles	1000000 Cycles	250 V	Solder Lug	55 °C	-25 °C

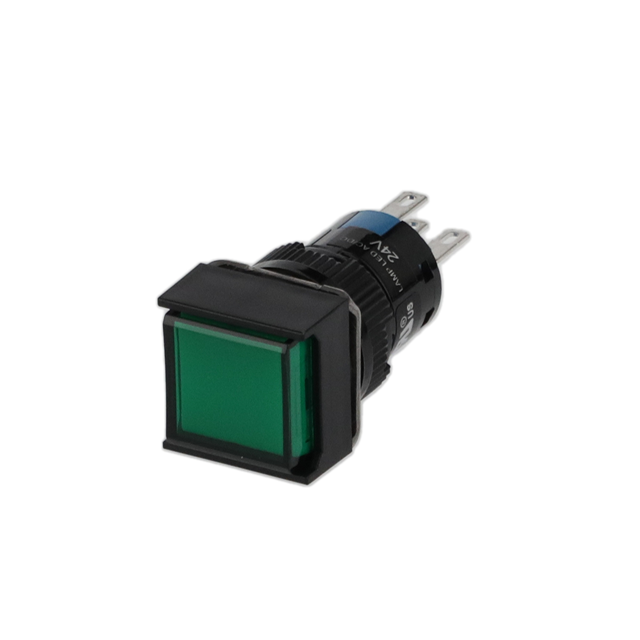

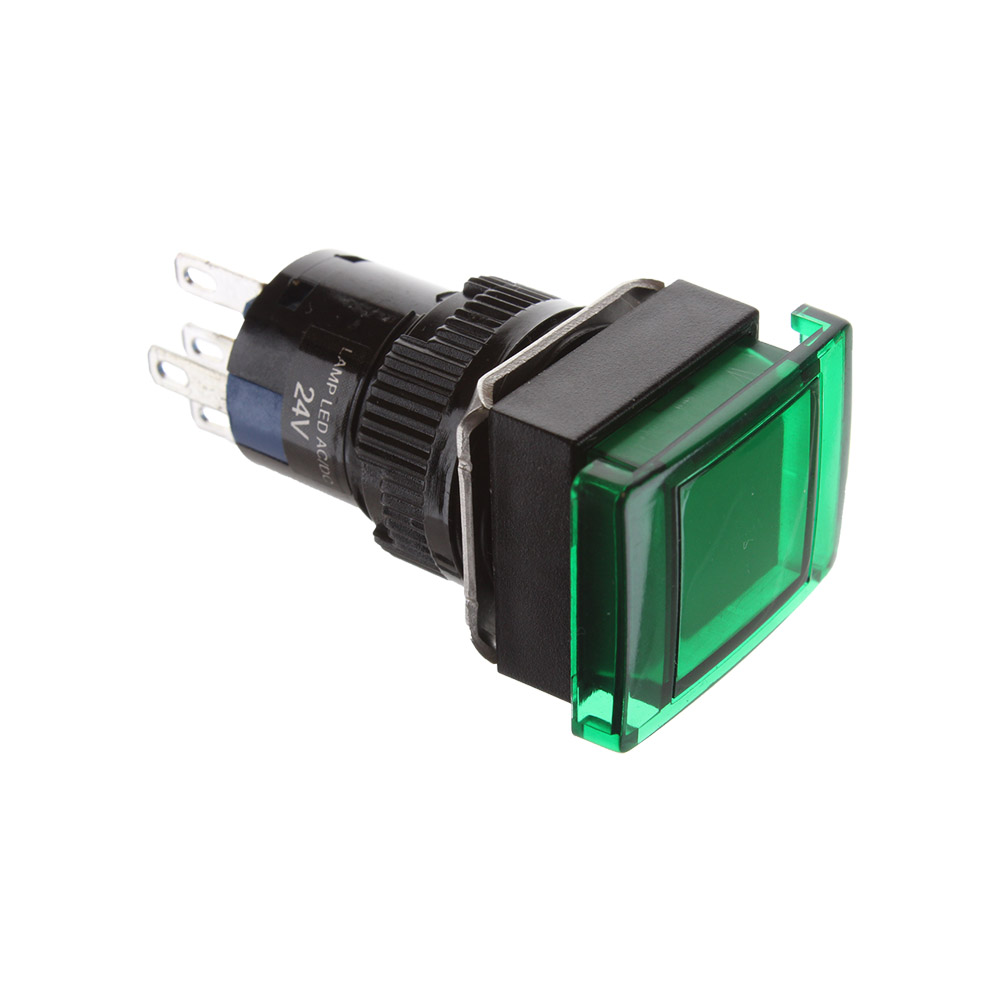

Littelfuse/Commercial Vehicle Products PLP16-24SQ6-SE4	On-On	Panel Mount Front	Illuminated Standard	16.2 mm	SPDT	Green	30 V	No Marking	1 A 3 A	Button Square	IP40	50000 Cycles	100000 Cycles	250 V	Solder Lug	55 °C	-25 °C	24 VAC/DC	Green LED
Littelfuse/Commercial Vehicle Products PLP16-C1SQ3-SA4	On-Mom	Panel Mount Front	Standard	16.2 mm	SPDT	Red	30 V	No Marking	1 A 3 A	Button Square	IP40	100000 Cycles	1000000 Cycles	250 V	Solder Lug	55 °C	-25 °C
Littelfuse/Commercial Vehicle Products PLP16-24RD3-DE6	On-On	Panel Mount Front	Illuminated Standard	16.2 mm	DPDT	Red	30 V	No Marking	1 A 3 A	Button Round	IP65 - Dust Tight Water Resistant	50000 Cycles	100000 Cycles	250 V	Solder Lug	55 °C	-25 °C	24 VAC/DC	LED Red

Catalog

Panel Mount LED Sealed Pushbutton Switch

Key Features

• IP40 or IP65

• Illuminated & non-illuminated pushbutton

• Momentary or lock version

• Snap-action provide positive feedback

Description
