940-SP-36 Series

Catalog

CONNECTOR, SHLD RJ45, PLUG, 8P8C, IDC

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Shield Material	Housing Material	Voltage Rating	Features	Number of Positions/Contacts	Termination	Shielding	Color	Connector Type	Cable Type	Length	Length	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [y]	Number of Positions/Contacts [x]	Wire Gauge [Min]	Wire Gauge [Max]

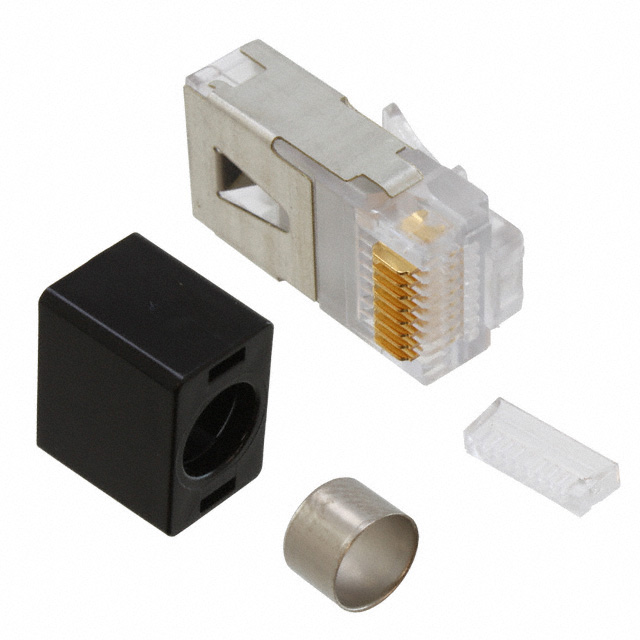

Bel Fuse Inc. 940-SP-360808-A161	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Molded Boot	8p8c (RJ45 Ethernet)	IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	26.57 mm	1.046 in
Bel Fuse Inc. 940-SP-361010-RMK4-A161	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Keyed Molded Boot		IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	26.57 mm	1.046 in	10	10
Bel Fuse Inc. 940-SP-360606-A151	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Molded Boot		IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	26.57 mm	1.046 in			6	6

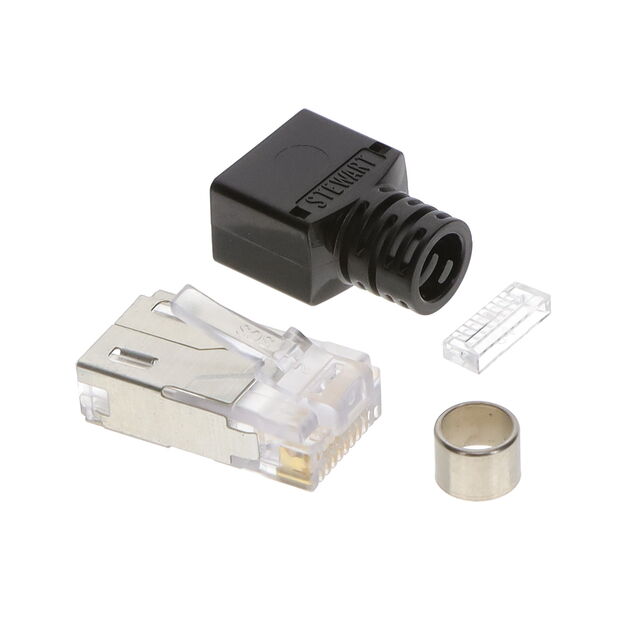

Bel Fuse Inc. 940-SP-360808-A218	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Molded Boot	8p8c (RJ45 Ethernet)	IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	34.16 mm	1.345 in

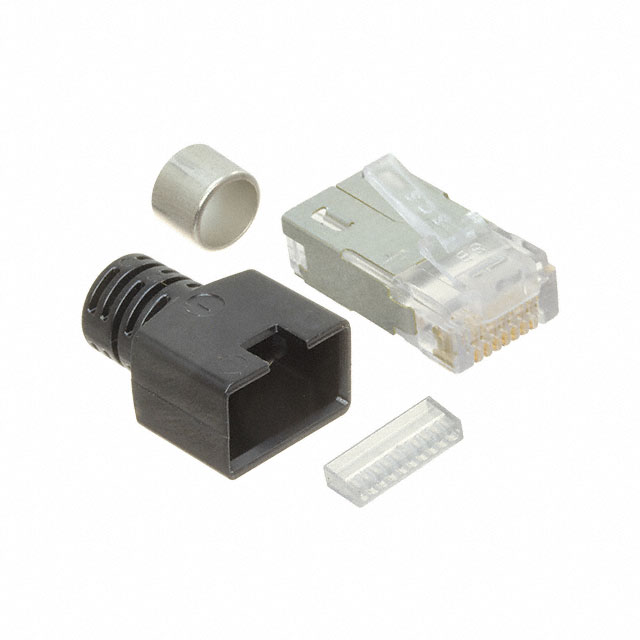

Bel Fuse Inc. 940-SP-361010-A218	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Molded Boot		IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	32.66 mm	1.286 in	10	10
Bel Fuse Inc. 940-SP-360808-FS-A92-B1000	Copper Alloy			Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC		8p8c (RJ45 Ethernet)	IDC	Shielded		Plug	Flat Oval Cable Solid or Stranded Wires							24 AWG	28 AWG

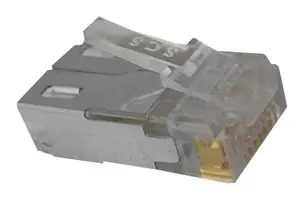

Bel Fuse Inc. 940-SP-361010-RMK4-A108	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Keyed Molded Boot		IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	26.57 mm	1.046 in	10	10
Bel Fuse Inc. 940-SP-360808-FS-B1000	Copper Alloy			Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC		8p8c (RJ45 Ethernet)	IDC	Shielded		Plug	Flat Oval Cable Solid or Stranded Wires							24 AWG	28 AWG
Bel Fuse Inc. 940-SP-360808-A217	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC		8p8c (RJ45 Ethernet)	IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	24.13 mm	0.95 in

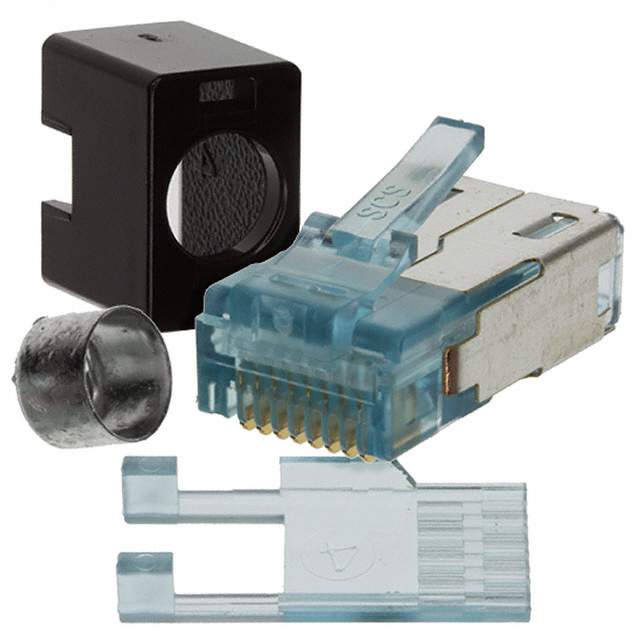

Bel Fuse Inc. 940-SP-360808-031-A108	Phosphor Bronze	50 µin	1.27 µm	Gold	1.5 A	Brass	Polycarbonate (PC)	150 VDC	Molded Boot	8p8c (RJ45 Ethernet)	IDC	Shielded	Translucent - Clear	Plug	Flat Oval Cable Solid or Stranded Wires	26.57 mm	1.046 in
