103233 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post	Contact Length - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions Loaded	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Termination	Current Rating (Amps)	Connector Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Material	Mounting Type	Contact Finish - Mating	Contact Finish - Post
TE Connectivity AMP Connectors 5-103233-8	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	18	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin
TE Connectivity AMP Connectors 103233-2	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	6	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead
TE Connectivity AMP Connectors 5-103233-7	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	16	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin
TE Connectivity AMP Connectors 5-103233-5	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	12	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin
TE Connectivity AMP Connectors 5-103233-9	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	20	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin
TE Connectivity AMP Connectors 2-103233-9	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	60	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead
TE Connectivity AMP Connectors 3-103233-9	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	80	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead
TE Connectivity AMP Connectors 2-103233-4	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	50	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead

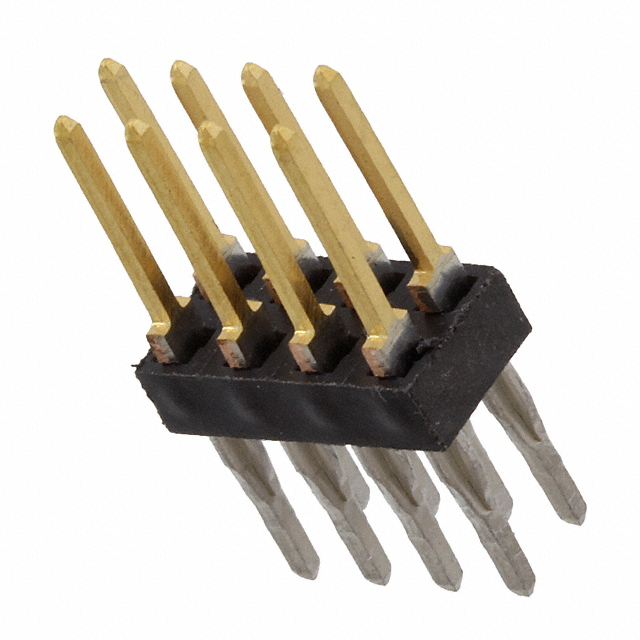

TE Connectivity AMP Connectors 103233-3	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	8	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead
TE Connectivity AMP Connectors 103233-4	2.54 µm	100 µin	-55 C	125 °C	Square	6.35 mm	0.25 in	Unshrouded	0.32 in	8.13 mm	0.66 in	16.76 mm	Black	All	2	0.1 "	2.54 mm	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	Male Pin	0.09 in	2.29 mm	10	Press-Fit Solder	3 A	Header	Push-Pull	0.1 in	2.54 mm	Board to Board Cable	Copper Alloy	Through Hole	Gold	Tin-Lead
