M80-MV3 Series
Manufacturer: Harwin Inc.
Beta
⌘K
6 POS. MALE SIL COAX VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
| Part | Mated Stacking Heights | Mounting Type | Termination | Insulation Color | Material Flammability Rating | Fastening Type | Number of Positions | Insulation Material | Contact Material | Insulation Height | Insulation Height | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Shape | Pitch - Mating | Pitch - Mating | Style | Features | Number of Rows | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

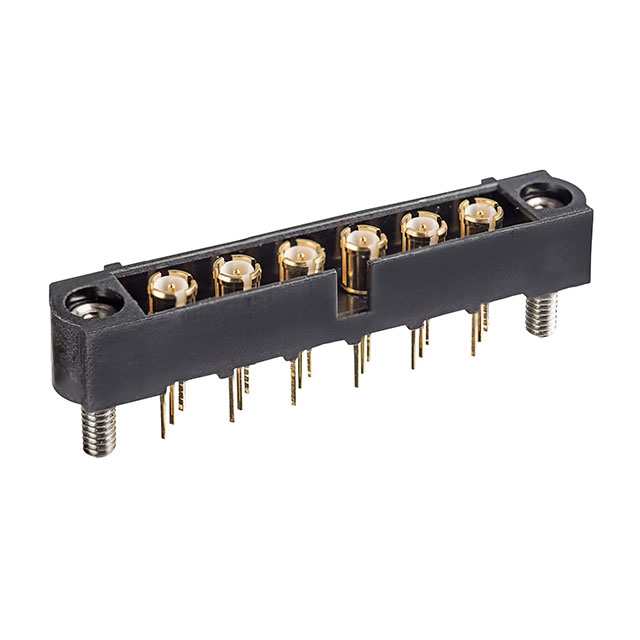

 Harwin Inc. | 7.3 mm 9.7 mm 9.75 mm | Through Hole | Solder | Black | UL94 V-0 | Threaded | 6 | Polyphenylene Sulfide (PPS) Glass Filled | Copper Alloy | 5.6 mm | 0.22 in | Shrouded - 4 Wall | -55 C | 125 °C | Header | Circular | 4 mm | 0.157 in | Board to Board Cable | Mating Flange Mounting Flange | 1 | Coaxial Male Pin | 4.5 mm | 0.177 in | All |

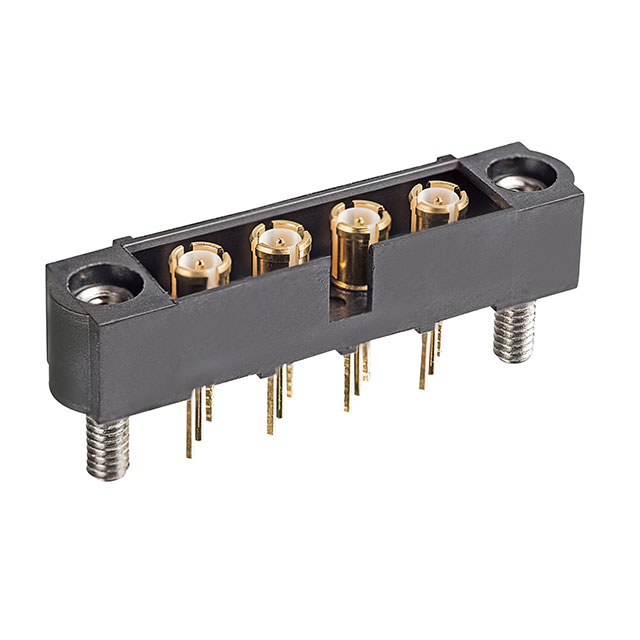

 Harwin Inc. | 7.3 mm 9.7 mm 9.75 mm | Through Hole | Solder | Black | UL94 V-0 | Threaded | 4 | Polyphenylene Sulfide (PPS) Glass Filled | Copper Alloy | 5.6 mm | 0.22 in | Shrouded - 4 Wall | -55 C | 125 °C | Header | Circular | 4 mm | 0.157 in | Board to Board Cable | Mating Flange Mounting Flange | 1 | Coaxial Male Pin | 4.5 mm | 0.177 in | All |

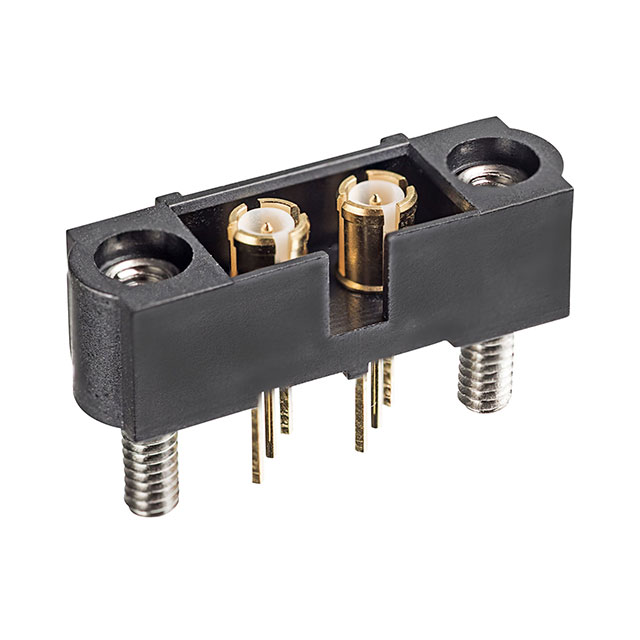

 Harwin Inc. | 7.3 mm 9.7 mm 9.75 mm | Through Hole | Solder | Black | UL94 V-0 | Threaded | 2 | Polyphenylene Sulfide (PPS) Glass Filled | Copper Alloy | 5.6 mm | 0.22 in | Shrouded - 4 Wall | -55 C | 125 °C | Header | Circular | 4 mm | 0.157 in | Board to Board Cable | Mating Flange Mounting Flange | 1 | Coaxial Male Pin | 4.5 mm | 0.177 in | All |

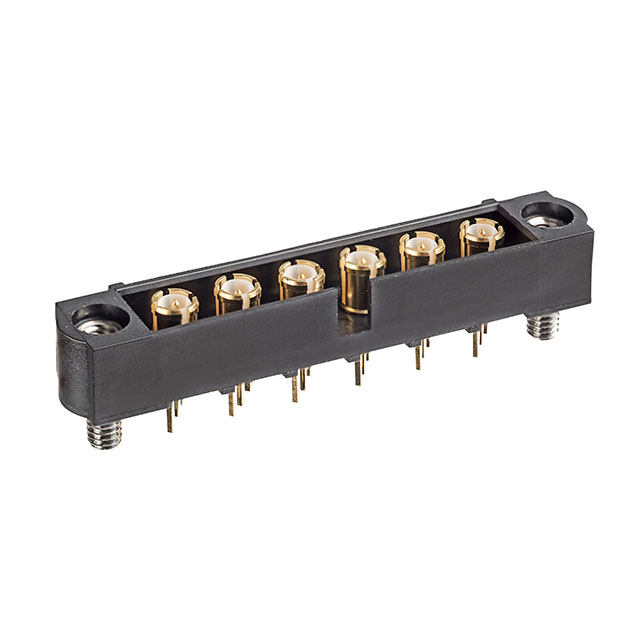

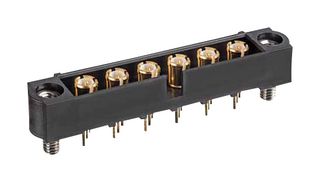

 Harwin Inc. | 7.3 mm 9.7 mm 9.75 mm | Through Hole | Solder | Black | UL94 V-0 | Threaded | 6 | Polyphenylene Sulfide (PPS) Glass Filled | Copper Alloy | 5.6 mm | 0.22 in | Shrouded - 4 Wall | -55 C | 125 °C | Header | Circular | 4 mm | 0.157 in | Board to Board Cable | Mating Flange Mounting Flange | 1 | Coaxial Male Pin | 4.5 mm | 0.177 in | All |

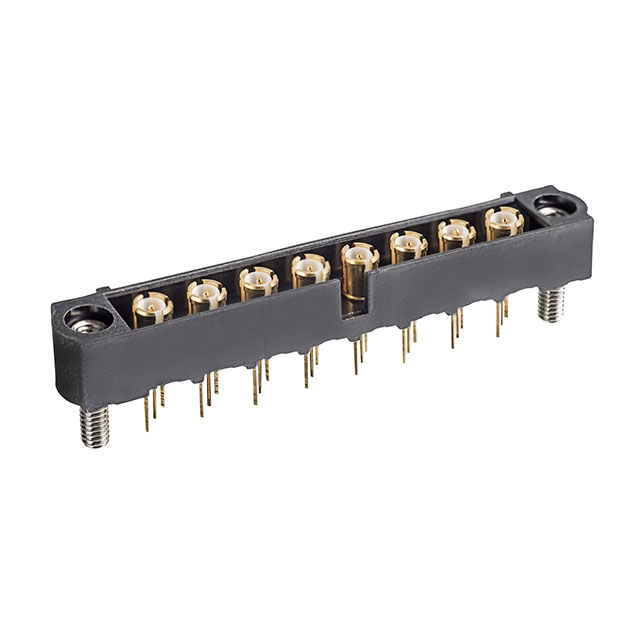

 Harwin Inc. | 7.3 mm 9.7 mm 9.75 mm | Through Hole | Solder | Black | UL94 V-0 | Threaded | 8 | Polyphenylene Sulfide (PPS) Glass Filled | Copper Alloy | 5.6 mm | 0.22 in | Shrouded - 4 Wall | -55 C | 125 °C | Header | Circular | 4 mm | 0.157 in | Board to Board Cable | Mating Flange Mounting Flange | 1 | Coaxial Male Pin | 4.5 mm | 0.177 in | All |
