312-1 Series

Manufacturer: Ohmite

Catalog

SWITCH ROTARY 12POS 30A 300V

Part	Contact Timing	Depth Behind Panel [z]	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Angle of Throw	Index Stops	Circuit per Deck	Number of Poles per Deck	Number of Positions	Contact Material	Actuator Type	Number of Decks	Mounting Type	Actuator Length [x]	Number of Decks [custom]
Ohmite 312-12T2E	Non-Shorting (BBM)	117.5 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP12T	1	12	Silver Alloy	Flatted (6.35mm Dia)	2	Panel Mount	28.58 mm
Ohmite 312-12T3E	Non-Shorting (BBM)	177.8 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP12T	1	12	Silver Alloy	Flatted (6.35mm Dia)	3	Panel Mount	28.58 mm
Ohmite 312-11E	Non-Shorting (BBM)	57.2 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP11T	1	11	Silver Alloy	Flatted (6.35mm Dia)		Panel Mount	28.58 mm	1
Ohmite 312-10	Non-Shorting (BBM)	57.2 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP10T	1	10	Silver Alloy	Flatted (6.35mm Dia)		Panel Mount	28.58 mm	1
Ohmite 312-11T3E	Non-Shorting (BBM)	177.8 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP11T	1	11	Silver Alloy	Flatted (6.35mm Dia)	3	Panel Mount	28.58 mm

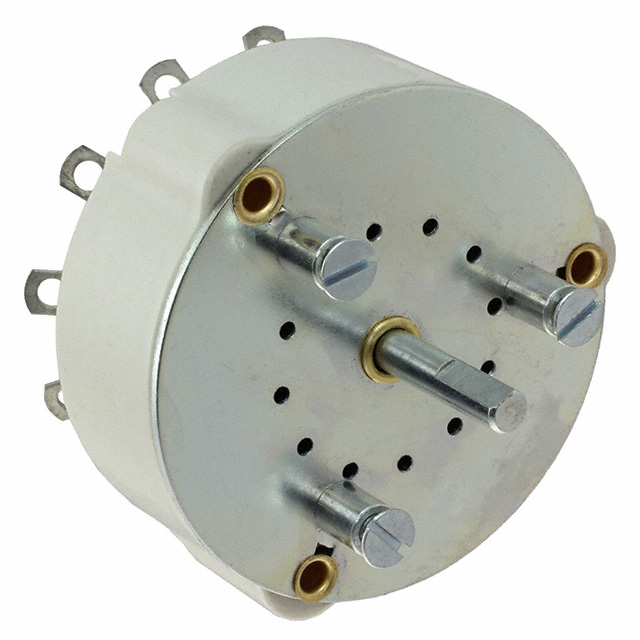

Ohmite 312-12E	Non-Shorting (BBM)	57.2 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP12T	1	12	Silver Alloy	Flatted (6.35mm Dia)		Panel Mount	28.58 mm	1
Ohmite 312-10T3E	Non-Shorting (BBM)	177.8 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP10T	1	10	Silver Alloy	Flatted (6.35mm Dia)	3	Panel Mount	28.58 mm
Ohmite 312-10T2E	Non-Shorting (BBM)	117.5 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP10T	1	10	Silver Alloy	Flatted (6.35mm Dia)	2	Panel Mount	28.58 mm

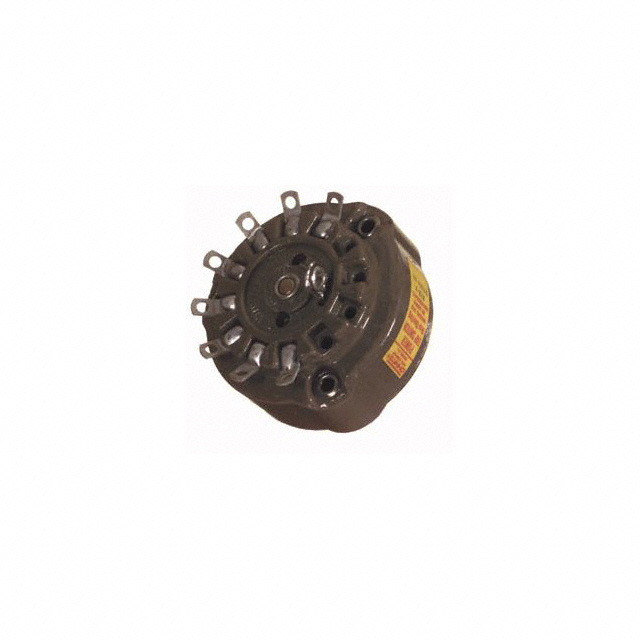

Ohmite 312-12	Non-Shorting (BBM)	57.2 mm	20 V	30 A	300 V	Solder Lug	30 °	Fixed	SP12T	1	12	Silver Alloy	Flatted (6.35mm Dia)		Panel Mount	28.58 mm	1
