SDR1030 Series

Catalog

IND10X10X3MM,150UH10%0.6A,NON-SHDSMD /TAPE & REEL - 13" REEL

Part	Current Rating (Amps)	Frequency - Self Resonant	Type	Inductance Frequency - Test	Mounting Type	Material - Core	Current - Saturation (Isat)	Package / Case	Tolerance	DC Resistance (DCR)	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Q @ Freq	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SDR1030-151K	600 mA	7.9 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite	580 mA	Nonstandard	10 %	700 mOhm	150 µH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded	23 796 kHz

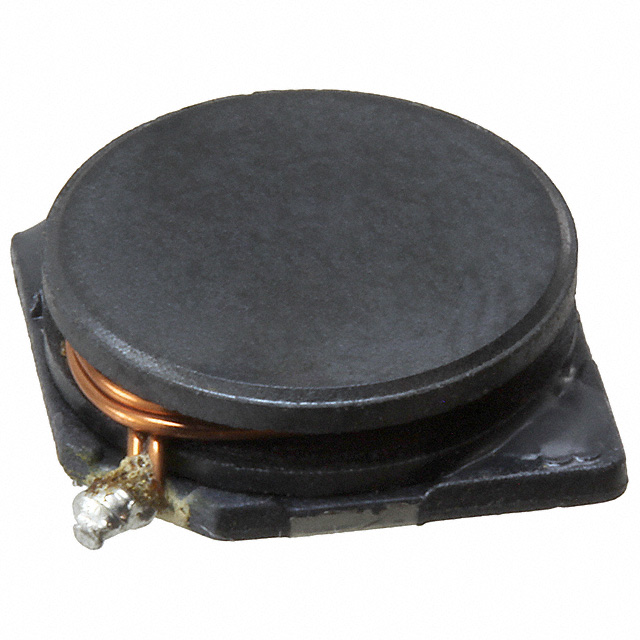

Bourns Inc. SDR1030-2R7M	3 A	73.6 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite	4.2 A	Nonstandard	20 %	28 mOhm	2.7 µH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded	7.96 MHz 13
Bourns Inc. SDR1030-221K	460 mA	6.2 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite	480 mA	Nonstandard	10 %	1.15 Ohm	220 µH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded	23 796 kHz
Bourns Inc. SDR1030-6R8M	2.2 A	38.1 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite	2.8 A	Nonstandard	20 %		6.8 µH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded	7.96 MHz 15
Bourns Inc. SDR1030-100M	2 A	33.1 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite	2.4 A	Nonstandard	20 %		10 µH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded	2.52 MHz 15	64 mOhm
Bourns Inc. SDR1030-102K	0.2 A	2.5 MHz	Drum Core Wirewound	100 kHz	Surface Mount	Ferrite		Nonstandard	10 %		1 mH	0.13 in	3.3 mm	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Unshielded		4.7 Ohm	42	252 kHz
