396-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

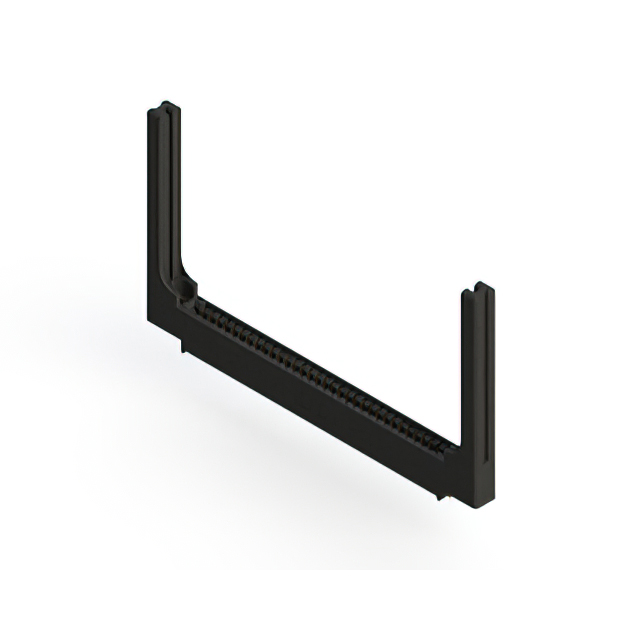

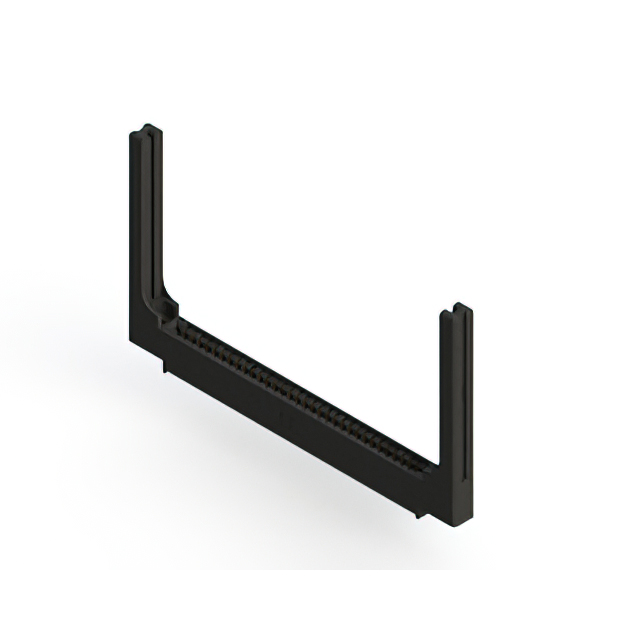

CONN EDGE SGL FMALE 33POS 0.125
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Number of Rows | Contact Material | Card Type | Number of Positions [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Mounting Type | Number of Positions/Bay/Row | Color | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Right Angle Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Right Angle Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Female | Right Angle Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.18 mm | 0.125 in | 1 | Copper Alloy | Non Specified - Single Edge | 33 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Through Hole | 33 | Black | Gold | -40 C | 105 ░C | Cantilever | Single | 0.25 Ám | 10 Áin |
