725-120 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 120POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Pitch	Pitch	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Gender	Contact Type	Color	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination

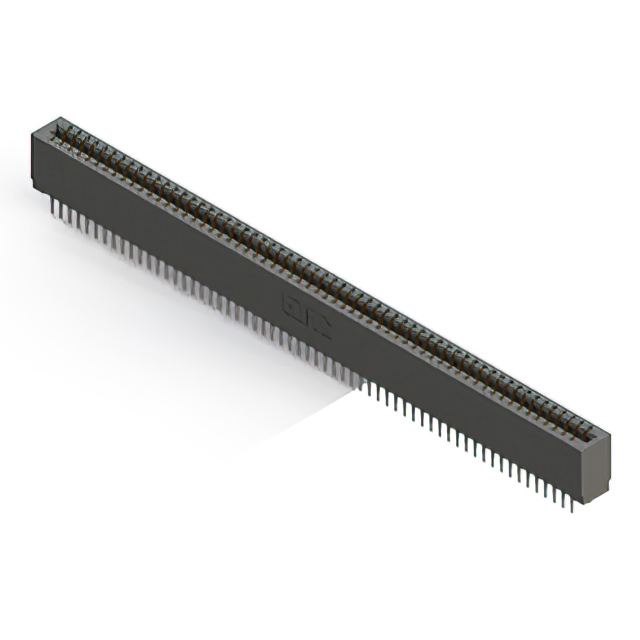

EDAC Inc. 725-120-560-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Gold	Dual	60	Copper Alloy	Female	Cantilever Make Before Break	Black	2	30 Áin	0.76 Ám	120	Press-Fit
EDAC Inc. 725-120-520-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Gold	Dual	60	Copper Alloy	Female	Cantilever	Black	2	30 Áin	0.76 Ám	120	Press-Fit
EDAC Inc. 725-120-540-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Gold	Dual	60	Copper Alloy	Female	Cantilever	Black	2	30 Áin	0.76 Ám	120	Press-Fit Wire Wrap

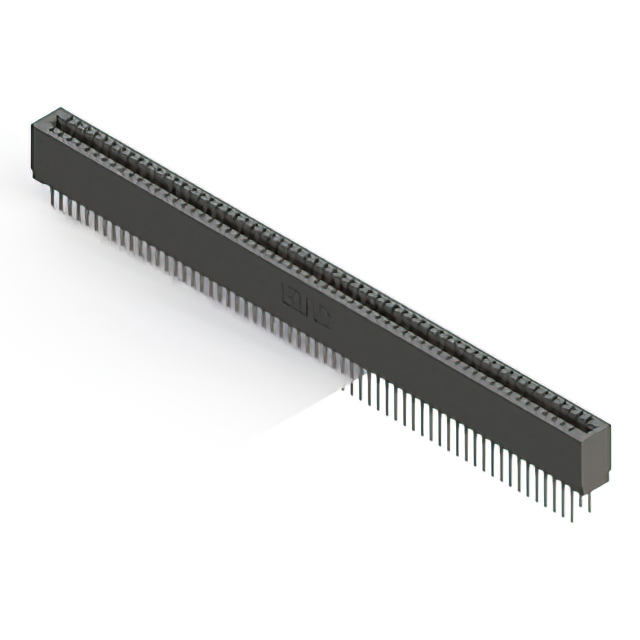

EDAC Inc. 725-120-522-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Gold	Dual	60	Copper Alloy	Female	Cantilever	Black	2	30 Áin	0.76 Ám	120	Press-Fit
