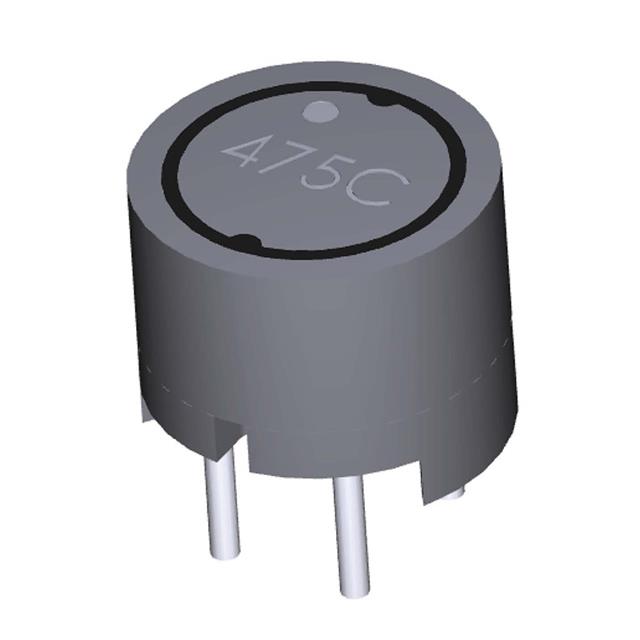

12LRS Series

Catalog

INDUCTOR, 1MH, 15%, 0.4A, RADIAL ROHS COMPLIANT: YES

Part	Mounting Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Package / Case	Inductance Frequency - Test	Shielding	DC Resistance (DCR)
Murata Electronics 12LRS105C	Through Hole	1 mH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	400 mA	Wirewound	85 °C	-40 C	2.3 Ohm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS475C	Through Hole	4.7 mH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	0.18 A	Wirewound	85 °C	-40 C	10.5 Ohm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS683C	Through Hole	68 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	1.6 A	Wirewound	85 °C	-40 C	160 mOhm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS334C	Through Hole	330 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	0.63 A	Wirewound	85 °C	-40 C	860 mOhm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS684C	Through Hole	680 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	0.5 A	Wirewound	85 °C	-40 C	1.65 Ohm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS473C	Through Hole	47 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	20 %	1.7 A	Wirewound	85 °C	-40 C	140 mOhm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS474C	Through Hole	470 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	0.53 A	Wirewound	85 °C	-40 C	1.23 Ohm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS104C	Through Hole	100 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	1.4 A	Wirewound	85 °C	-40 C		Radial Vertical Cylinder 4 Leads	10 kHz	Shielded	200 mOhm
Murata Electronics 12LRS226C	Through Hole	22 mH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	73 mA	Wirewound	85 °C	-40 C	70 Ohm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
Murata Electronics 12LRS154C	Through Hole	150 µH	0.335 "	8.5 mm	10.5 mm	0.413 in	15 %	1 A	Wirewound	85 °C	-40 C	350 mOhm	Radial Vertical Cylinder 4 Leads	10 kHz	Shielded
