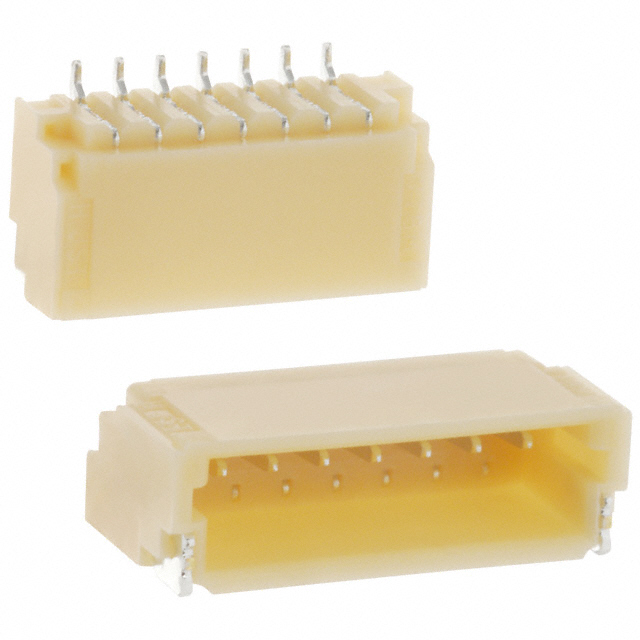

SM07B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 7POS 1MM
| Part | Insulation Material | Number of Positions Loaded | Fastening Type | Number of Positions | Connector Type | Contact Material | Shrouding | Contact Finish - Post | Voltage Rating | Features | Style | Number of Rows | Contact Shape | Contact Type | Material Flammability Rating | Mounting Type | Termination | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon Polyamide (PA) | All | Push-Pull | 7 | Header | Copper Alloy | Shrouded - 4 Wall | Tin | 50 V | Solder Retention | Board to Cable/Wire | 1 | Square | Male Pin | UL94 V-0 | Right Angle Surface Mount | Solder | 1 mm | 0.039 in | 0.114 in | 2.9 mm | 85 °C | -25 °C | Natural |
