315-032 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Pitch	Pitch	Number of Positions/Bay/Row	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Read Out	Mounting Type	Termination	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 315-032-520-258	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Panel Mount Through Hole	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-032-555-207	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Board Edge Straddle Mount	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

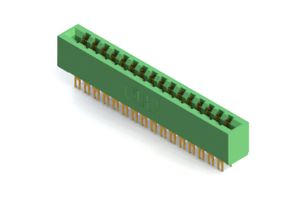

EDAC Inc. 315-032-500-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy		3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Free Hanging (In-Line)	Solder Eyelet(s)	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-032-520-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Panel Mount Through Hole	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm

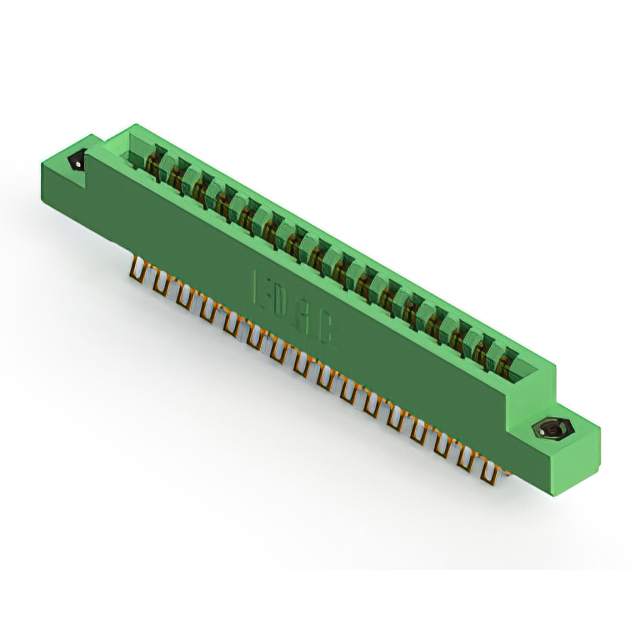

EDAC Inc. 315-032-555-208	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Board Edge Straddle Mount	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 315-032-500-208	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Panel Mount	Solder Eyelet(s)	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-032-500-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Panel Mount	Solder Eyelet(s)	2	0.07 in 1.78 mm	0.054 in 1.37 mm

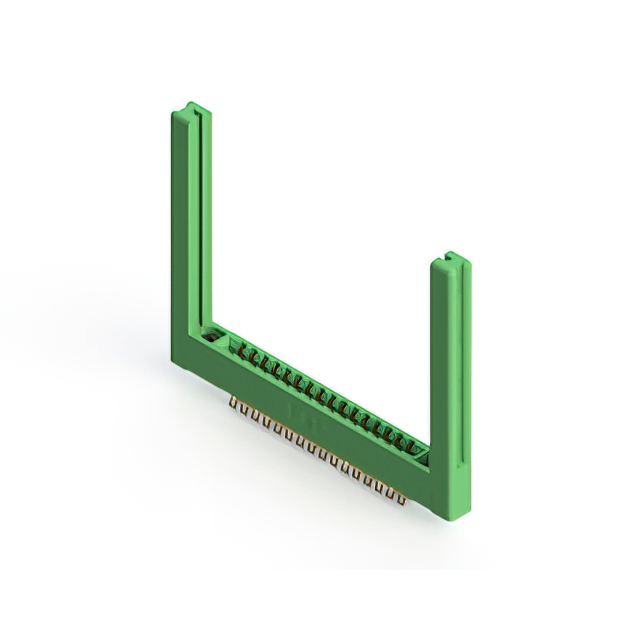

EDAC Inc. 315-032-555-258	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Board Edge Straddle Mount	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender Card Guides
EDAC Inc. 315-032-556-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy		3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Board Edge Straddle Mount	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

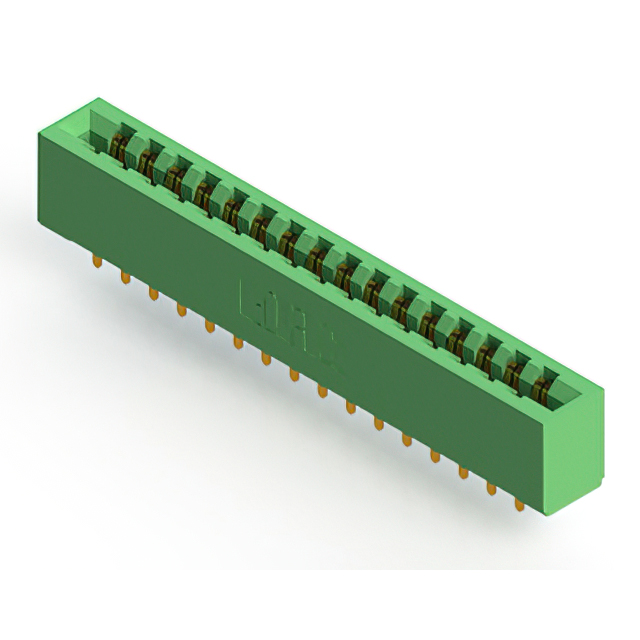

EDAC Inc. 315-032-521-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	Semi Bellows	Female	0.25 Ám	10 Áin	Copper Alloy		3.96 mm	0.156 in	16	Gold	-40 C	105 ░C	Green	Dual	Through Hole	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm
