PIG-003 Series

Catalog

SET OF 6 SCP MM OM3 BUFFERED 3M

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color - Cable	Insertion Loss	Fiber Core Diameter	Fiber Cladding Diameter	Cable Type	Type	1st Connector	Cable Diameter	2nd Connector	Length - Overall	Features	Return Loss

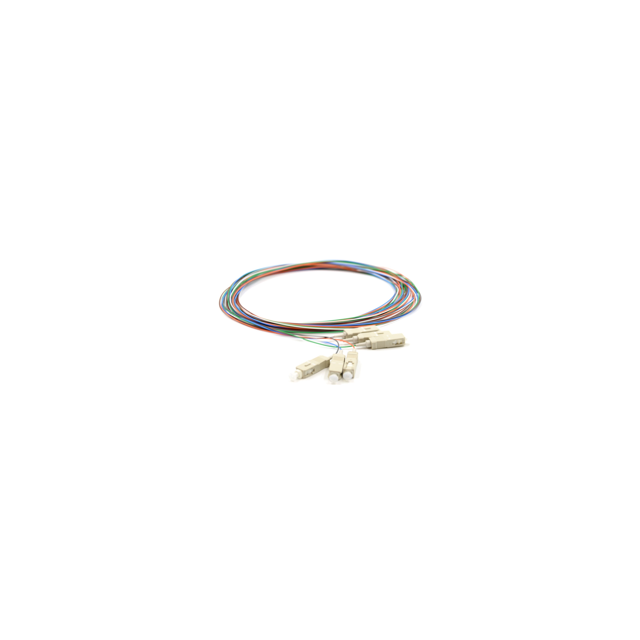

FiberSource, Inc PIG-003-L-F-09-S-Q	-40 °C	85 °C	Multiple	0.4 dB	50 µm	125 µm	Buffered Fiber	Multimode OM3	SCP	0.03 "	Cable	9.8 ft	6 pc

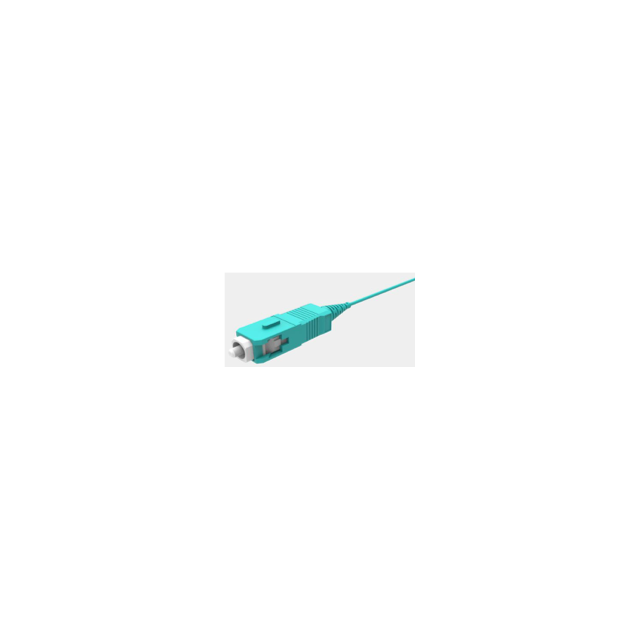

FiberSource, Inc PIG-003-L-F-09-S-6	-40 °C	85 °C	White		50 µm	125 µm		Multimode OM3 Simplex	SC/PPC	0.03 "	Cable	9.8 ft

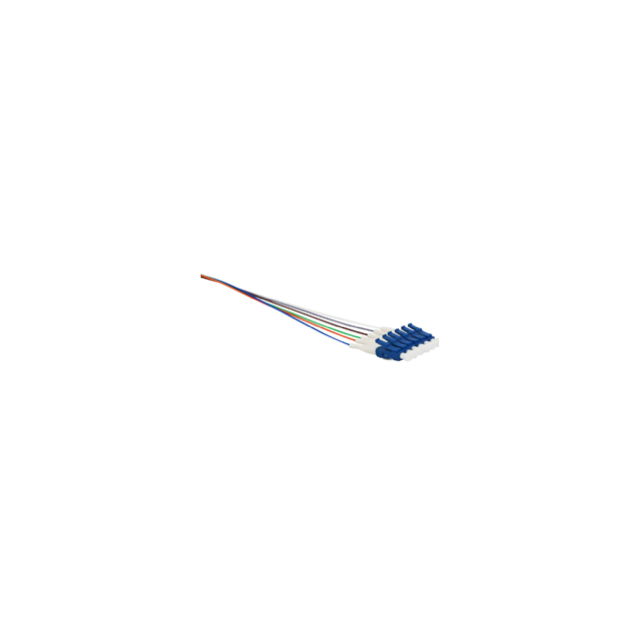

FiberSource, Inc PIG-003-H-B-09-S-Q	-40 °C	85 °C	Multiple	0.3 dB	9 µm	125 µm	Buffered Fiber	Singlemode	LCU	0.03 "	Cable	9.8 ft	6 pc	55 dB

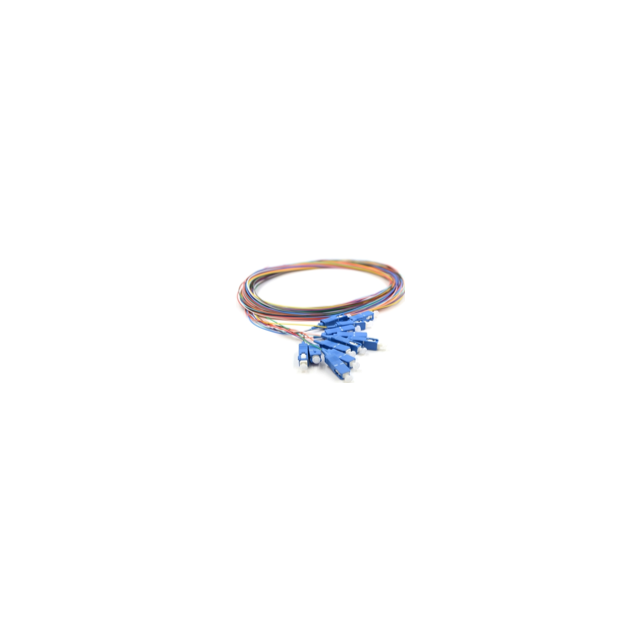

FiberSource, Inc PIG-003-D-B-09-S-S	-40 °C	85 °C	Multiple	0.3 dB	9 µm	125 µm	Buffered Fiber	Singlemode	SCA	0.03 "	Cable	9.8 ft	12 pc	55 dB
FiberSource, Inc PIG-003-D-B-09-S-6	-40 °C	85 °C	White	0.2 dB	9 µm	125 µm		Simplex Singlemode	SC/APC	0.03 "	Cable	9.8 ft		65 dB

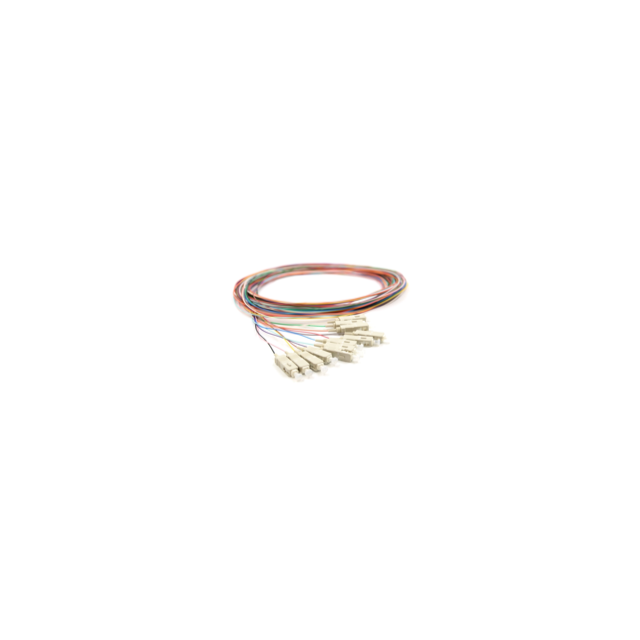

FiberSource, Inc PIG-003-L-F-09-S-S	-40 °C	85 °C	Multiple	0.4 dB	50 µm	125 µm	Buffered Fiber	Multimode OM3	SCP	0.03 "	Cable	9.8 ft	12 pc

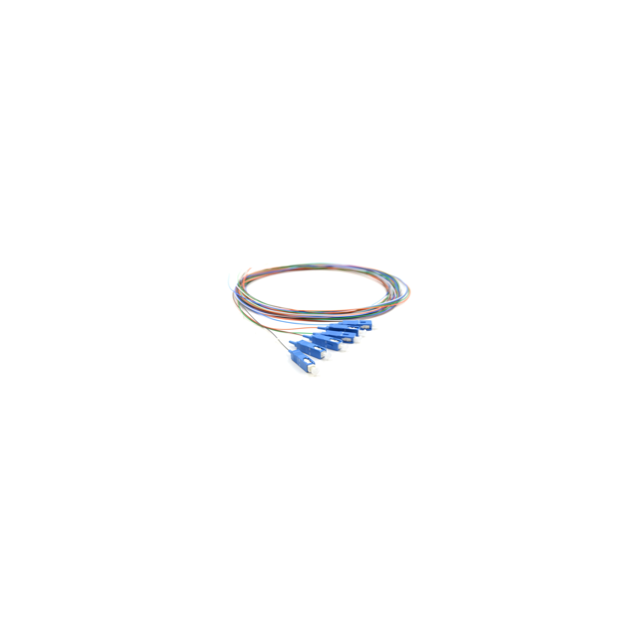

FiberSource, Inc PIG-003-D-B-09-S-Q	-40 °C	85 °C	Multiple	0.3 dB	9 µm	125 µm	Buffered Fiber	Singlemode	SCA	0.03 "	Cable	9.8 ft	6 pc	55 dB
FiberSource, Inc PIG-003-C-B-09-S-6	-40 °C	85 °C	White	0.2 dB	9 µm	125 µm		Simplex Singlemode	SC/UPC	0.03 "	Cable	9.8 ft		55 dB
