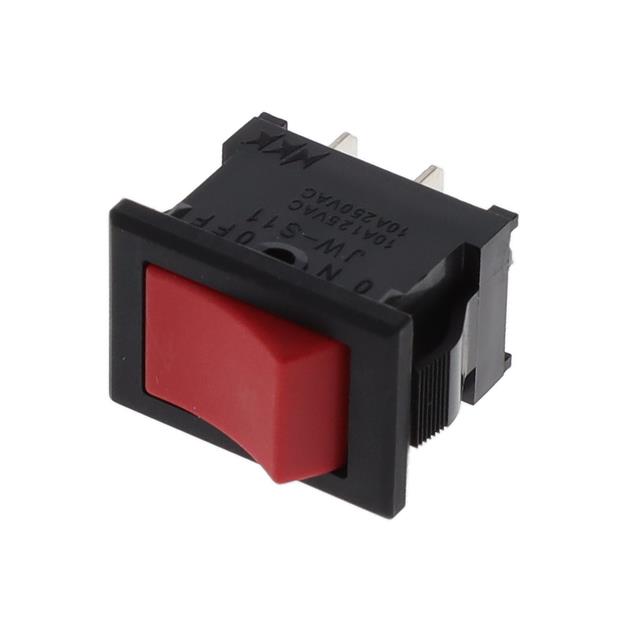

JWS11R Series
Manufacturer: NKK Switches
Beta
⌘K
INTERNATIONALLY APPROVED ROCKER
| Part | Mechanical Life | Electrical Life | Approval Agency | Mounting Type | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Termination Style | Termination Style | Ingress Protection | Actuator Marking | Circuit | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Ivory | -25 °C | 70 °C | Concave (Curved) | ||
NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Ivory | -25 °C | 70 °C | Concave (Curved) | ||
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Black | -25 °C | 50 °C | Concave (Curved) - Illuminated | 2 VDC | Amber LED |
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Red | -25 °C | 50 °C | Concave (Curved) - Illuminated | 2.1 VDC | Green LED |
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Black | -25 °C | 70 °C | Concave (Curved) | ||
NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Red | -25 °C | 50 °C | Concave (Curved) - Illuminated | 2 VDC | Amber LED |
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Red | -25 °C | 70 °C | Concave (Curved) | ||
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Black | -25 °C | 50 °C | Concave (Curved) - Illuminated | 2.1 VDC | Green LED |
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Black | -25 °C | 70 °C | Concave (Curved) | ||
 NKK Switches | 30000 Steps | 10000 Cycles | CSA UL VDE | Panel Mount Snap-In | On-Off | 12.9 mm | 19.2 mm | 125 V | 6 A | 4.7 mm | 0.187 in | Solder Quick Connect | Dust Proof | No Marking | SPST | Black | -25 °C | 50 °C | Concave (Curved) - Illuminated | 1.8 VDC | LED Red |
