323-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

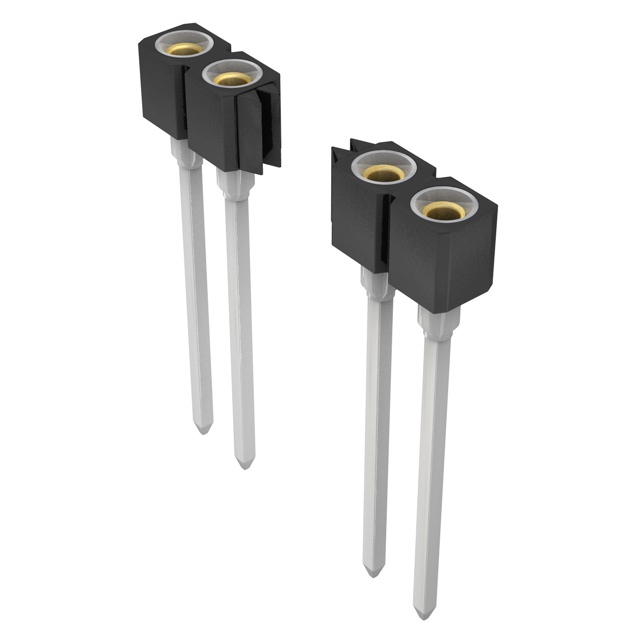

CONN SOCKET 46POS 0.1 GOLD PCB
| Part | Contact Material | Contact Shape | Insulation Material | Mounting Type | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish - Mating | Insulation Height | Insulation Height | Number of Positions | Connector Type | Contact Type | Number of Rows | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 46 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 55 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 37 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 45 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 35 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 13 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 42 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 23 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 49 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | All | 0.51 in | 12.95 mm | 0.1 " | 2.54 mm | Push-Pull | Black | Wire Wrap | -55 C | 125 °C | 3 A | Gold | 4.9 mm | 0.193 " | 21 | Socket | Female Socket | 1 | UL94 V-0 | Tin | Flash |
