338070 Series

Catalog

HEADERS & WIRE HOUSINGS FOB 16P TOP ENTRY

Part	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Material Flammability Rating	Number of Positions	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Applications	Voltage Rating	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Style	Number of Rows	Number of Positions

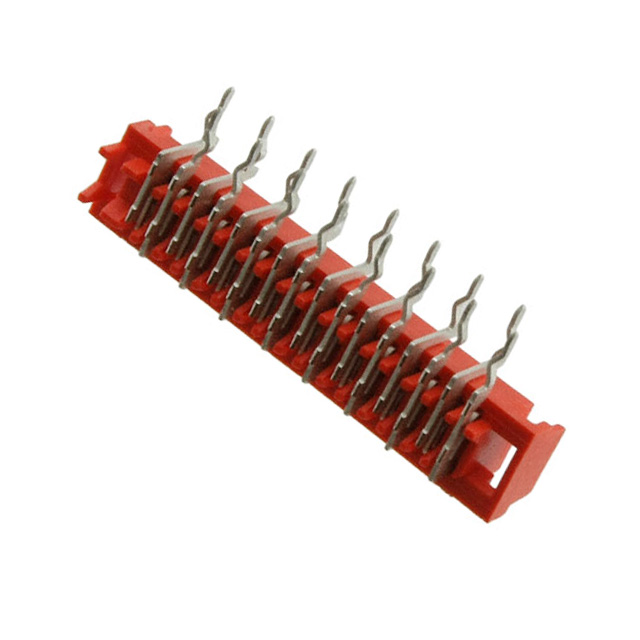

TE Connectivity Raychem Cable Protection 1-338070-6	Kinked Pin Solder	Phosphor Bronze	2.54 mm	0.1 in	0.1 in	2.54 mm	Friction Lock	Through Hole Right Angle	UL94 V-0	16	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	All	Tin	5.8 mm	0.228 in	Automotive General Purpose	100 V	Receptacle	0.122 "	3.1 mm	-40 °C	105 ░C	Forked	Board to Board Cable	2

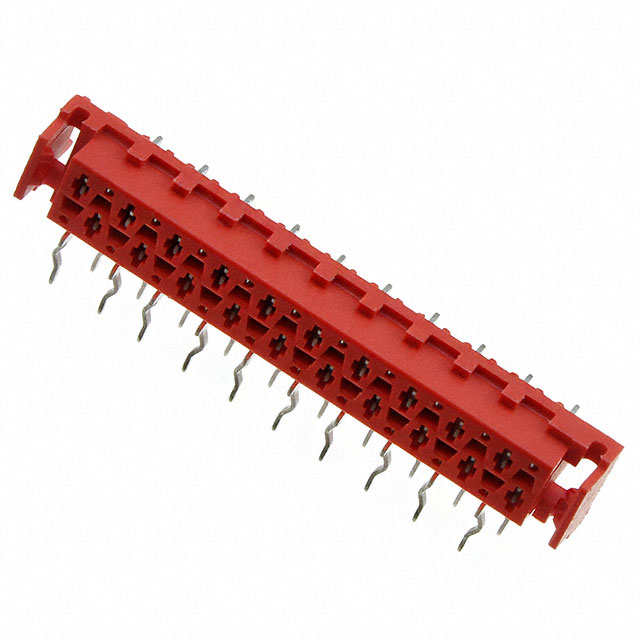

TE Connectivity Raychem Cable Protection 2-338070-0	Kinked Pin Solder	Phosphor Bronze	2.54 mm	0.1 in	0.1 in	2.54 mm	Friction Lock	Through Hole Right Angle	UL94 V-0		Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	All	Tin	5.8 mm	0.228 in	Automotive General Purpose	100 V	Receptacle	0.122 "	3.1 mm	-40 °C	105 ░C	Forked	Board to Board Cable	2	20

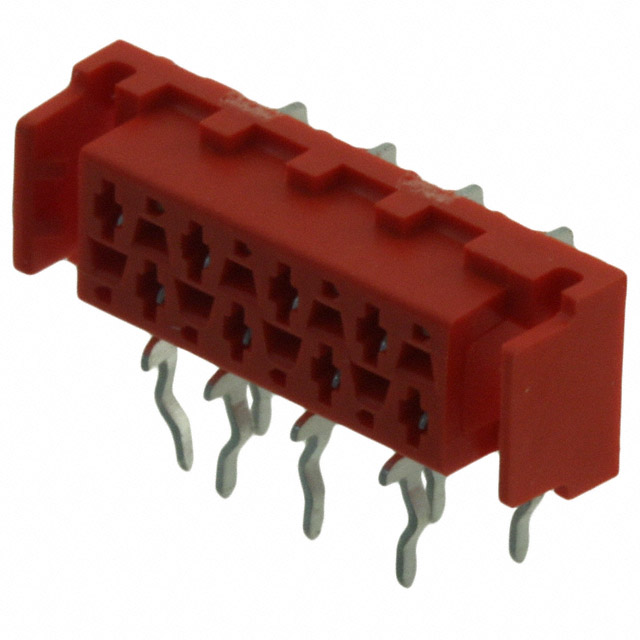

TE Connectivity Raychem Cable Protection 338070-8	Kinked Pin Solder	Phosphor Bronze	2.54 mm	0.1 in	0.1 in	2.54 mm	Friction Lock	Through Hole Right Angle	UL94 V-0		Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	All	Tin	5.8 mm	0.228 in	Automotive General Purpose	100 V	Receptacle	0.122 "	3.1 mm	-40 °C	105 ░C	Forked	Board to Board Cable	2	8
