2R5SVPC Series

Manufacturer: Panasonic Electronic Components

Catalog

CAPACITOR: POLYMER; LOW ESR; 1500UF; 2.5VDC; SMD; OS-CON SVPC; ±20%

Part	Applications	Tolerance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Ripple Current @ High Frequency	Package / Case	Ripple Current @ Low Frequency	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Type	Capacitance	Height - Seated (Max) [Max]
Panasonic Electronic Components 2R5SVPC1500M	General Purpose	20 %	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm	10 mOhm	Surface Mount	0.472 in	12 mm	5.15 A	Radial Can - SMD	257.5 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	1.5 mF
Panasonic Electronic Components 2R5SVPC820M	General Purpose	20 %	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm	9 mOhms	Surface Mount	0.472 in	12 mm	5.38 A	Radial Can - SMD	269 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	820 µF

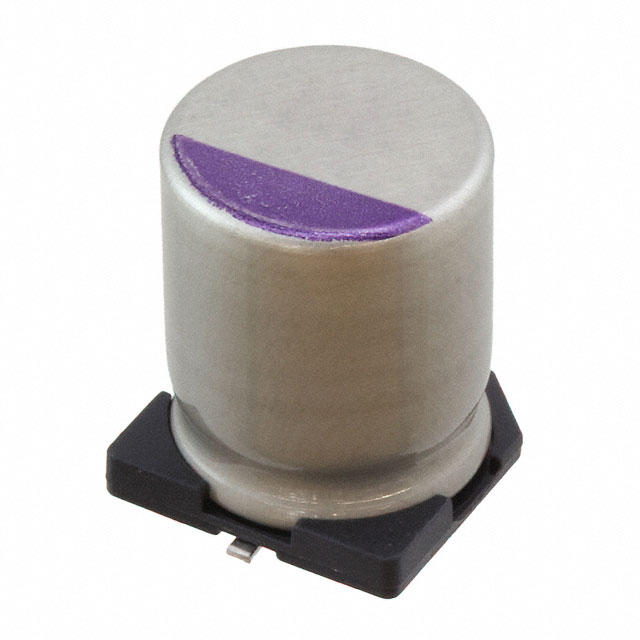

Panasonic Electronic Components 2R5SVPC2700M	General Purpose	20 %	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	12 mOhms	Surface Mount	0.5 in		5.07 A	Radial Can - SMD	253.5 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	2700 µF	12.7 mm
Panasonic Electronic Components 2R5SVPC680M	General Purpose	20 %	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm	20 mOhms	Surface Mount	0.276 in		3.37 A	Radial Can - SMD	168.5 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	68 µF	7 mm
Panasonic Electronic Components 2R5SVPC180MY	General Purpose	20 %	0.209 in 5.3 mm	0.209 in 5.3 mm			0.197 in	5 mm	24 mOhms	Surface Mount	0.236 "	6 mm	2.2 A	Radial Can - SMD	110 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	180 µF
Panasonic Electronic Components 2R5SVPC390M	General Purpose	20 %	6.6 mm	6.6 mm	0.26 in	0.26 in	0.248 "	6.3 mm	25 mOhm	Surface Mount	0.236 "	6 mm	2.41 A	Radial Can - SMD	120.5 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	390 µF
Panasonic Electronic Components 2R5SVPC560M	General Purpose	20 %	6.6 mm	6.6 mm	0.26 in	0.26 in	0.248 "	6.3 mm	16 mOhm	Surface Mount	0.236 "	6 mm	3.5 A	Radial Can - SMD	175 mA	2.5 V	-55 C	105 ░C	2000 Hrs	Polymer	560 µF
