342A012 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

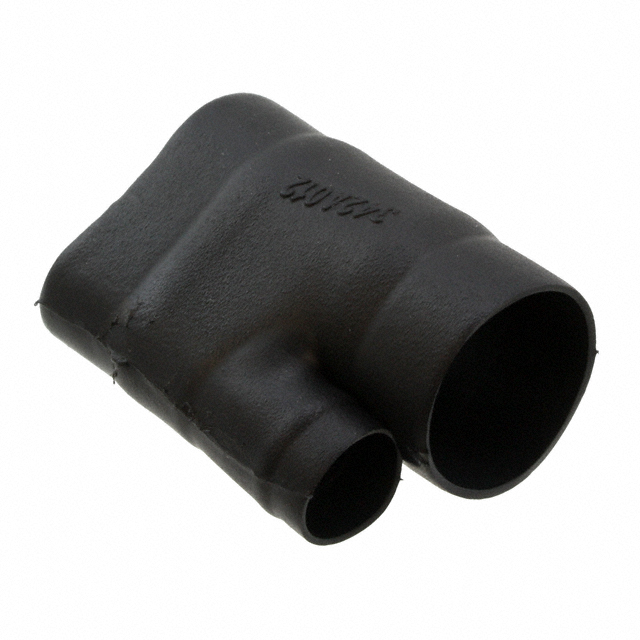

HEATSHRNK BOOT BRKOUT 45DEG SZ12

Part	Color	Shell Size - Insert	Material	Features	Type	Small Recovered Length	Small Recovered Length [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Total Length Recovered	Total Length Recovered	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 342A012-25-G05/225-0	Black	12	Elastomer Semi-Rigid	Adhesive Coating Fluid Resistant	Boot Transition - Side Breakout 45°
TE Connectivity Aerospace, Defense and Marine 342A012-25/86-0	Black	12	Elastomer Semi-Rigid	Adhesive Coating Fluid Resistant	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-100/86-0	Black	12	Polyolefin (PO) Semi-Flexible	Adhesive Coating	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-3/180-0	Black	12	Polyolefin (PO) Semi-Rigid	Adhesive Coating	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-25-0	Black	12	Elastomer Semi-Rigid		Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-3/42-0	Black	12	Polyolefin (PO) Semi-Rigid	Adhesive Coating	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-25-CS-2065-0	Black	12	Elastomer Semi-Rigid		Boot Transition - Side Breakout 45°
TE Connectivity Aerospace, Defense and Marine 342A012-25/225-0	Black	12	Elastomer Semi-Rigid	Adhesive Coating	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
TE Connectivity Aerospace, Defense and Marine 342A012-25/42-0	Black	12	Elastomer Semi-Rigid	Adhesive Coating Fluid Resistant	Boot Transition - Side Breakout 45°	23.39 mm	0.921 in	6.6 mm	0.26 in	0.52 in	13.21 mm	6.91 mm	0.272 in	0.902 in	22.91 mm	49.3 mm	1.941 "	0.142 "	3.61 mm
