842-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 35POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions	Gender	Card Type	Contact Material	Number of Positions/Bay/Row	Mounting Type	Contact Finish	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Number of Rows
EDAC Inc. 842-035-541-103	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Wire Wrap	1
EDAC Inc. 842-035-542-104	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Wire Wrap	1
EDAC Inc. 842-035-540-108	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		Wire Wrap	1
EDAC Inc. 842-035-541-107	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Wire Wrap	1

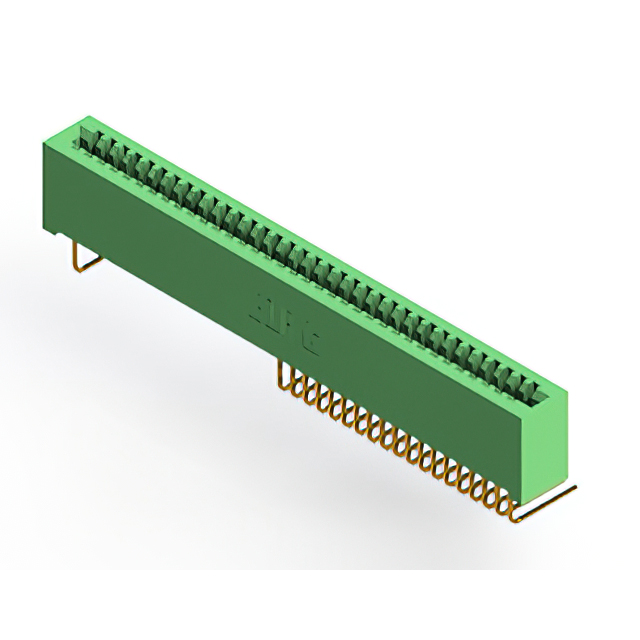

EDAC Inc. 842-035-558-101	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Right Angle Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever				Solder	1
EDAC Inc. 842-035-542-103	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Wire Wrap	1

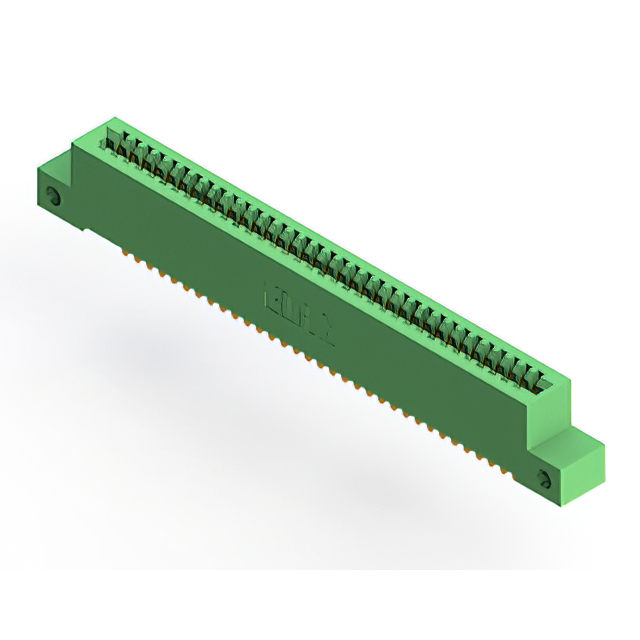

EDAC Inc. 842-035-500-112	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Solder Eyelet(s)	1
EDAC Inc. 842-035-520-107	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Solder	1

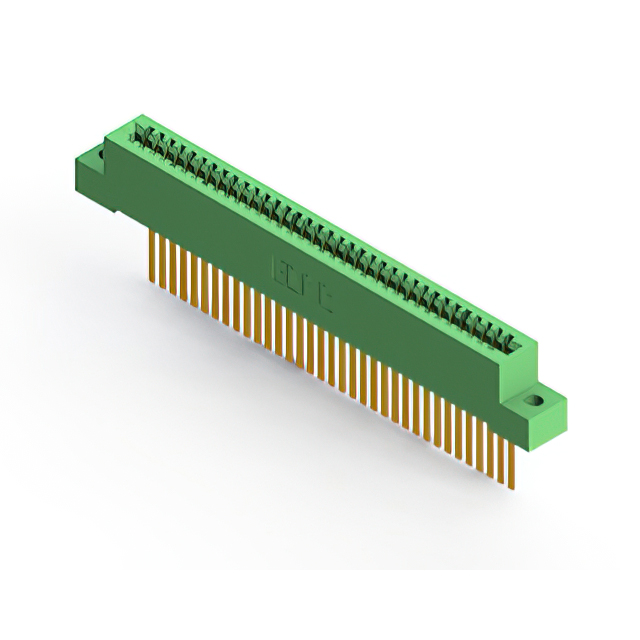

EDAC Inc. 842-035-544-102	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Wire Wrap	1
EDAC Inc. 842-035-541-104	1	Diallyl Phthalate (DAP)	35	Female	Non Specified - Single Edge	Copper Alloy	35	Through Hole	Gold	Green	Single	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Wire Wrap	1
