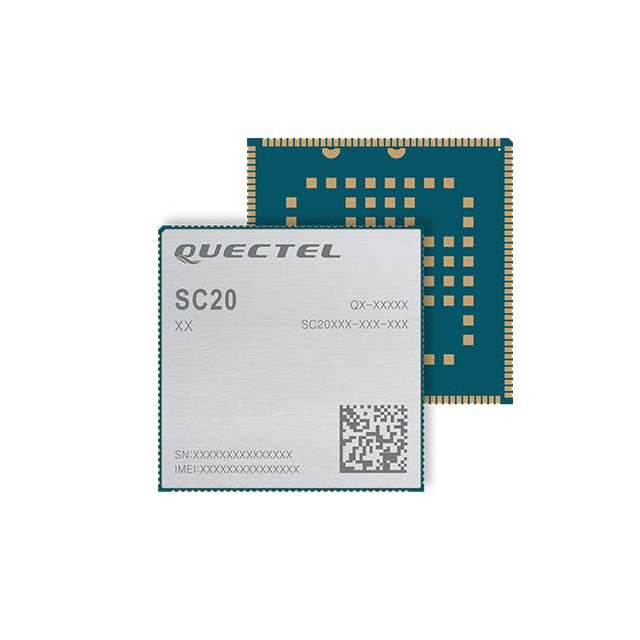

SC20 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MOD BT CELL NAV WIFISMD
| Part | Package / Case | Mounting Type | Antenna Type | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Protocol | Data Rate | Voltage - Supply [Min] | Voltage - Supply [Max] | RF Family/Standard | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | Module | Surface Mount | Antenna Not Included | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 800 MHz 900 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | |
Quectel | Module | Surface Mount | Antenna Not Included | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 800 MHz 900 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
Quectel | Module | Surface Mount | Antenna Not Included | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 800 MHz 900 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | |
Quectel | Module | Surface Mount | Antenna Not Included | 2.4 GHz 5 GHz | 75 ░C | -35 °C | 802.11a/b/g/n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 | 3.5 V | 4.2 V | Bluetooth WiFi | Qualcomm® Snapdragon MSM8909-2 | |
Quectel | Module | Surface Mount | Antenna Not Included | 1.9 GHz 2.4 GHz 5 GHz 850 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
Quectel | Module | Surface Mount | Antenna Not Included | 1.9 GHz 2.4 GHz 5 GHz 850 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
 Quectel | Module | Surface Mount | Antenna Not Included | 2.4 GHz 5 GHz | 75 ░C | -35 °C | 802.11a/b/g/n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 | 3.5 V | 4.2 V | Bluetooth WiFi | Qualcomm® Snapdragon MSM8909-2 | |
Quectel | Module | Surface Mount | Antenna Not Included | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 800 MHz 900 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
Quectel | Module | Surface Mount | Antenna Not Included | 1.9 GHz 2.4 GHz 5 GHz 850 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
Quectel | Module | Surface Mount | Antenna Not Included | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 800 MHz 900 MHz | 75 ░C | -35 °C | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 150 Mbps | 3.5 V | 4.2 V | Bluetooth Cellular Navigation WiFi | Qualcomm® Snapdragon MSM8909-2 |
