CVH252009 Series

Catalog

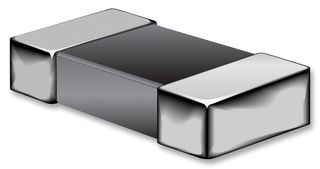

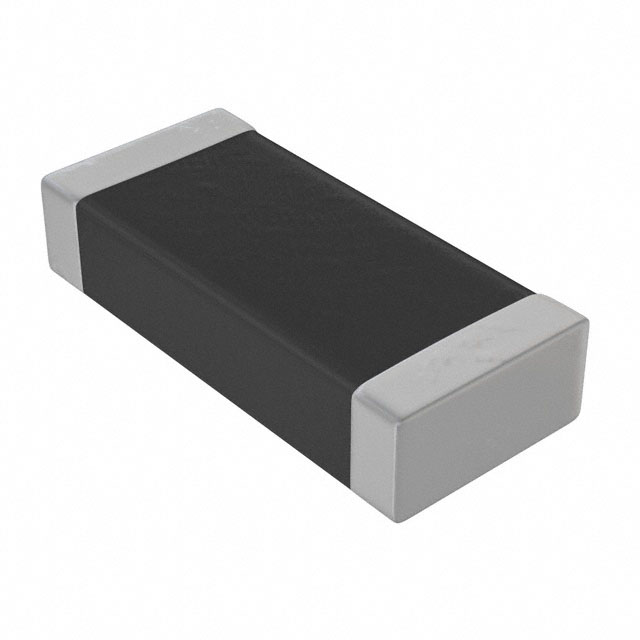

INDUCTOR POWER CHIP SHIELDED MULTI-LAYER 2.2UH 20% 1MHZ FERRITE 1.3A 0.08OHM DCR 1008 T/R

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Tolerance	Shielding	Inductance Frequency - Test	Frequency - Self Resonant	Type	Mounting Type	Supplier Device Package	Supplier Device Package	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	DC Resistance (DCR)
Bourns Inc. CVH252009-2R2M	-55 C	125 °C	2520 Metric	1008	80 mOhm	20 %	Shielded	1 MHz	40 MHz	Multilayer	Surface Mount	2520 Metric	1008	2.2 µH	2.5 mm	0.079 in	0.098 in	2 mm	1.3 A	0.039 in	1 mm	Ferrite
Bourns Inc. CVH252009-3R3M	-55 C	125 °C	2520 Metric	1008		20 %	Shielded	1 MHz	30 MHz	Multilayer	Surface Mount	2520 Metric	1008	3.3 µH	2.5 mm	0.079 in	0.098 in	2 mm	1.2 A	0.039 in	1 mm	Ferrite	100 mOhm
Bourns Inc. CVH252009-R47M	-55 C	125 °C	2520 Metric	1008		20 %	Shielded	1 MHz	100 MHz	Multilayer	Surface Mount	2520 Metric	1008	470 nH	2.5 mm	0.079 in	0.098 in	2 mm	1.8 A	0.039 in	1 mm	Ferrite	40 mOhm
Bourns Inc. CVH252009-4R7M	-55 C	125 °C	2520 Metric	1008		20 %	Shielded	1 MHz	25 MHz	Multilayer	Surface Mount	2520 Metric	1008	4.7 ÁH	2.5 mm	0.079 in	0.098 in	2 mm	1.1 A	0.039 in	1 mm	Ferrite	110 mOhm
Bourns Inc. CVH252009-1R5M	-55 C	125 °C	2520 Metric	1008		20 %	Shielded	1 MHz	50 MHz	Multilayer	Surface Mount	2520 Metric	1008	1.5 µH	2.5 mm	0.079 in	0.098 in	2 mm	1.5 A	0.039 in	1 mm	Ferrite	70 mOhm
