B72280B Series

Catalog

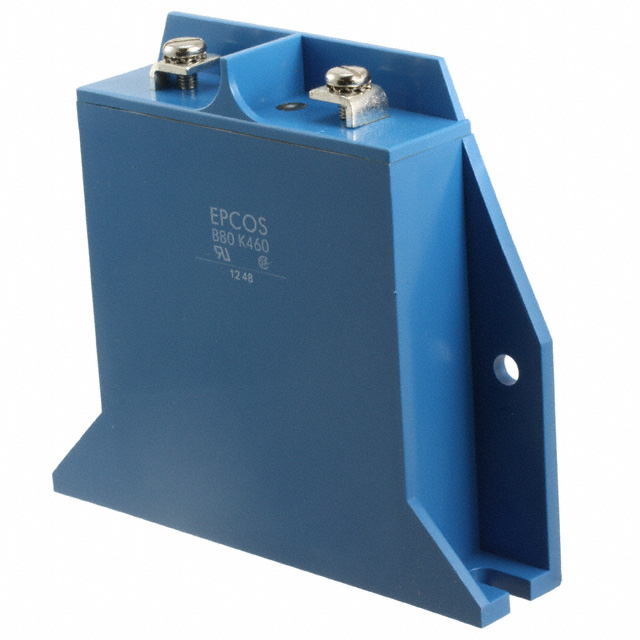

VARISTOR 715V 100KA ENCASED DISC

Part	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Mounting Type	Varistor Voltage (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Number of Circuits	Varistor Voltage (Typ)	Energy	Maximum DC Volts [Max]	Varistor Voltage (Max)
EPCOS - TDK Electronics B72280B0441K001	440 V	786.5 V	8100 pF	Chassis Mount	643.5 V	Encased Disc	85 C	-40 ¯C	100 kA	1	715 V	2350 J	585 V
EPCOS - TDK Electronics B72280B0381K001	385 V		1 kHz 9000 pF	Chassis Mount	558 V	Encased Disc	85 C	-40 ¯C	100 kA	1	620 V	2000 J	505 V
EPCOS - TDK Electronics B72280B0461K001	460 V	825 V		Chassis Mount	675 V	Encased Disc	85 C	-40 ¯C	100 kA	1	750 V	2500 J	615 V
EPCOS - TDK Electronics B72280B0551K001	550 V	1.001 kV	1 kHz 6500 pF	Chassis Mount	819 V	Encased Disc	85 C	-40 ¯C	100 kA	1	910 V	3100 J	745 V
EPCOS - TDK Electronics B72280B0131K001	130 V	225.5 V	28000 pF	Chassis Mount	184.5 V	Encased Disc	85 C	-40 ¯C	100 kA	1	205 V	660 J	170 V
EPCOS - TDK Electronics B72280B0231K001	230 V	396 V	16000 pF	Chassis Mount	324 V	Encased Disc	85 C	-40 ¯C	100 kA	1	360 V	1200 J	300 V
EPCOS - TDK Electronics B72280B0421K001	420 V	748 V	1 kHz 8500 pF	Chassis Mount	612 V	Encased Disc	85 C	-40 ¯C	100 kA	1	680 V	2200 J	560 V
EPCOS - TDK Electronics B72280B0271K001	275 V		13000 pF	Chassis Mount	387 V	Encased Disc	85 C	-40 ¯C	100 kA	1	430 V	1400 J	350 V	473 V
