951204 Series
Manufacturer: 3M (TC)
Beta
⌘K

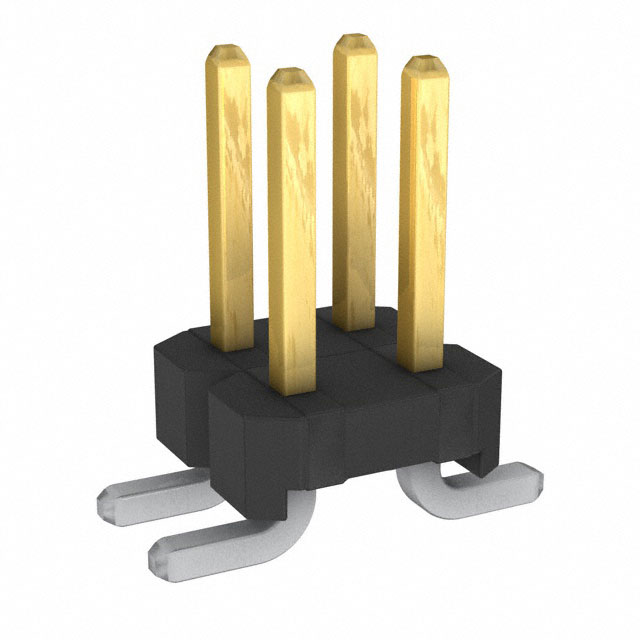

CONN HEADER SMD 4POS 2MM
| Part | Insulation Color | Contact Shape | Number of Positions | Mounting Type | Pitch - Mating [x] | Pitch - Mating [x] | Connector Type | Shrouding | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Type | Contact Material | Contact Length - Mating | Contact Length - Mating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Contact Finish - Mating | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Black | Square | 4 | Surface Mount | 0.079 in | 2 mm | Header | Unshrouded | All | Flash | Male Pin | Copper Alloy | 4 mm | 0.157 in | Thermoplastic | -25 °C | 105 ░C | 2 | Push-Pull | 0.06 in | 1.52 mm | Tin | Gold | UL94 V-0 | 1 çm | 39.4 çin | Solder | 0.079 in | 2 mm |
