TMAG5115 Series

High-speed Hall-effect latch with low jitter (fast response)

Catalog

High-speed Hall-effect latch with low jitter (fast response)

Part	Current - Output (Max) [Max]	Mounting Type	Function	Test Condition [Min]	Test Condition [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Sensing Range	Technology	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Package / Case	Polarization

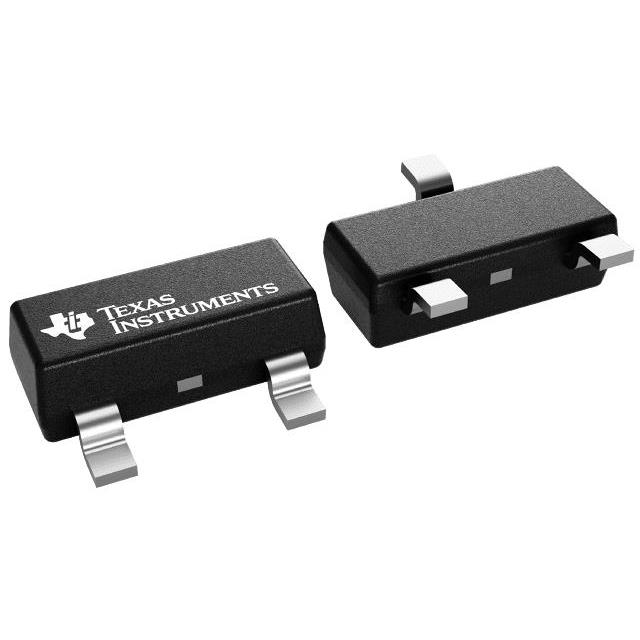

Texas Instruments TMAG5115A1CQDBZR	15 mA	Surface Mount	Latch	-40 °C	125 °C	Temperature Compensated	-40 °C	125 °C	Open Drain	-1.7 mT 1.7 mT	Hall Effect	8 mA	26 V	2.5 V	SOT-23-3	SC-59 SOT-23-3 TO-236-3	North Pole South Pole
Texas Instruments TMAG5115B1CQDBZR	15 mA	Surface Mount	Latch	-40 °C	125 °C	Temperature Compensated	-40 °C	125 °C	Open Drain	-4 mT 4 mT	Hall Effect	8 mA	26 V	2.5 V	SOT-23-3	SC-59 SOT-23-3 TO-236-3	North Pole South Pole

Catalog

High-speed Hall-effect latch with low jitter (fast response)

Key Features

• High-speed digital bipolar-latch Hall sensorLow propagation delay: 5µsLow jitter: 5µsBandwidth (BW): 60kHzSupports a wide voltage range:2.5V to 26VNo external regulator requiredFast power-on time: 62.5µsHigh precision thresholds:±3mT with ±1mT maximum variation±1mT with ±0.7mT maximum variationProtection features:Output short-circuit protectionOutput current limitationOvertemperature protectionOpen-drain output (15mA sink)Wide operating temperature range:–40°C to 125°CSmall package and footprint:Surface mount 3-pin SOT-232.92mm × 2.37mmHigh-speed digital bipolar-latch Hall sensorLow propagation delay: 5µsLow jitter: 5µsBandwidth (BW): 60kHzSupports a wide voltage range:2.5V to 26VNo external regulator requiredFast power-on time: 62.5µsHigh precision thresholds:±3mT with ±1mT maximum variation±1mT with ±0.7mT maximum variationProtection features:Output short-circuit protectionOutput current limitationOvertemperature protectionOpen-drain output (15mA sink)Wide operating temperature range:–40°C to 125°CSmall package and footprint:Surface mount 3-pin SOT-232.92mm × 2.37mm

Description

The TMAG5115 device is a high-performance Hall-effect latch sensor with fast propagation delay and low jitter. The device also has high sensitivity stability over temperature and offers integrated protection features designed for applications that require high RPM. The combination of low jitter and low propagation delay can help increase power efficiency and reduce parasitic system-level noise. The device has an open-drain output stage with 15mA current sink capability. The TMAG5115 wide operating voltage range of 2.5V to 26V is designed for a wide range of industrial and commercial applications. Internal protection functions are provided for output short-circuit, overcurrent, and overtemperature conditions. The TMAG5115 is available in the industry standard SOT-23 package. The TMAG5115 device is a high-performance Hall-effect latch sensor with fast propagation delay and low jitter. The device also has high sensitivity stability over temperature and offers integrated protection features designed for applications that require high RPM. The combination of low jitter and low propagation delay can help increase power efficiency and reduce parasitic system-level noise. The device has an open-drain output stage with 15mA current sink capability. The TMAG5115 wide operating voltage range of 2.5V to 26V is designed for a wide range of industrial and commercial applications. Internal protection functions are provided for output short-circuit, overcurrent, and overtemperature conditions. The TMAG5115 is available in the industry standard SOT-23 package.
