725-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K

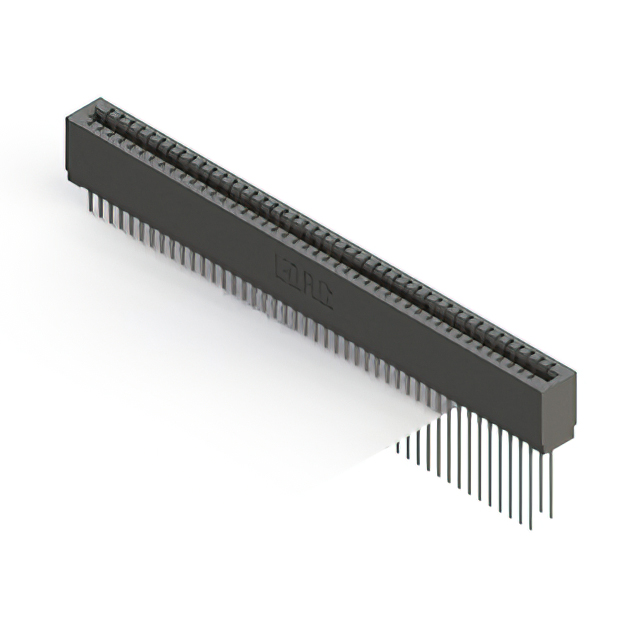

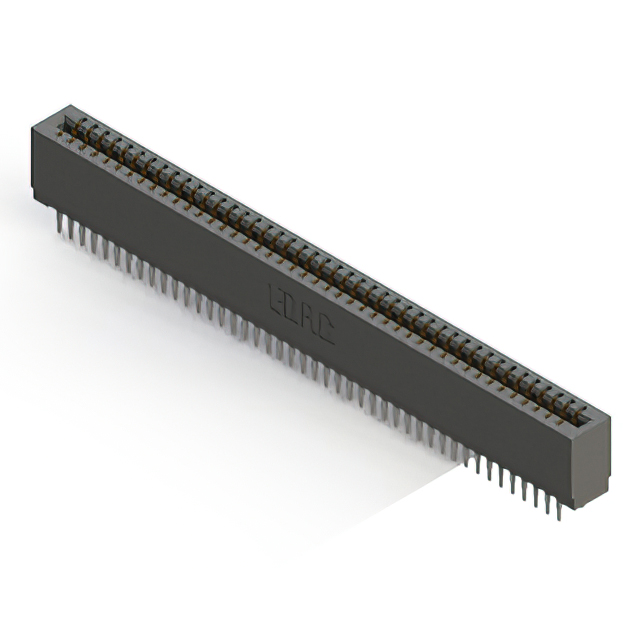

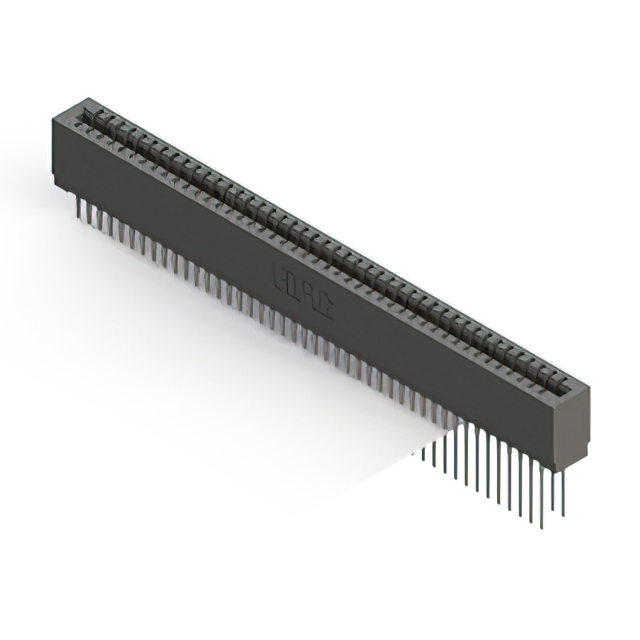

CONN EDGE DUAL FMALE 88POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Color | Contact Material | Read Out | Gender | Number of Positions/Bay/Row | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | Press-Fit Wire Wrap | 88 | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Black | Copper Alloy | Dual | Female | 44 | Through Hole |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | Press-Fit | 88 | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Black | Copper Alloy | Dual | Female | 44 | Through Hole |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | Press-Fit Wire Wrap | 88 | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Black | Copper Alloy | Dual | Female | 44 | Through Hole |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever Make Before Break | Press-Fit | 88 | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Black | Copper Alloy | Dual | Female | 44 | Through Hole |
