WR9QA3600 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 18W

Part	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Type	No Load Power Consumption	Form	Approval Agency	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Efficiency	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Voltage - Output	Applications	Polarization	Output Connector [diameter]	Output Connector [x]	Standard Number

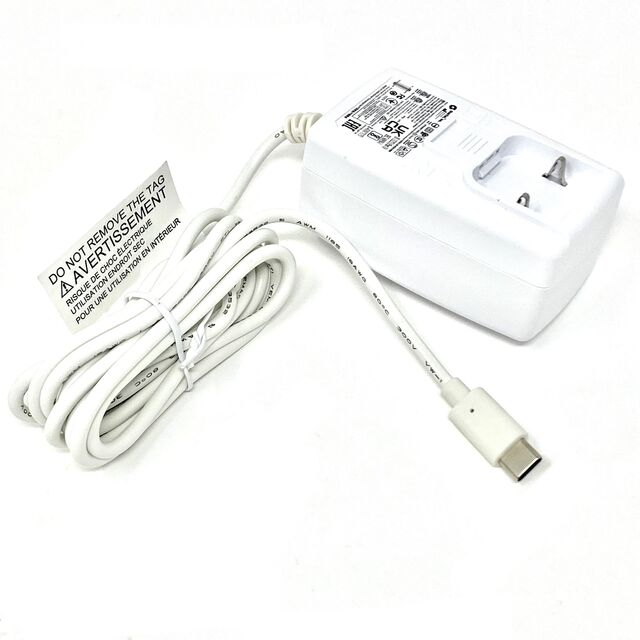

GlobTek, Inc. WR9QA3600USBC-CIMR6W	USB C USB C Receptacle	264 VAC	90 VAC	International	Multi-Blade (Sold Separately)	75 mW	Wall Mount	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade	-20 ░C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	3.6 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	18 W	5 V	Household Appliances ITE (Commercial) Medical

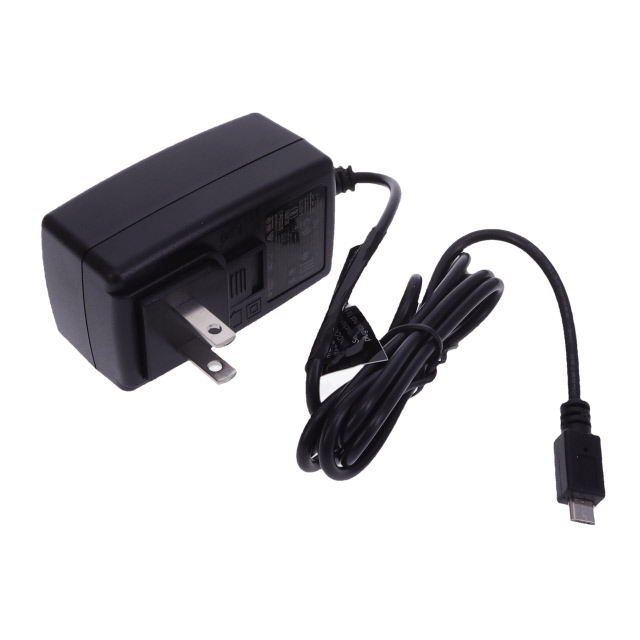

GlobTek, Inc. WR9QA3600MICBCMNAR6B	USB Micro	264 VAC	90 VAC	International	Multi-Blade (Sold Separately)	75 mW	Wall Mount	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	-10 °C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	3.46 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	18 W	5.2 V	ITE (Commercial) Medical
GlobTek, Inc. WR9QA3600YL4CIMR6B	Power DIN 4 Pin	264 VAC	90 VAC	International	Multi-Blade (Sold Separately)	75 mW	Wall Mount	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade	-20 ░C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	3.6 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	18 W	5 V	Household Appliances ITE (Commercial) Medical	Positive Center

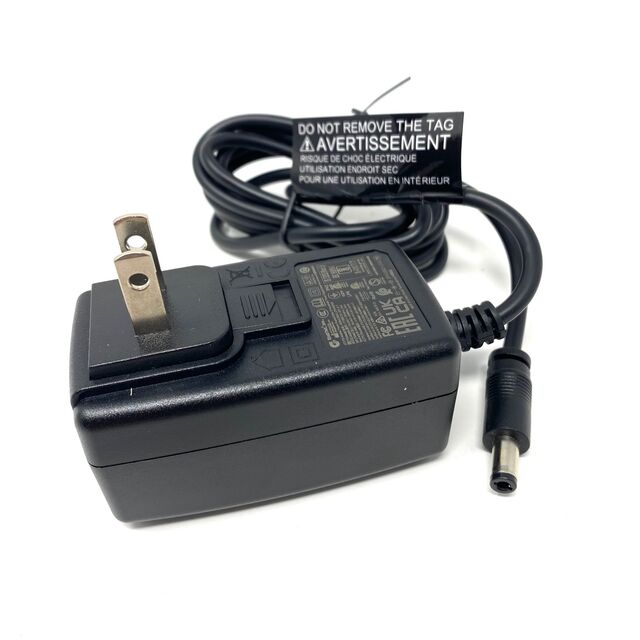

GlobTek, Inc. WR9QA3600LCPNAIMR6B	Barrel Plug	264 VAC	90 VAC	International	Multi-Blade (Sold Separately)	75 mW	Wall Mount	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	-20 ░C	40 °C	1.2 m	47.2 in	CoC Tier 2 Level VI	3.6 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	18 W	5 V	Household Appliances ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	11 mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
