5970-2 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Termination

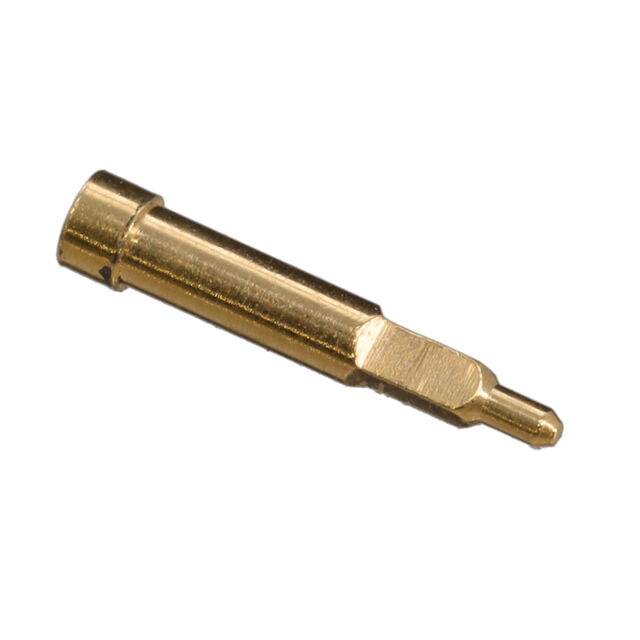

Mill-Max Manufacturing Corp. 5970-2-15-15-32-14-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.32 in	8.13 mm	0.018 in	0.45 mm	Beryllium Copper	0.025 in	0.64 mm	0.25 Ám	10 Áin	0.039 in	0.99 mm	Gold	1.57 mm	0.062 in	Standard Tail	Press-Fit
Mill-Max Manufacturing Corp. 5970-2-15-80-32-84-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.32 in	8.13 mm	0.018 in	0.45 mm	Beryllium Copper	0.025 in	0.64 mm	2.54 µm	100 µin	0.039 in	0.99 mm	Tin	1.57 mm	0.062 in	Standard Tail	Press-Fit
Mill-Max Manufacturing Corp. 5970-2-15-01-32-02-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.32 in	8.13 mm	0.175 "	4.45 mm	Beryllium Copper	0.025 in	0.64 mm	2.54 µm	100 µin	0.039 in	0.99 mm	Tin-Lead	1.57 mm	0.062 in	Standard Tail	Press-Fit
Mill-Max Manufacturing Corp. 5970-2-15-01-32-27-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.32 in	8.13 mm	0.175 "	4.45 mm	Beryllium Copper	0.025 in	0.64 mm	0.76 Ám	30 Áin	0.039 in	0.99 mm	Gold	1.57 mm	0.062 in	Standard Tail	Press-Fit
