306-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

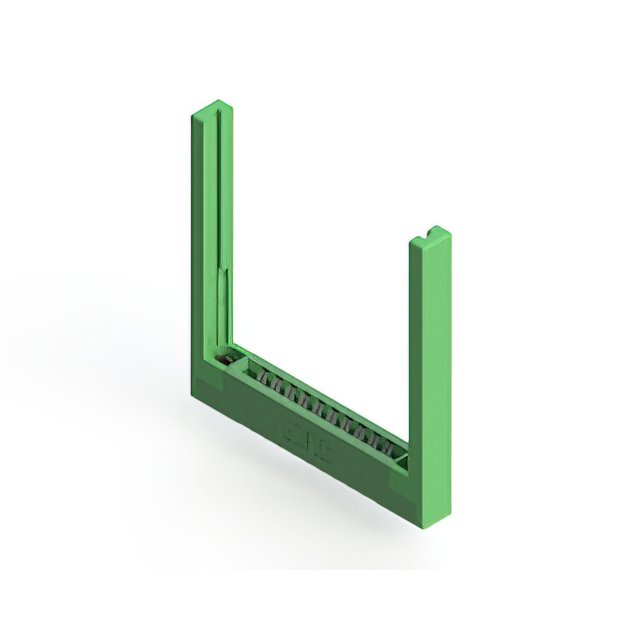

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Termination | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Flange Feature | Gender | Number of Rows [custom] | Number of Positions | Contact Finish | Contact Material | Number of Positions/Bay/Row | Pitch | Pitch | Read Out | Color | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

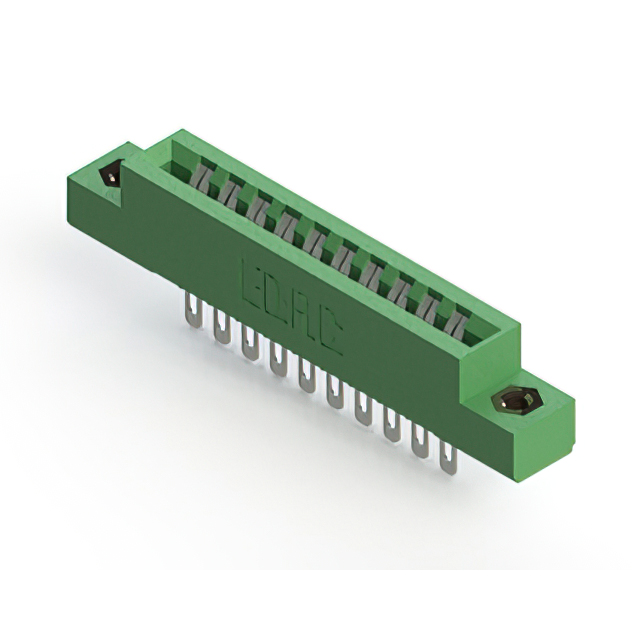

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | Card Guides | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 2 | 20 | Gold | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | |||||

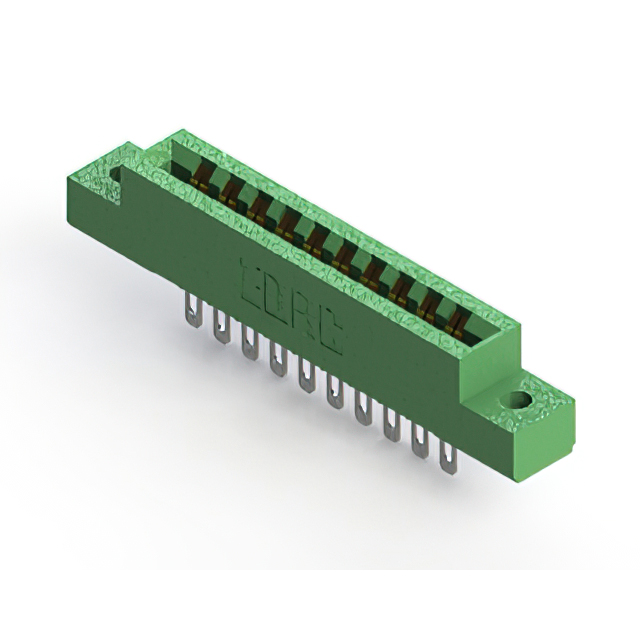

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | 0.128 " | 3.25 mm | |||

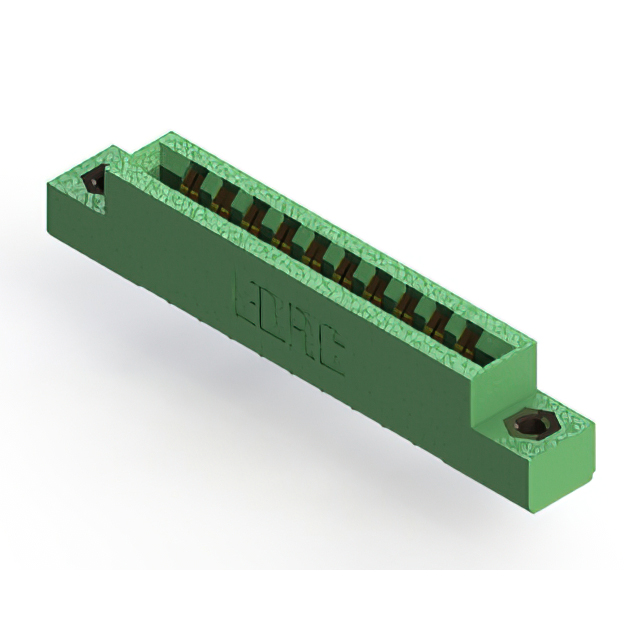

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | |||||

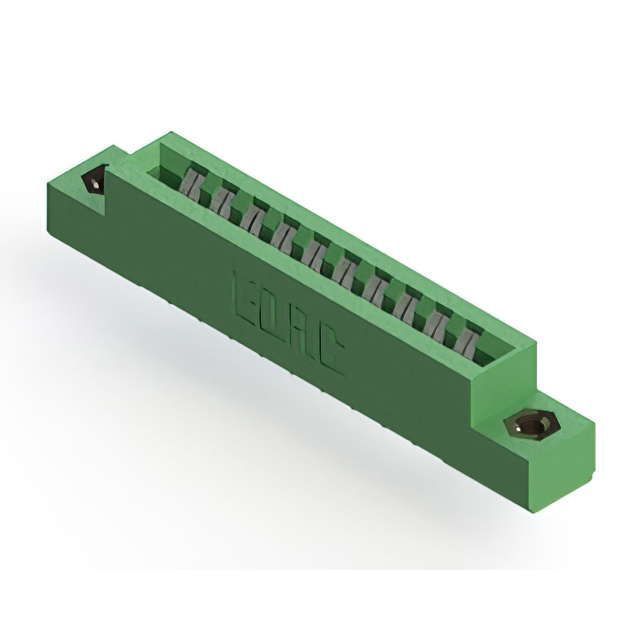

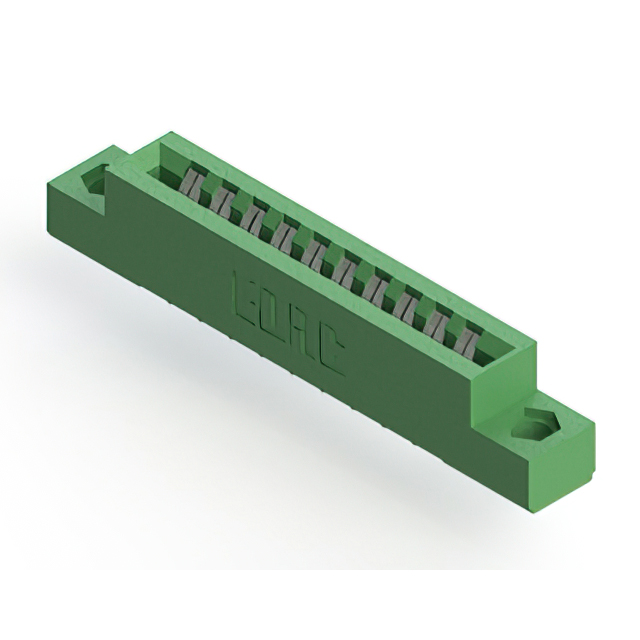

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder Eyelet(s) | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | |||||

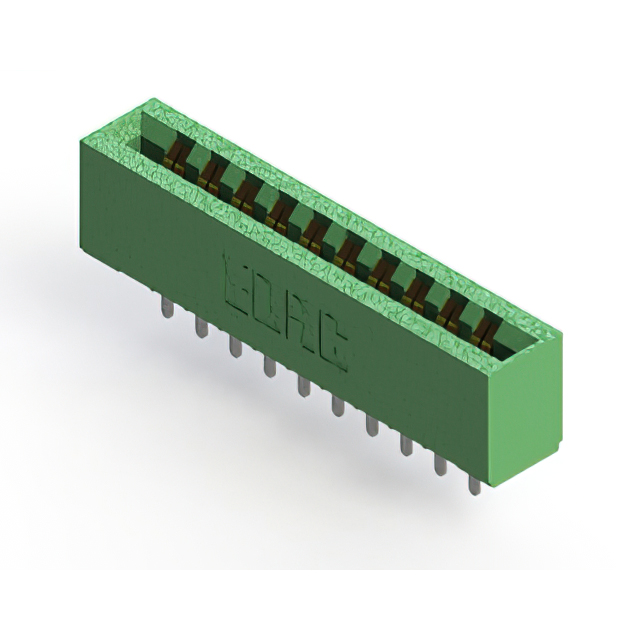

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Female | 2 | 20 | Gold | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | ||||

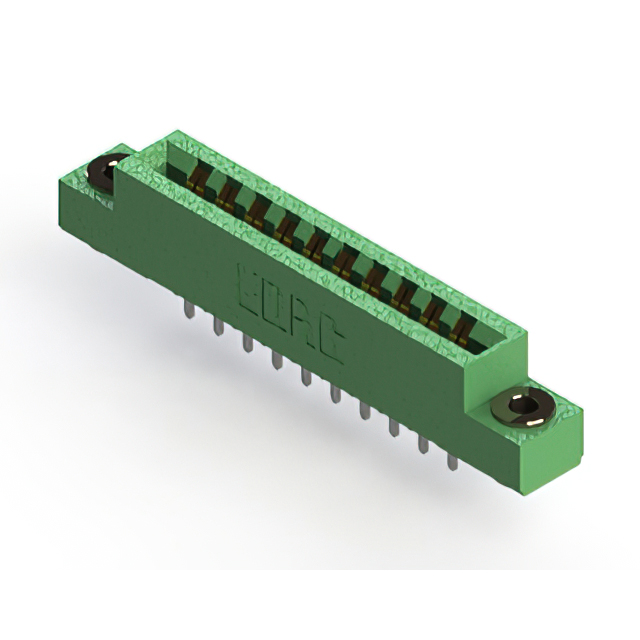

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Floating Bobbin Flush Mount | Female | 2 | 20 | Gold | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Female | 2 | 20 | Gold | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever | 0.156 " | 3.96 mm | |||||

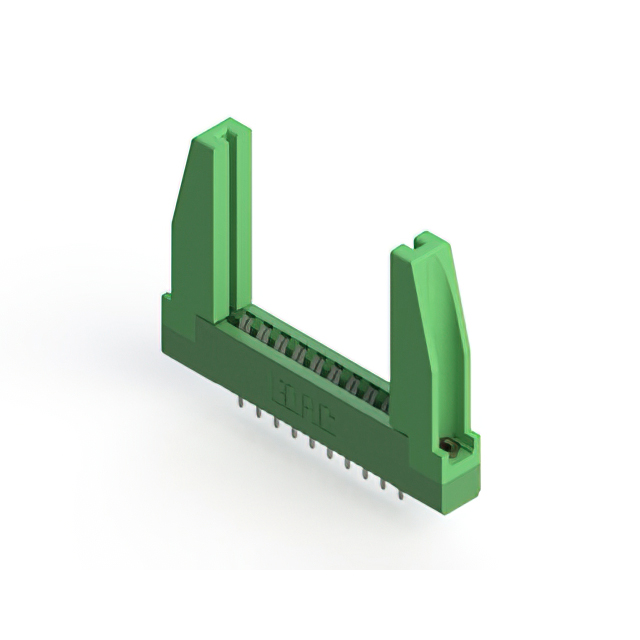

 EDAC Inc. | Polyester Thermoplastic | 1 | Solder | Non Specified - Dual Edge | -40 C | 105 ░C | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 2 | 20 | Tin | Copper Alloy | 10 | 3.96 mm | 0.156 in | Dual | Green | Cantilever |
