R12451 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

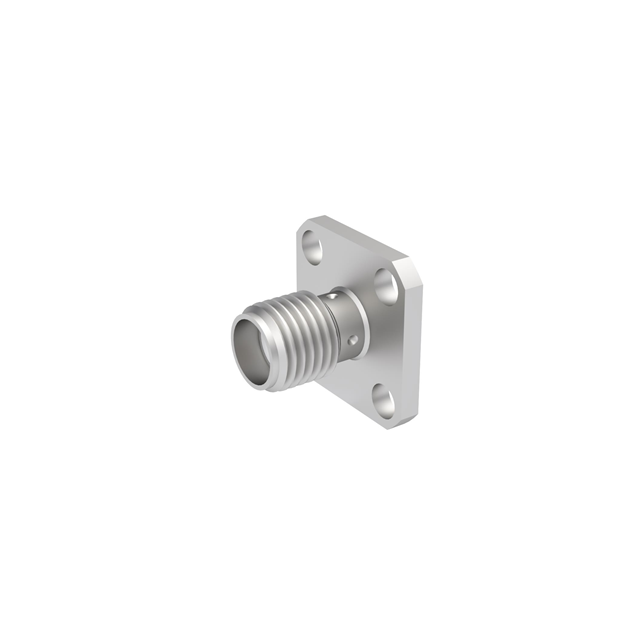

SMA / SQUARE FLANGE JACK RECEPTA
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Body Finish | Body Material | Contact Termination | Frequency - Max [Max] | Mounting Type | Fastening Type | Center Contact Material | Number of Ports | Connector Type | Housing Color | Connector Style | Impedance | Shield Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | Solder Tab | 18 GHz | Panel Mount Through Hole | Threaded | Beryllium Copper | 1 | Female Socket Jack | Silver | SMA | 50 Ohms | Solder | Flange |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | Solder Tab | 18 GHz | Panel Mount Through Hole | Threaded | Beryllium Copper | 1 | Female Socket Jack | Silver | SMA | 50 Ohms | Solder | Flange |
