SPMWH1229 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

Catalog

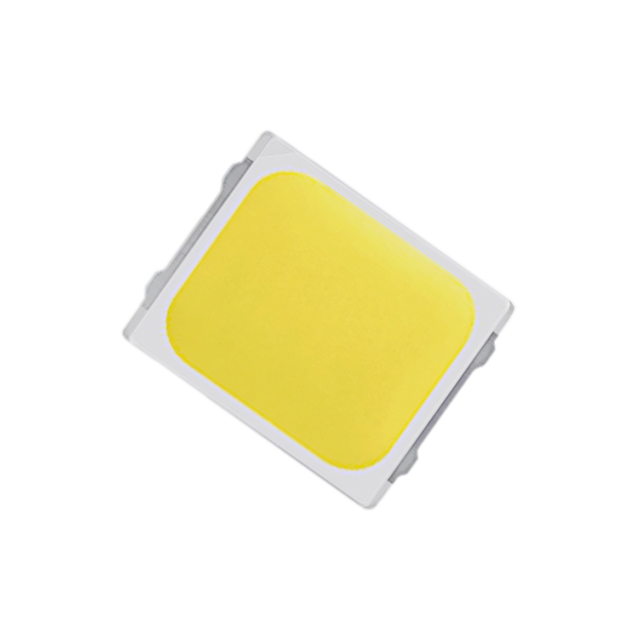

LED LM283B NEUT WHT 4000K 2835

...

Part	Thermal Resistance of Package	CCT (K)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Supplier Device Package	Current - Max [Max]	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Package / Case
Samsung Semiconductor, Inc. SPMWH1229AD7SGTMSB	15 °C/W	4000 K	9.4 V	120 °	115 lm	105 lm	110 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Neutral White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	90	117 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AQ5SGVMSA	15 °C/W	3000 K	9.4 V	120 °	115 lm	107 lm	111 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80	118 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AD5SGQ0SA	15 °C/W	5700 K		120 °			118 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80		1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AQ7SGP0SA		6500 K	9 V		103 lm	96 lm	100 lm	0.03 "	0.75 mm	100 mA	2835		Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	90	111 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AD5SGVKSB	15 °C/W	3000 K	9.4 V	120 °	120 lm	110 lm	115 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80	122 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AQ5SGP0SA	15 °C/W	6500 K	9.4 V	120 °	121 lm	113 lm		0.03 "	0.75 mm	100 mA	2835	110 mA	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80	125 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AD7SGP0SA	15 °C/W	6500 K	9.4 V	120 °	104 lm	94 lm	99 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	90	105 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AD5SGW0SA	15 °C/W	2700 K	9.4 V	120 °			103 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80	110 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AD7SGU0SB	15 °C/W	3500 K	9.4 V	120 °	114 lm	104 lm	109 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	90	116 lm/W	1113 (2835 Metric)
Samsung Semiconductor, Inc. SPMWH1229AQ5SGTMSB	15 °C/W	4000 K	9.4 V	120 °	131 lm	121 lm	126 lm	0.03 "	0.75 mm	100 mA	2835	110 mA	Neutral White	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	80	134 lm/W	1113 (2835 Metric)
