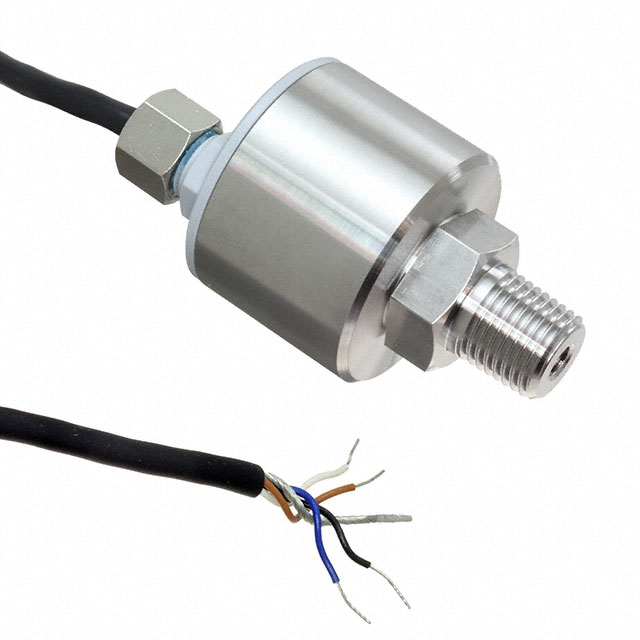

PA-858 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
INDUSTRIAL PRESSURE SENSORS 0 ~ 350 KPA, GAUGE, 4 ~ 20MA OUTPUT CURRENT, IP65, CORROSIVE GASES/LIQUIDS, 0.06% F.S./CELSIUS THERMAL ERROR, G 1/4 WITH M5 FEMALE SCREW PRESSURE PORT, CABLE LEAD
| Part | Operating Pressure | Operating Pressure | Pressure Type | Applications | Voltage - Supply | Port Size | Output [Min] | Output [Max] | Maximum Pressure [Max] | Maximum Pressure [Max] | Port Style | Features | Output Type | Termination Style | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 3.5 bar | 50.76 PSI | Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | 700 kPa | 101.53 PSI | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | ||
 Nidec Components Corporation | 3.5 bar | 50.76 PSI | Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | 700 kPa | 101.53 PSI | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | ||
Nidec Components Corporation | 1 bar | 14.5 PSI | Vented Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa | ||
Nidec Components Corporation | 1 bar | 14.5 PSI | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa | |||
Nidec Components Corporation | 1 bar | 14.5 PSI | Vented Gauge | Industrial Automation | 24 V | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa | |||
Nidec Components Corporation | 1 bar | 14.5 PSI | Vented Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa | ||
Nidec Components Corporation | 10 bar | 145.04 PSI | Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | 2000 kPa | 290.08 PSI | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | ||
Nidec Components Corporation | 10 bar | 145.04 PSI | Gauge | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | 2000 kPa | 290.08 PSI | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | ||
Nidec Components Corporation | 1 bar | 14.5 PSI | Industrial Automation | 24 V | Female M5 | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa | |||
Nidec Components Corporation | 1 bar | 14.5 PSI | Gauge | Industrial Automation | 24 V | 4 mA | 20 mA | Threaded | Temperature Compensated | Analog Current | M12 | Cylinder | -20 ░C | 70 °C | 29.01 PSI | 200 kPa |
