Zmsm0 Series Series

Mini Size Snap-acting Switch

Manufacturer: LITTELFUSE

Catalog

Mini Size Snap-acting Switch

Catalog

Mini Size Snap-acting Switch

Part	Switch Function	Operating Force	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Mounting Type	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Circuit	Differential Travel	Differential Travel	Actuator Type	Ingress Protection	Operating Position	Operating Position	Termination Style	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Features
LITTELFUSE ZMSMH0130T11PMC	On-Mom	160 gf	45 gf	85 °C	-40 C	4.8 mm	0.188 in	Through Hole	300000 Cycles	100 mA	12 V	SPDT	0.7 mm	0.027 in	Lever Simulated Roller	IP65 - Dust Tight Water Resistant	0.39 in	9.9 mm	PC Pin	2.57 mm	0.101 "

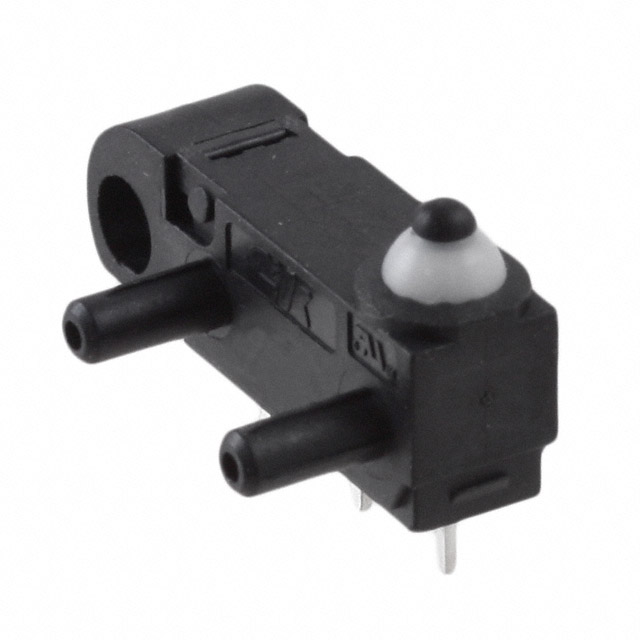

LITTELFUSE ZMSMH3130P00PLC	On-Mom	130 gf	13 gf	85 °C	-40 C	0.8 mm	0.03 "	Through Hole	100000 Cycles	3 A	12 V	SPDT	0.3 mm	0.012 in	Round (Pin Plunger)	IP65 - Dust Tight Water Resistant	0.266 in	6.75 mm	PC Pin	1.7 mm	0.065 "	125 V	Support Posts
LITTELFUSE ZMSMH3130T10PMC	On-Mom	195 gf	55 gf	85 °C	-40 C	3.85 mm	0.152 in	Through Hole	100000 Cycles	3 A	12 V	SPDT	0.5 mm	0.02 in	Lever Straight	IP65 - Dust Tight Water Resistant	0.295 in	7.5 mm	PC Pin	2.14 mm	0.084 "	125 V
LITTELFUSE ZMSMH3130T10SMC	On-Mom	195 gf	55 gf	85 °C	-40 C	3.85 mm	0.152 in	Chassis Mount	100000 Cycles	3 A	12 V	SPDT	0.5 mm	0.02 in	Lever Straight	IP65 - Dust Tight Water Resistant	0.295 in	7.5 mm	Solder Lug	2.14 mm	0.084 "	125 V
LITTELFUSE ZMSMH0130P00SMC	On-Mom	130 gf	13 gf	85 °C	-40 C	0.8 mm	0.03 "	Chassis Mount	300000 Cycles	100 mA	12 V	SPDT	0.3 mm	0.012 in	Round (Pin Plunger)	IP65 - Dust Tight Water Resistant	0.266 in	6.75 mm	Solder Lug	1.7 mm	0.065 "

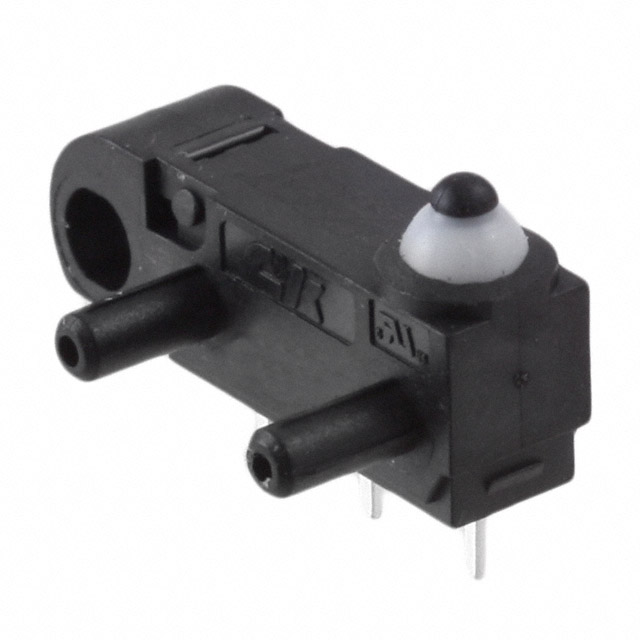

LITTELFUSE ZMSMH0130P00PLC	On-Mom	130 gf	13 gf	85 °C	-40 C	0.8 mm	0.03 "	Through Hole	300000 Cycles	100 mA	12 V	SPDT	0.3 mm	0.012 in	Round (Pin Plunger)	IP65 - Dust Tight Water Resistant	0.266 in	6.75 mm	PC Pin	1.7 mm	0.065 "		Support Posts

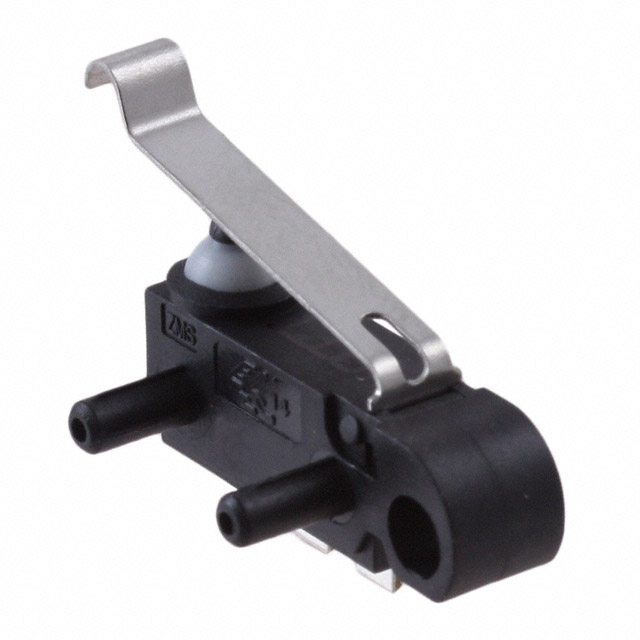

LITTELFUSE ZMSMH3130T11SRC	On-Mom	160 gf	45 gf	85 °C	-40 C	4.8 mm	0.188 in	Chassis Mount	100000 Cycles	3 A	12 V	SPDT	0.7 mm	0.027 in	Lever Simulated Roller	IP65 - Dust Tight Water Resistant	0.39 in	9.9 mm	Solder Lug	2.57 mm	0.101 "	125 V	Support Posts
LITTELFUSE ZMSMH0130T10PMC	On-Mom	195 gf	55 gf	85 °C	-40 C	3.85 mm	0.152 in	Through Hole	300000 Cycles	100 mA	12 V	SPDT	0.5 mm	0.02 in	Lever Straight	IP65 - Dust Tight Water Resistant	0.295 in	7.5 mm	PC Pin	2.14 mm	0.084 "
LITTELFUSE ZMSMH3130T11SMC	On-Mom	160 gf	45 gf	85 °C	-40 C	4.8 mm	0.188 in	Chassis Mount	100000 Cycles	3 A	12 V	SPDT	0.7 mm	0.027 in	Lever Simulated Roller	IP65 - Dust Tight Water Resistant	0.39 in	9.9 mm	Solder Lug	2.57 mm	0.101 "	125 V

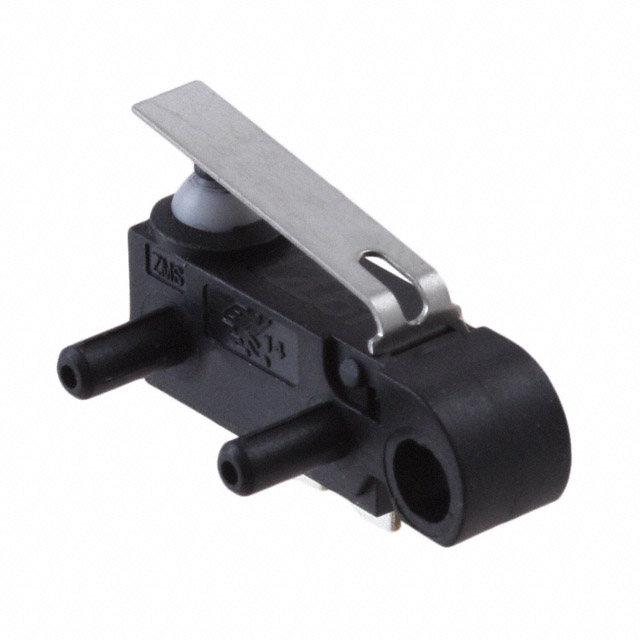

LITTELFUSE ZMSMH3130T10SRC	On-Mom	195 gf	55 gf	85 °C	-40 C	3.85 mm	0.152 in	Chassis Mount	100000 Cycles	3 A	12 V	SPDT	0.5 mm	0.02 in	Lever Straight	IP65 - Dust Tight Water Resistant	0.295 in	7.5 mm	Solder Lug	2.14 mm	0.084 "	125 V	Support Posts
