80136 Series

Catalog

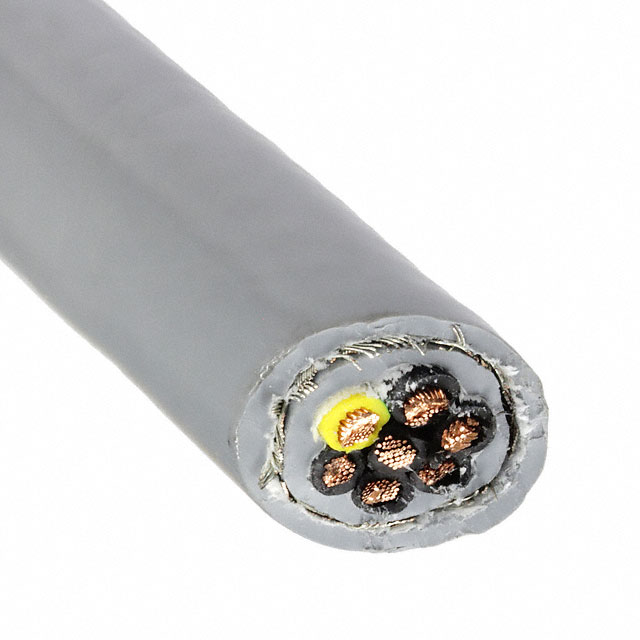

CABLE 7COND 18AWG SLATE SHLD

Part	Shield Coverage	Shield Material	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Shield Type	Conductor Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 80136 SL199	85 %	Copper Tinned	7	18 AWG	41	34	90 °C	-50 °C	Polyphenylene Ether Modified (mPPE)	Braid	Copper Tinned	Polyurethane (PU)	0.813 mm	0.032 in	600 V	Multi-Conductor	Slate	0.299 "	7.6 mm
ALPHA WIRE 80136 SL005	85 %	Copper Tinned	7	18 AWG	41	34	90 °C	-50 °C	Polyphenylene Ether (PPE)	Braid	Copper Tinned	Polyurethane (PU)	0.81 mm	0.0319 in	600 V	Multi-Conductor	Slate	0.286 in	7.26 mm	100 ft	30.5 m
