746-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 40POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mounting Type	Contact Material	Card Type	Number of Positions/Bay/Row	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Rows [custom]	Read Out	Contact Type	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]

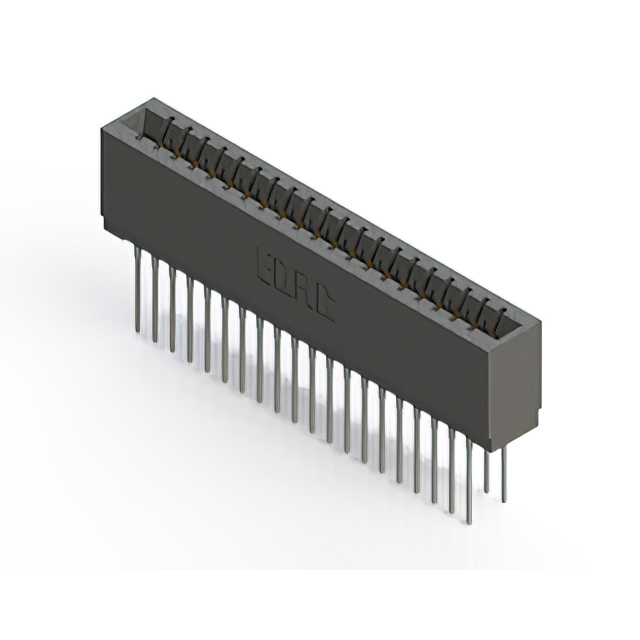

EDAC Inc. 746-040-545-201	Polyester Thermoplastic	2	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Dual Edge	20 Bay/Row	40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	Dual	Cantilever
EDAC Inc. 746-040-520-101	Polyester Thermoplastic		3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Single Edge		40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit		Single	Cantilever	1	1	40

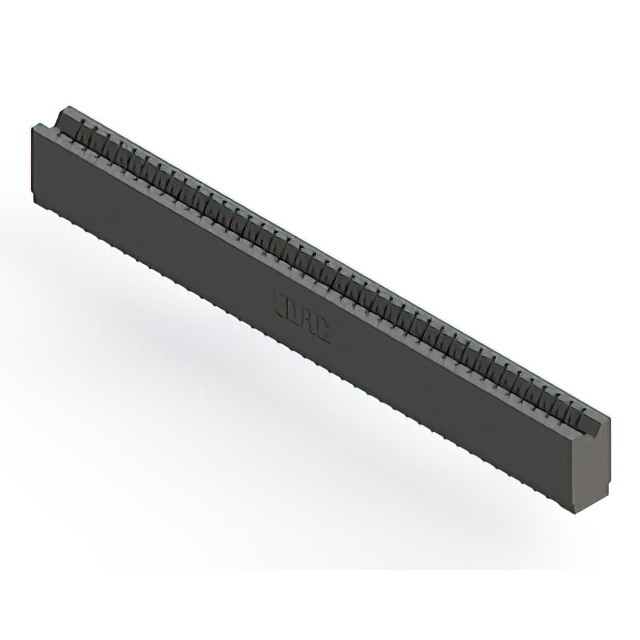

EDAC Inc. 746-040-520-506	Polyester Thermoplastic		3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Single Edge		40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit		Single	Cantilever	1	1	40
EDAC Inc. 746-040-520-106	Polyester Thermoplastic		3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Single Edge		40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit		Single	Cantilever	1	1	40

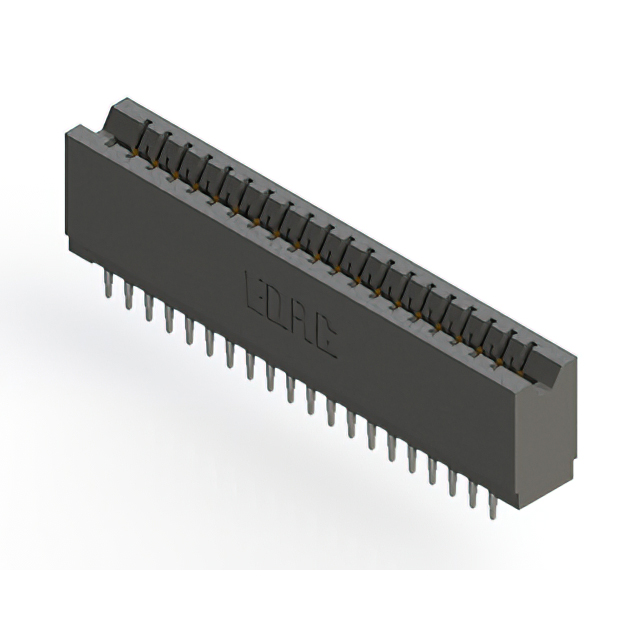

EDAC Inc. 746-040-525-606	Polyester Thermoplastic	2	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Dual Edge	20 Bay/Row	40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	Dual	Cantilever
EDAC Inc. 746-040-553-501	Polyester Thermoplastic		3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Single Edge		40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap		Single	Cantilever	1	1	40
EDAC Inc. 746-040-560-206	Polyester Thermoplastic	2	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Dual Edge	20 Bay/Row	40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	Dual	Cantilever Make Before Break

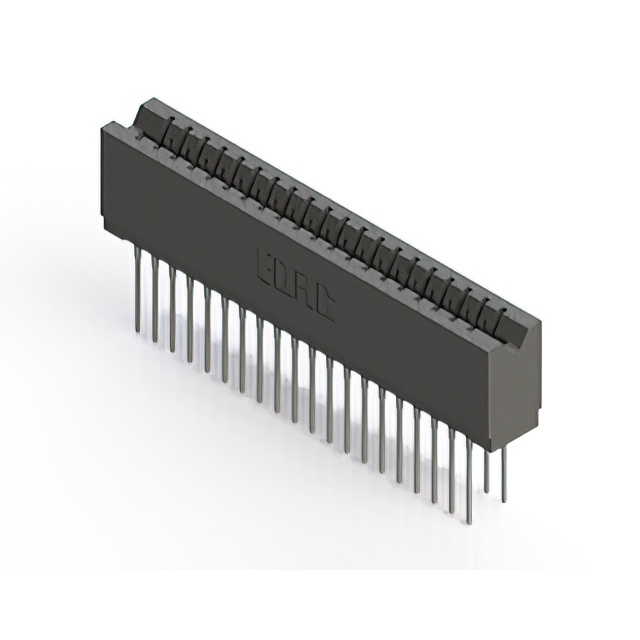

EDAC Inc. 746-040-540-206	Polyester Thermoplastic	2	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Dual Edge	20 Bay/Row	40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	Dual	Cantilever
EDAC Inc. 746-040-545-501	Polyester Thermoplastic		3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Single Edge		40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap		Single	Cantilever	1	1	40

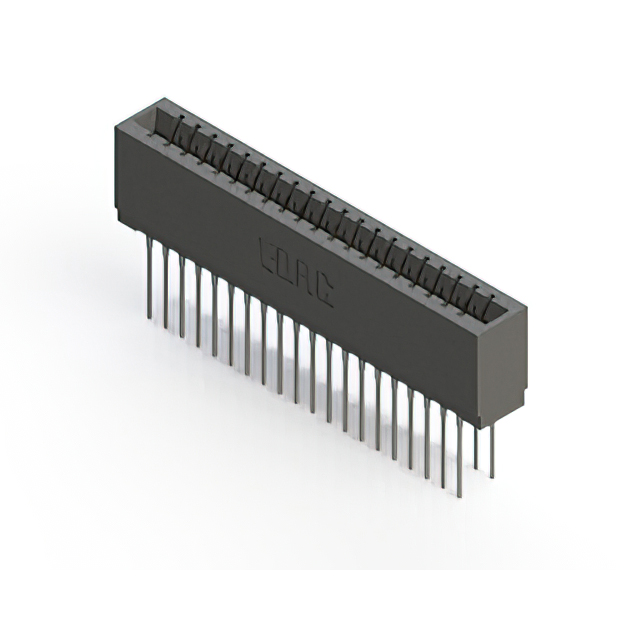

EDAC Inc. 746-040-541-601	Polyester Thermoplastic	2	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Black	-40 C	105 ░C	Female	Through Hole	Copper Alloy	Non Specified - Dual Edge	20 Bay/Row	40	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	Dual	Cantilever
