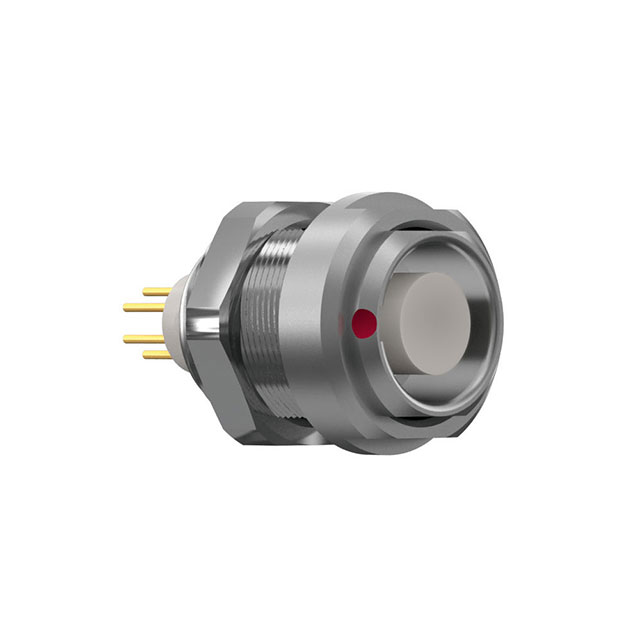

G51L0C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY 5, SZ
| Part | Number of Positions | Connector Type | Shell Size - Insert | Applications | Insert Material | Color | Mounting Type | Orientation | Contact Material | Ingress Protection | Contact Finish - Mating | Voltage Rating | Shell Finish | Current Rating (Amps) | Termination | Features | Primary Material | Fastening Type | Shielding | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount Through Hole | 0 | Brass | IP50 - Dust Protected | Gold | 400 V | Chrome over Nickel | 6 A | Solder | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |
5 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | Chrome over Nickel | 7.5 A | Ground | Metal | Push-Pull | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | ||||
4 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | Chrome over Nickel | 7.5 A | Ground | Metal | Push-Pull | Shielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |||
Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | 333 V | Chrome over Nickel | 15 A | Crimp | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | ||
10 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | Chrome over Nickel | 4 A | Ground | Metal | Push-Pull | Shielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |||
5 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | 333 V | Chrome over Nickel | 10 A | Crimp | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |
14 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount Through Hole | 0 | Brass | IP50 - Dust Protected | Gold | 300 VDC | Chrome over Nickel | 4 A | Solder | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |
2 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | Chrome over Nickel | 12 Amps | Ground | Metal | Push-Pull | Shielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | |||
8 | Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount | 0 | Brass | IP50 - Dust Protected | Gold | 333 V | Chrome over Nickel | 6 A | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass | ||
Receptacle Female Sockets | 1 | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Panel Mount Through Hole | 0 | Brass | IP50 - Dust Protected | Gold | 500 V | Chrome over Nickel | 12 Amps | Solder | Ground | Metal | Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | 120 °C | -40 C | Brass |
