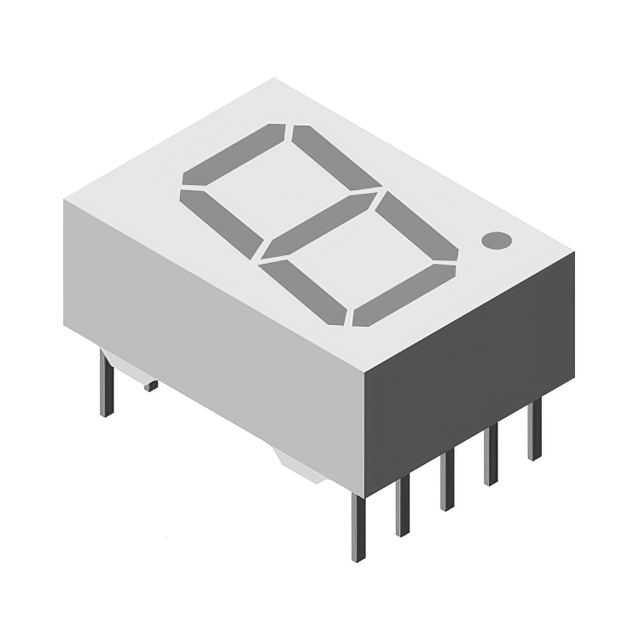

TDSL5160 Series

Catalog

DISPLAY 7SEG 0.51" SGL RED 10DIP

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Test	Display Type	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Millicandela Rating	Color	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Common Pin
Vishay General Semiconductor - Diodes Division TDSL5160	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	2 mA	7-Segment	1	0.51 in	13 mm	635 nm	0.4 mcd	Red	0.6 in	15.24 mm	10-DIP	1.8 V	320 mW	Common Cathode
Vishay General Semiconductor - Diodes Division TDSL5160-GH	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	2 mA	7-Segment	1	0.51 in	13 mm	635 nm	1.4 mcd	Red	0.6 in	15.24 mm	10-DIP	1.8 V	320 mW	Common Cathode
