60S189 Series
Manufacturer: Rosenberger
Beta
⌘K

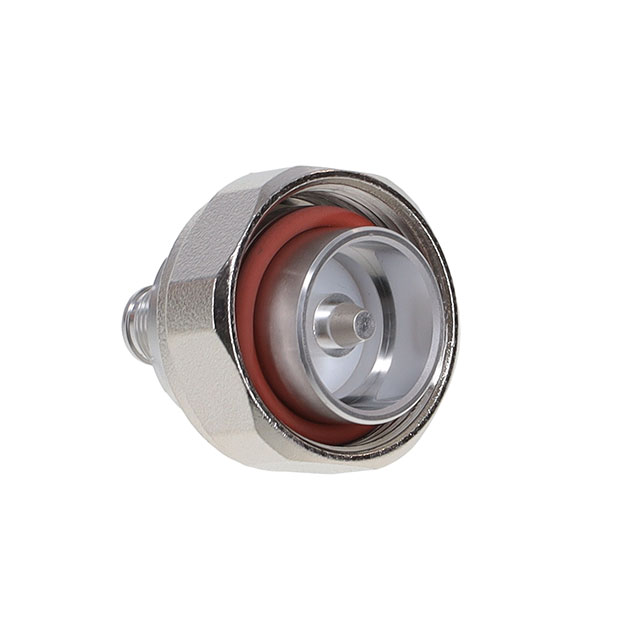

COAX ADAPT 7/16 TO NEX10
| Part | Body Finish | Center Contact Material | Insertion Loss | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mounting Type | Impedance | Adapter Series [Min] | Adapter Series [Max] | Style | Conversion Type | Convert From (Adapter End) | Adapter Type | Fastening Type | Frequency - Max [Max] | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | Beryllium Copper Brass | 0.14 dB | 500 | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Silver | Free Hanging (In-Line) | 50 Ohms | 7/16 | NEX10 | Straight | Between Series | 7/16 Plug Male Pin | Plug to Jack | Snap-On Threaded | 8.3 GHz | NEX10 Jack Female Socket |
