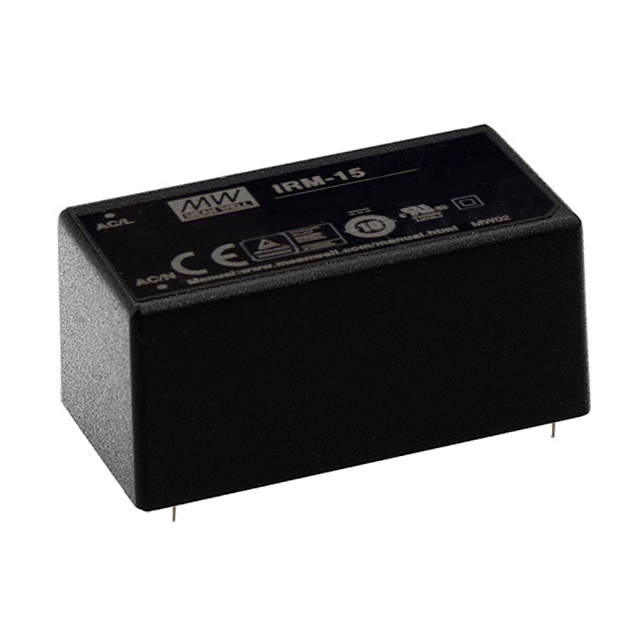

IRM-15 Series

Catalog

AC/DC CONVERTER 3.3V 12W

Part	Load Regulation	Line Regulation	Voltage - Output 1	Mounting Type	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features	Applications	Power (Watts)	Current - Output (Max) [Max]	Type	Load Regulation
MEAN WELL USA Inc. IRM-15-3.3	±1%	0.5 %	3.3 V	Through Hole	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	1	74 %	-30 °C	70 °C	4-DIP Module	Universal Input	ITE (Commercial)	12 W	3.5 A	Enclosed
MEAN WELL USA Inc. IRM-15-5	±1%	0.5 %	5 V	Through Hole	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	1	78 %	-30 °C	70 °C	4-DIP Module	Universal Input	ITE (Commercial)	15 W	3 A	Enclosed
MEAN WELL USA Inc. IRM-15-15		0.3 %	15 V	Through Hole	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	1		-30 °C	70 °C	4-DIP Module	Universal Input	ITE (Commercial)	15 W	1 A	Enclosed	0.5 %
MEAN WELL USA Inc. IRM-15-24		0.3 %	24 V	Through Hole	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	1	83 %	-30 °C	70 °C	4-DIP Module	Universal Input	ITE (Commercial)	15 W	630 mA	Enclosed	0.5 %
MEAN WELL USA Inc. IRM-15-12		0.3 %	12 V	Through Hole	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	1		-30 °C	70 °C	4-DIP Module	Universal Input	ITE (Commercial)	15 W	1.25 A	Enclosed	0.5 %
