887-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

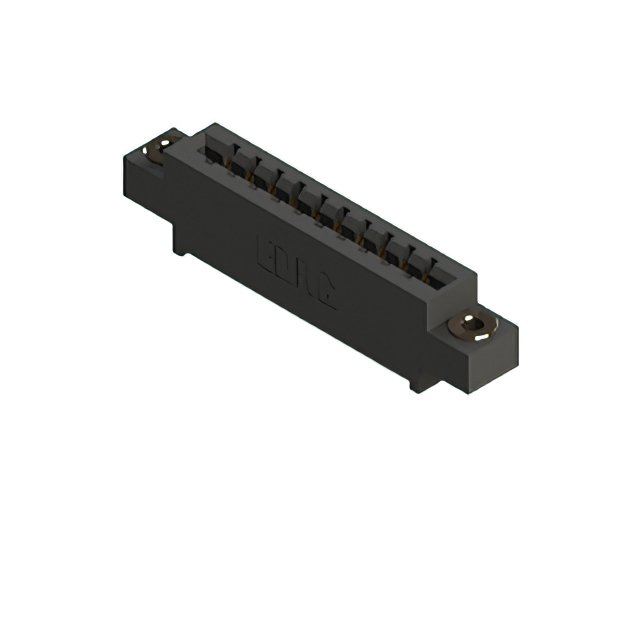

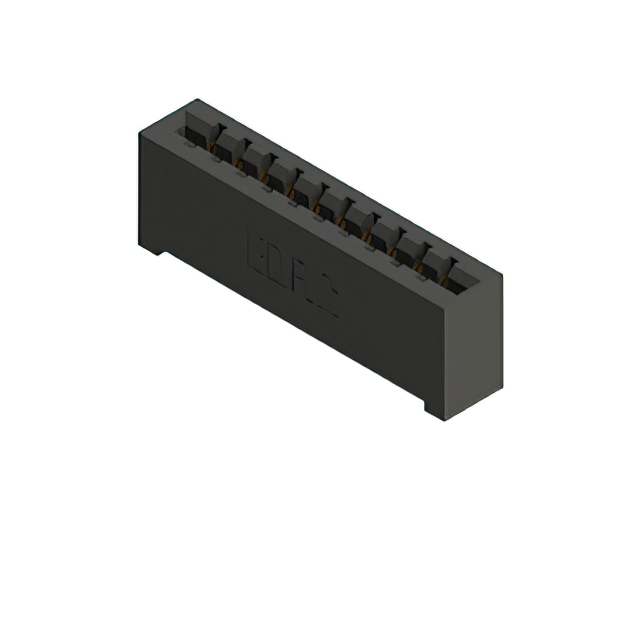

CONN EDGE SGL FMALE 10POS 0.156
| Part | Termination Rows | Material - Insulation | Termination | Gender | Contact Finish | Number of Rows | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Contact Type | Read Out | Number of Positions | Card Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | Female | Gold | 1 | Black | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Female | Gold | 1 | Black | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Female | Gold | 1 | Black | 0.156 " | 3.96 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | Female | Gold | 1 | Black | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Female | Gold | 1 | Black | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Female | Gold | 1 | Black | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Female | Gold | 1 | Black | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Female | Gold | 1 | Black | 0.156 " | 3.96 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Female | Gold | 1 | Black | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Female | Gold | 1 | Black | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | Cantilever | Single | 10 | Non Specified - Single Edge | 3.96 mm | 0.156 in |
