AWP 24 Series

Catalog

CONN SOCKET 24POS IDC GOLD

Part	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Positions	Contact Finish	Pitch	Pitch	Mounting Type	Connector Type	Wire Type	Contact Finish Thickness	Features	Color	Contact Type	Cable Termination

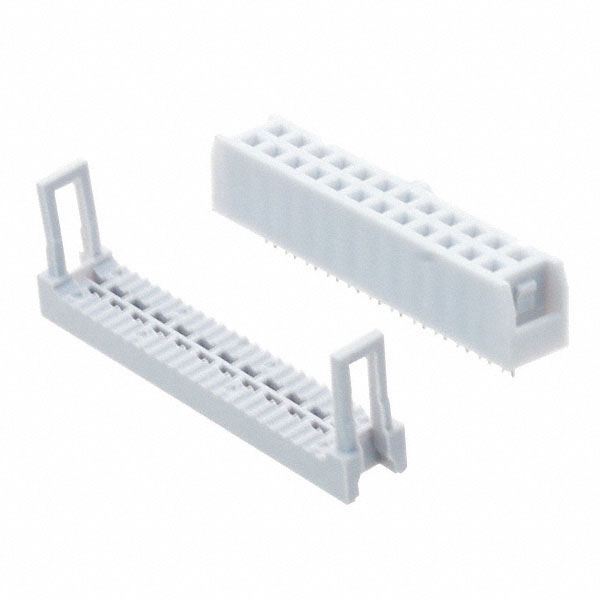

Assmann WSW Components AWP24-7240-T-R	2.54 mm	0.1 "	2	24	Gold	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Flash	Feed Through Polarizing Key	Gray	Female Socket	IDC
Assmann WSW Components AWP 24-8240-T	2.54 mm	0.1 "	2	24	Gold	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable		Feed Through	Gray	Female Socket	IDC

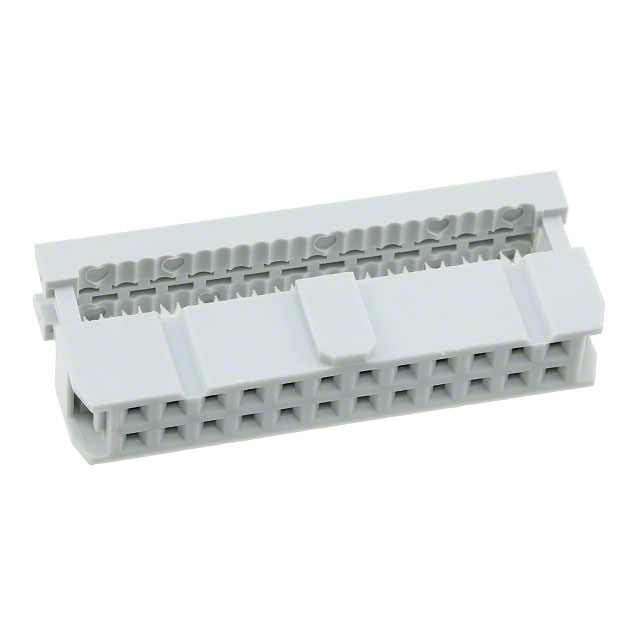

Assmann WSW Components AWP 24-7240-T	2.54 mm	0.1 "	2	24	Gold	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Flash	Feed Through Polarizing Key	Gray	Female Socket	IDC

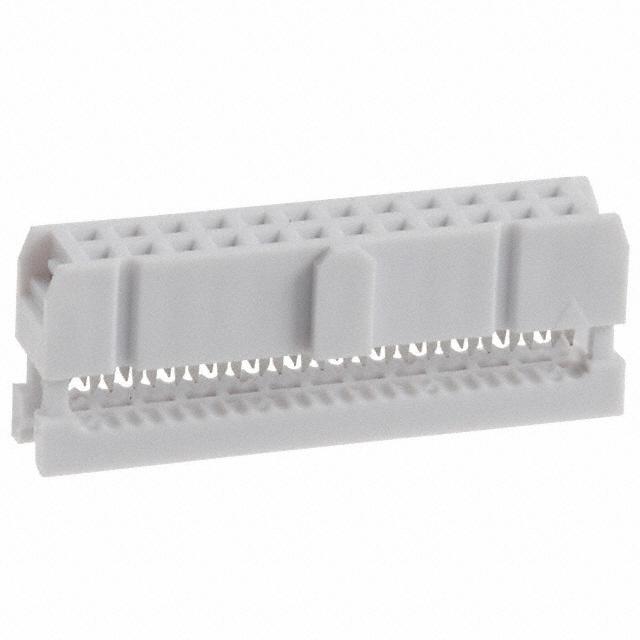

Assmann WSW Components AWP24-7540-T-R	2.54 mm	0.1 "	2	24	Tin	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable		Feed Through Polarizing Key	Gray	Female Socket	IDC

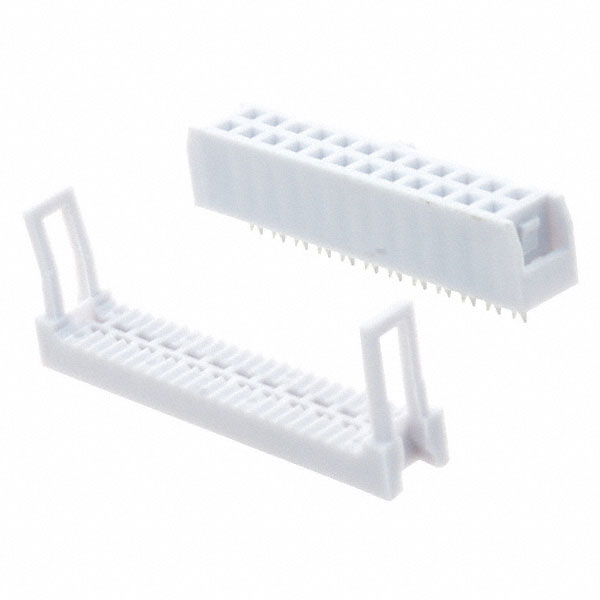

Assmann WSW Components AWP24-8540-T-R	2.54 mm	0.1 "	2	24	Tin	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable		Feed Through	Gray	Female Socket	IDC

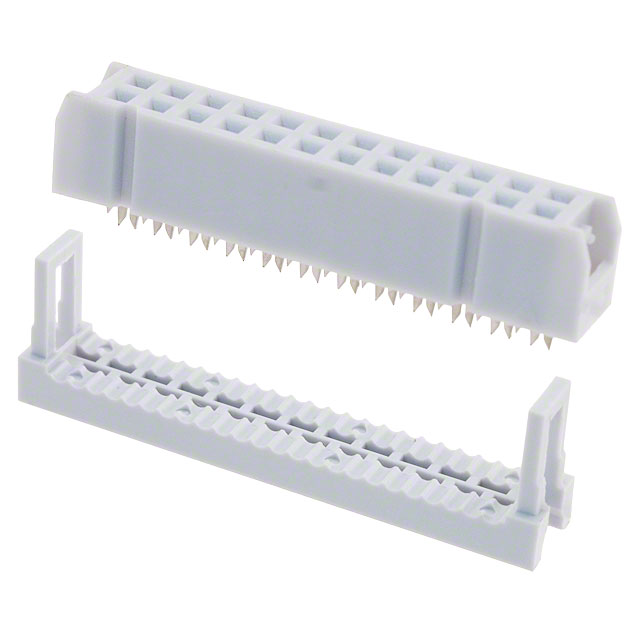

Assmann WSW Components AWP24-8240-T-R	2.54 mm	0.1 "	2	24	Gold	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable		Feed Through	Gray	Female Socket	IDC

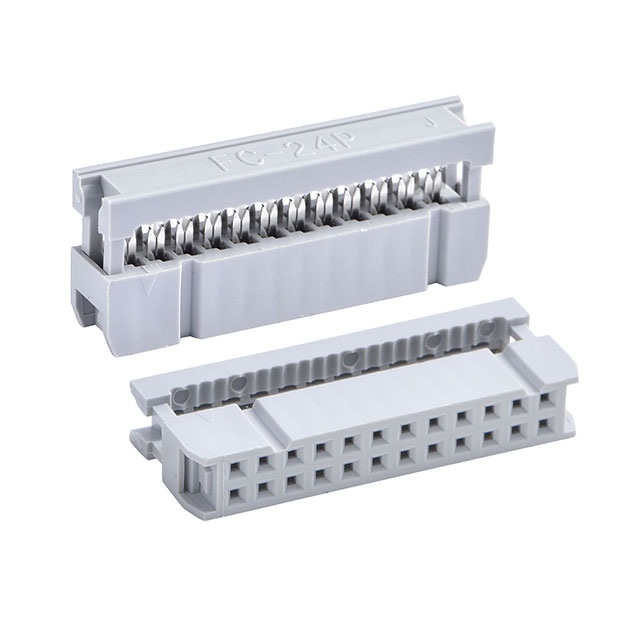

Assmann WSW Components AWP 24-8540-T	2.54 mm	0.1 "	2	24	Tin	0.1 "	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable		Feed Through	Gray	Female Socket	IDC
