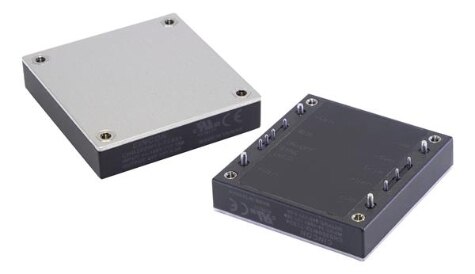

CHB200W12 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 200W 14-160VIN 48VOUT 4.2A

Part	Mounting Type	Standard Number	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Control Features	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Isolation	Supplier Device Package	Efficiency
Cincon Electronics Co. LTD CHB200W12-72S48	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active High Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	48 V	1	14 V	200 Watts	4.2 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S12	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active High Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	12 V	1	14 V	200 Watts	16.7 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S12N	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active Low Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	12 V	1	14 V	200 Watts	16.7 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S48N	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active Low Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	48 V	1	14 V	200 Watts	4.2 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S15N	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active Low Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	15 V	1	14 V	200 Watts	13.5 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S24	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active High Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	24 V	1	14 V	200 Watts	8.4 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S15	Through Hole	50155 62368-1	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Active High Enable	CB CE cURus	-40 C	100 °C	160 V	ITE (Commercial) Railway	15 V	1	14 V	200 Watts	13.5 A	3000 V	Half Brick	90 %
Cincon Electronics Co. LTD CHB200W12-72S15-CMFD	Chassis Mount	62368-1	Enclosed	78.5 mm	3.09 in	6.98 in	1.56 "	177.3 mm	39.6 mm			CE UKCA	-40 °C	95 °C	160 V	ITE (Commercial) Railway	15 V	1	14 V	200 Watts	13.5 A	4.2 kV
Cincon Electronics Co. LTD CHB200W12-72S12N-CMFD+HS	Chassis Mount	62368-1	Enclosed	96.5 mm	3.8 in	6.98 in	2.64 in	177.3 mm	67.1 mm			CE UKCA	-40 °C	95 °C	160 V	ITE (Commercial) Railway	12 V	1	14 V	200 Watts	16.7 A	4.2 kV
