FAN53703 Series

1.0A Synchronous Buck Regulator

Catalog

1.0A Synchronous Buck Regulator

Part	Output Configuration	Package / Case	Mounting Type	Frequency - Switching	Voltage - Input (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Current - Output	Synchronous Rectifier	Function	Voltage - Input (Min) [Min]	Topology	Number of Outputs

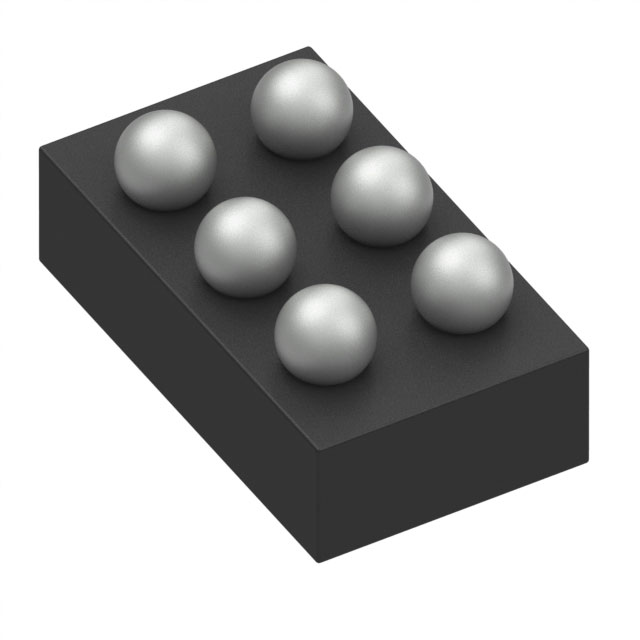

ON Semiconductor FAN53703UC48X	Positive	6-UFBGA WLCSP	Surface Mount	2.5 MHz	5.5 V	6-WLCSP (1.38x0.94)	85 °C	-40 °C	1.81 mOhm	1 A		Step-Down	2.3 V	Buck	1

Catalog

1.0A Synchronous Buck Regulator

Key Features

• 2μA Typical Quiescent Current

• 5.5mm2 total solution size

• 1.0 A Output Current Capability

• 0.6 V to 3.3 V Fixed Output Voltage

• 2.3 V to 5.5 V Input Voltage Range

• Best−in−Class Load Transient Response

• Best−in−Class Efficiency with Sub 1 mA Output Currents

• Internal Soft−Start Limits Battery Current Below 150 mA to AvoidBrown−out Scenarios

• Protection Faults (UVLO, OCP and OTP)

• Thermal Shutdown and Overload Protection

Description

The FAN5370X is a Super Low Iq, step−down switching voltage regulator, that delivers a fixed output from an input voltage supply of 2.3 V to 5.5 V. Using a proprietary architecture with synchronous rectification, the FAN5370X is capable of delivering a peak efficiency of 93%, while maintaining efficiency over 90% at load currents as low as 1 mA.
