717-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Rows [custom]	Pitch	Pitch	Contact Material	Mounting Type	Number of Positions/Bay/Row	Read Out	Contact Finish	Contact Type	Termination Rows	Number of Rows
EDAC Inc. 717-032-520-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever
EDAC Inc. 717-032-522-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever
EDAC Inc. 717-032-545-101		Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap		3.96 mm	0.156 in	Copper Alloy	Through Hole	32	Single	Gold	Cantilever	1	1
EDAC Inc. 717-032-525-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever

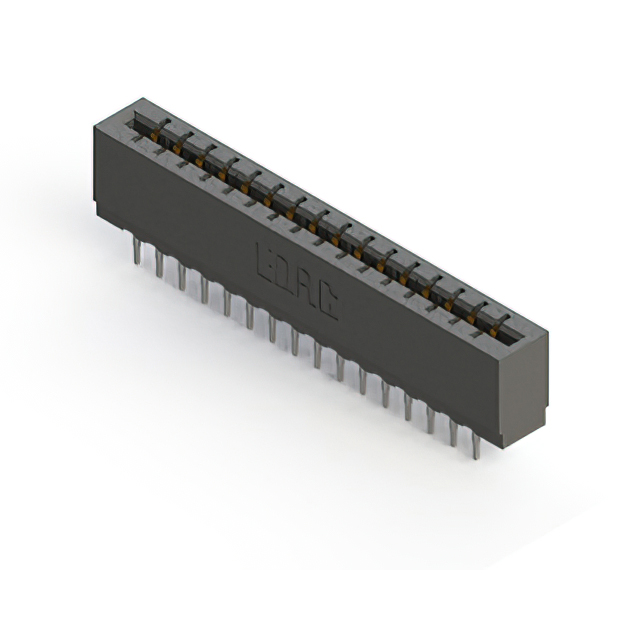

EDAC Inc. 717-032-545-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever

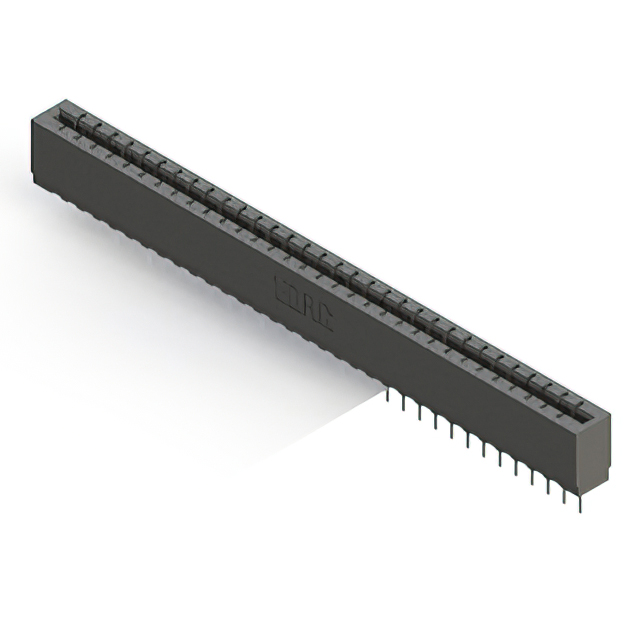

EDAC Inc. 717-032-522-101		Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit		3.96 mm	0.156 in	Copper Alloy	Through Hole	32	Single	Gold	Cantilever	1	1
EDAC Inc. 717-032-560-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever Make Before Break

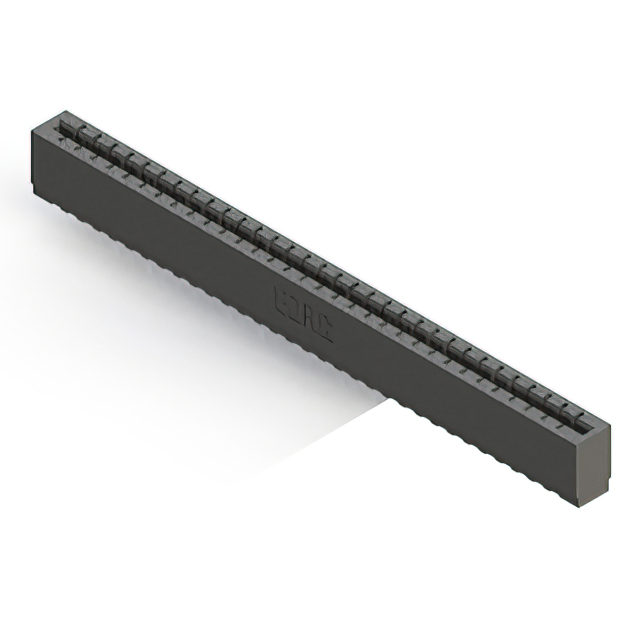

EDAC Inc. 717-032-520-101		Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit		3.96 mm	0.156 in	Copper Alloy	Through Hole	32	Single	Gold	Cantilever	1	1
EDAC Inc. 717-032-540-201	2	Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	3.96 mm	0.156 in	Copper Alloy	Through Hole	16	Dual	Gold	Cantilever
EDAC Inc. 717-032-541-101		Polyester Thermoplastic	Female	Black	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap		3.96 mm	0.156 in	Copper Alloy	Through Hole	32	Single	Gold	Cantilever	1	1
