10022753 Series

Catalog

CONN FFC FPC RCPT 14POS 2.54MM

Part	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Housing Color	Housing Material	Voltage Rating	Locking Feature	Number of Positions	Material Flammability Rating	Termination	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Finish	FFC, FCB Thickness	Connector/Contact Type	Contact Material	Mounting Type

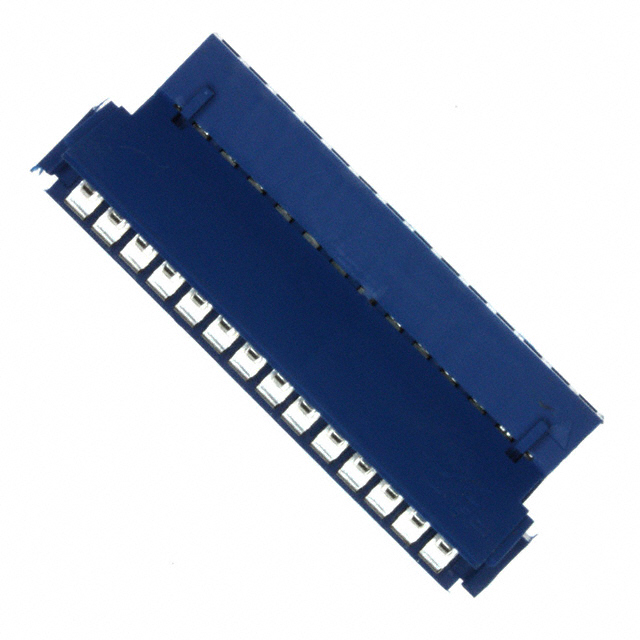

Amphenol ICC (FCI) 10022753-014LF	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	14	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-015LF	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	15	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-043LF	0.76 Ám	30 Áin	2 A	Blue	Thermoplastic	500 V	Latch Lock	10	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Gold Gold GXT™	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-016	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	16	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-049LF	0.76 Ám	30 Áin	2 A	Blue	Thermoplastic	500 V	Latch Lock	16	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Gold Gold GXT™	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-110LF	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	10	UL94 V-0	IDC	CIC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)

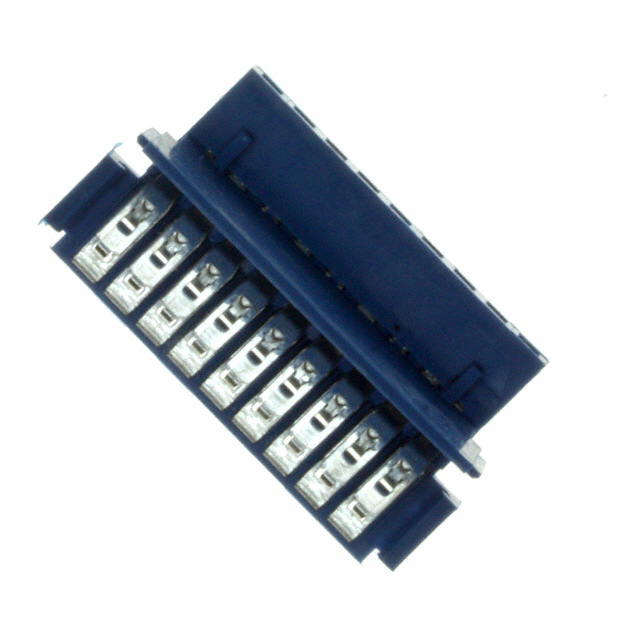

Amphenol ICC (FCI) 10022753-009LF	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	9	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)

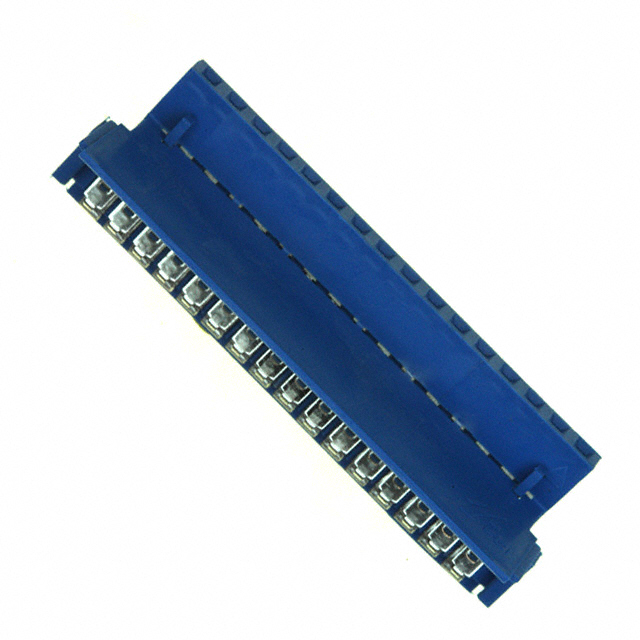

Amphenol ICC (FCI) 10022753-016LF	2.54 µm	100 µin	2 A	Blue	Thermoplastic	500 V	Latch Lock	16	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Tin	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-040LF	0.76 Ám	30 Áin	2 A	Blue	Thermoplastic	500 V	Latch Lock	7	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Gold Gold GXT™	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
Amphenol ICC (FCI) 10022753-043	0.76 Ám	30 Áin	2 A	Blue	Thermoplastic	500 V	Latch Lock	10	UL94 V-0	IDC	FFC FPC	105 ░C	-65 ░C	0.1 "	2.54 mm	Gold Gold GXT™	0.33 mm	Receptacle	Copper Nickel Alloy	Free Hanging (In-Line)
