T1770103132 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

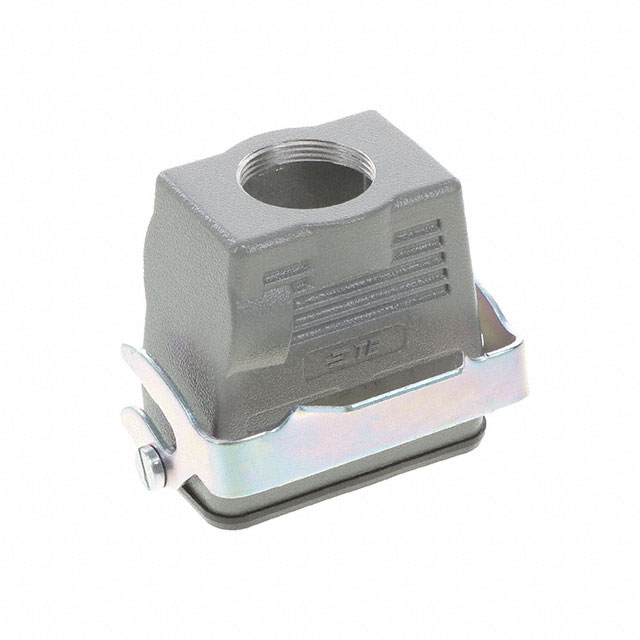

H10B-TBFH-LB-M32
| Part | Style | Features | Size | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Ingress Protection | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Connector Type | Housing Finish | Thread Size | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Bottom Entry Top or Bottom Entry | Cable to Cable | H10B | Aluminum Alloy Die Cast | 125 °C | -40 C | Gray | IP65 - Dust Tight Water Resistant | 74.8 mm | 2.933 " | 2.945 " | 45 mm | 1.772 in | 74.5 mm | Hood - Coupling | Powder Coated | M32 | Locking Clip (1) on Hood Top |
