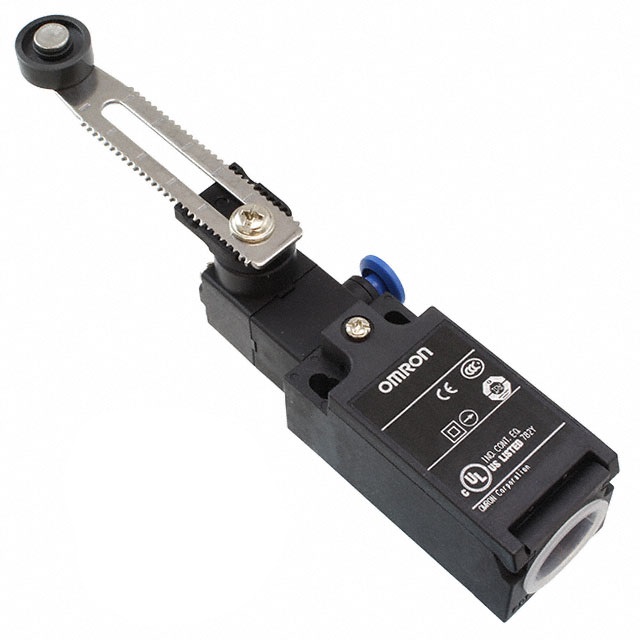

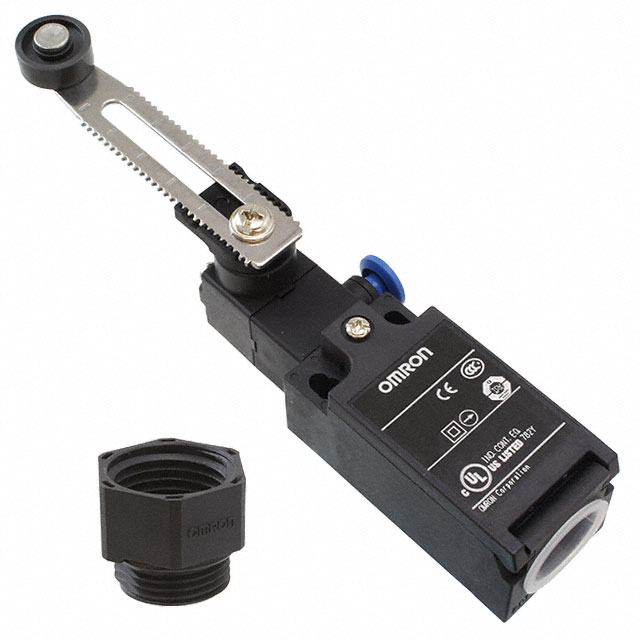

D4N-4B2 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT DPST-NC 10A 120V
| Part | Operating Force | Voltage Rating - DC | Ingress Protection | Termination Style | Voltage Rating - AC | Pretravel | Circuit | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Switch Function | Current Rating (Amps) | Features | Overtravel | Release Force | Electrical Life | Differential Travel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 551 gf | 125 VDC | IP67 - Dust Tight Waterproof | Screw Terminal | 120 V | 18 ° | DPST-NC | Side Rotary Adjustable Roller | -30 ░C | 70 °C | Chassis Mount | On-Off | 2.5 A 10 A | ||||||
 Omron Automation and Safety | 459 gf | 250 V | IP67 - Dust Tight Waterproof | Screw Terminal | 240 V | 18 ° | DPST-NC | Side Rotary Adjustable Roller | -30 ░C | 70 °C | Chassis Mount | On-Mom | 3 A 270 mA | Metal Lever Rubber Roller | 40 ° | 41 gf | 300000 Cycles | 14 ° | 15000000 Cycles |
 Omron Automation and Safety | 459 gf | 250 V | IP67 - Dust Tight Waterproof | Screw Terminal | 240 V | 18 ° | DPST-NC | Side Rotary Adjustable Roller | -30 ░C | 70 °C | Chassis Mount | On-Mom | 3 A 270 mA | Metal Lever Resin Roller | 40 ° | 41 gf | 300000 Cycles | 14 ° | 15000000 Cycles |
 Omron Automation and Safety | 571 gf | 125 VDC | IP67 - Dust Tight Waterproof | Screw Terminal | 120 V | 18 ° | DPST-NC | Side Rotary Adjustable Roller | -30 ░C | 70 °C | Chassis Mount | On-Off | 2.5 A 10 A | Metal Lever Reset Function Resin Roller | 300000 Cycles | 1000000 Cycles | |||
 Omron Automation and Safety | 571 gf | 125 VDC | IP67 - Dust Tight Waterproof | Screw Terminal | 120 V | 18 ° | DPST-NC | Side Rotary Adjustable Roller | -30 ░C | 70 °C | Chassis Mount | On-Off | 2.5 A 10 A | Metal Lever Reset Function Resin Roller | 300000 Cycles | 1000000 Cycles |
