1546551 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

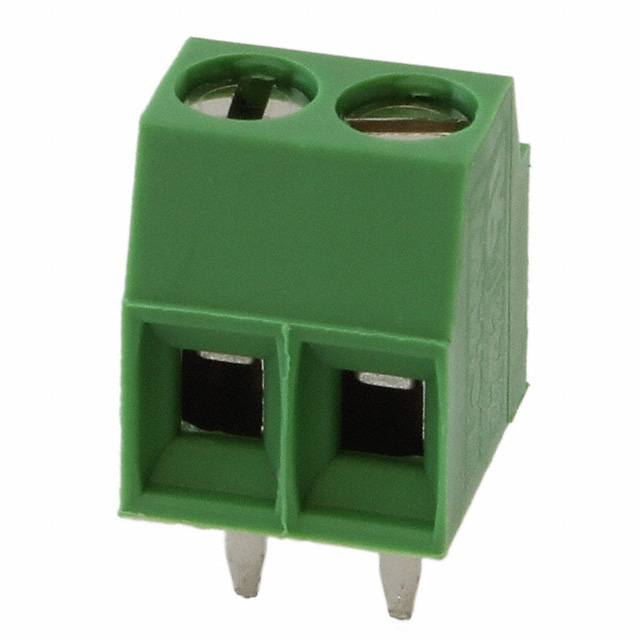

TERM BLK 2POS SIDE ENT 3.5MM PCB
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Wire Termination | Clamp Material - Plating | Mounting Type | Positions Per Level | Contact Material - Plating | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Current | Pitch [x] | Pitch [x] | Voltage | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

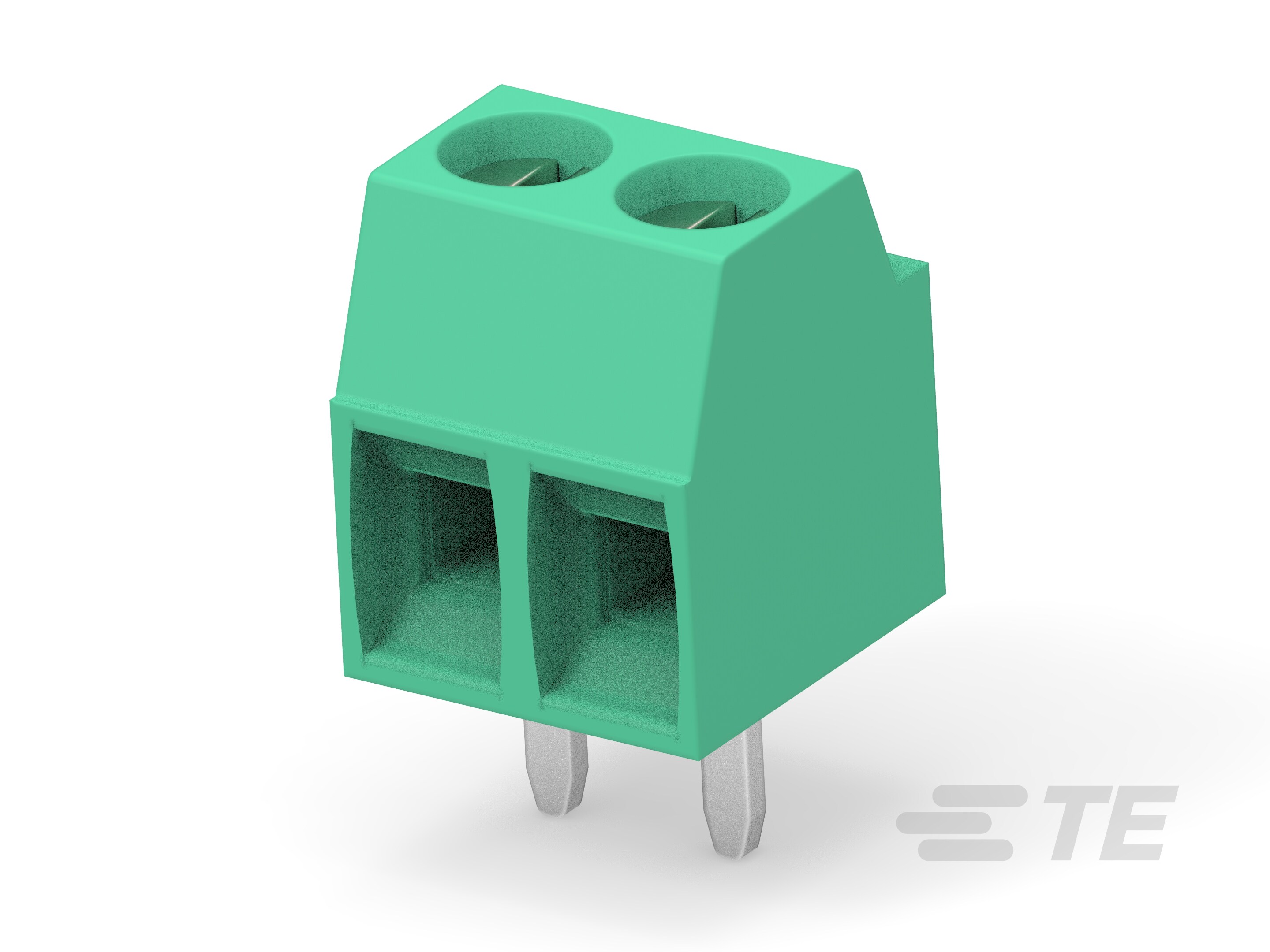

 TE Connectivity Raychem Cable Protection | 28 AWG | 16 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Copper Alloy - Nickel Plated | Through Hole | 2 | Copper Alloy - Tin Plated | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 12 A | 3.5 mm | 0.138 in | 300 V | 1 | Green |

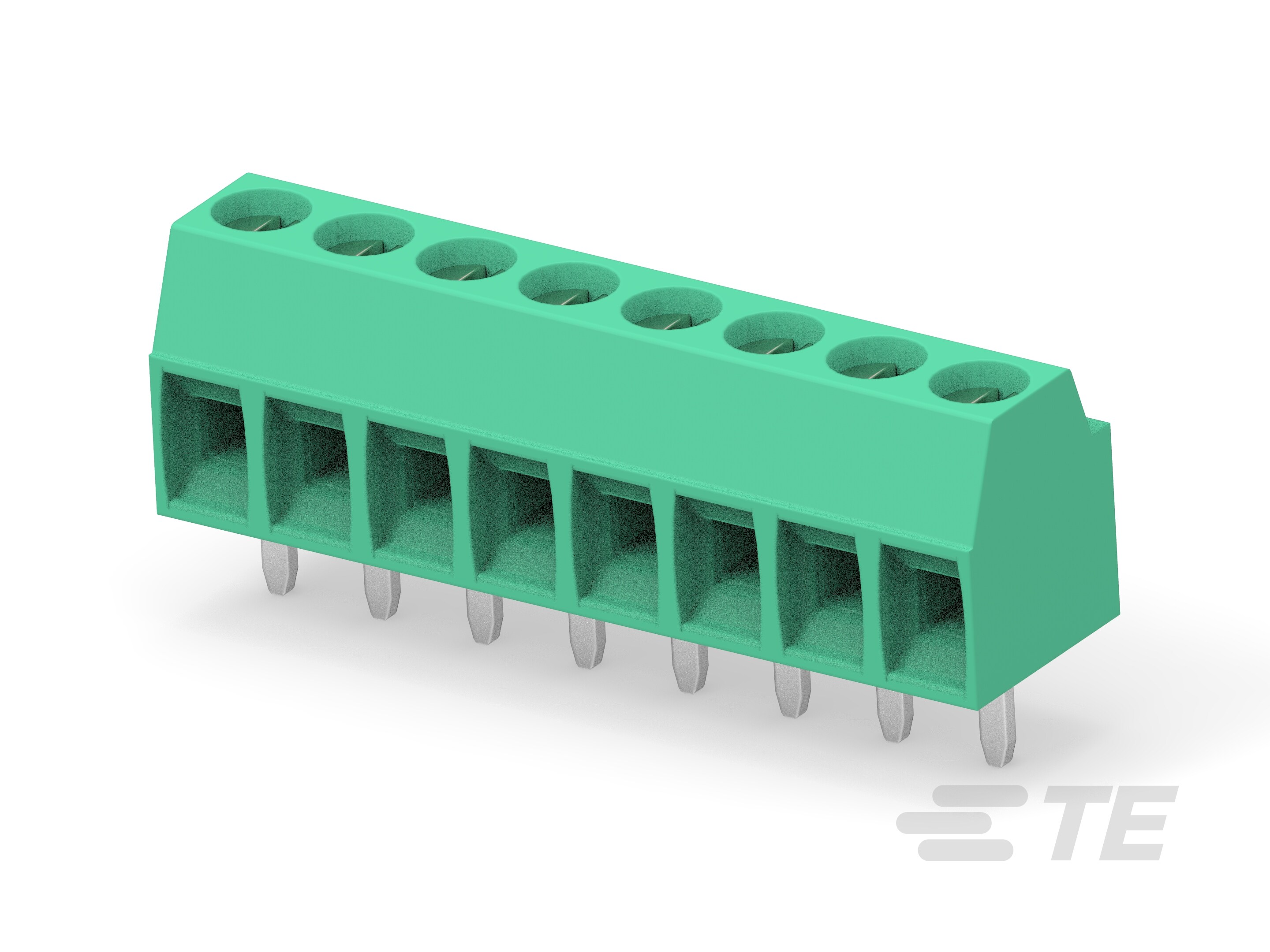

 TE Connectivity Raychem Cable Protection | 28 AWG | 16 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Copper Alloy - Nickel Plated | Through Hole | 8 | Copper Alloy - Tin Plated | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 12 A | 3.5 mm | 0.138 in | 300 V | 1 | Green |
TE Connectivity Raychem Cable Protection | 28 AWG | 16 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Copper Alloy - Nickel Plated | Through Hole | 6 | Copper Alloy - Tin Plated | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 12 A | 3.5 mm | 0.138 in | 300 V | 1 | Green |
