XRP2527 Series
Manufacturer: MaxLinear, Inc.
Beta
⌘K

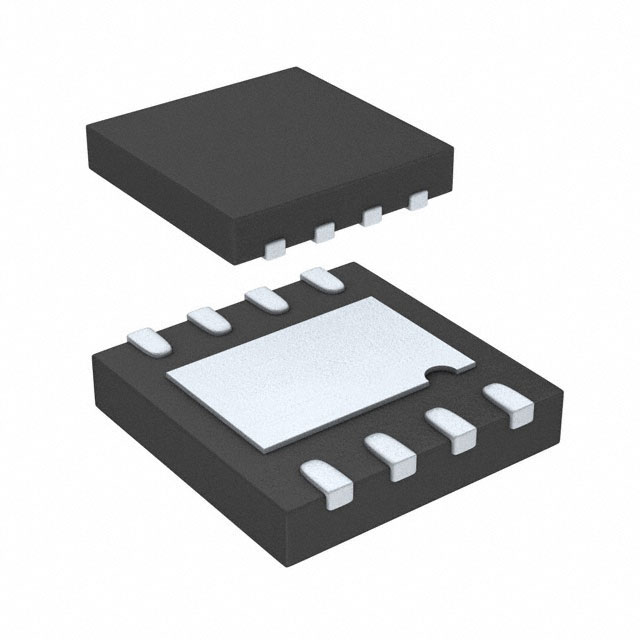

IC PWR SWITCH 1:1 8TDFN
| Part | Package / Case | Features | Voltage - Load [Max] | Voltage - Load [Min] | Number of Outputs | Interface | Ratio - Input:Output | Mounting Type | Switch Type | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Configuration | Rds On (Typ) | Fault Protection | Input Type | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MaxLinear, Inc. | 8-WDFN Exposed Pad | Status Flag | 5.5 V | 1.8 V | 1 | On/Off | 1:1 | Surface Mount | USB Switch | 1 A | -40 C | 125 °C | 8-DFN (3x3) | High Side | 80 mOhm | Current Limiting (Adjustable) Over Temperature Reverse Current UVLO | Non-Inverting | Not Required |
MaxLinear, Inc. | 8-WDFN Exposed Pad | Status Flag | 5.5 V | 1.8 V | 1 | On/Off | 1:1 | Surface Mount | USB Switch | 1 A | -40 C | 125 °C | 8-DFN (3x3) | High Side | 80 mOhm | Current Limiting (Adjustable) Over Temperature Reverse Current UVLO | Non-Inverting | Not Required |
