9228-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

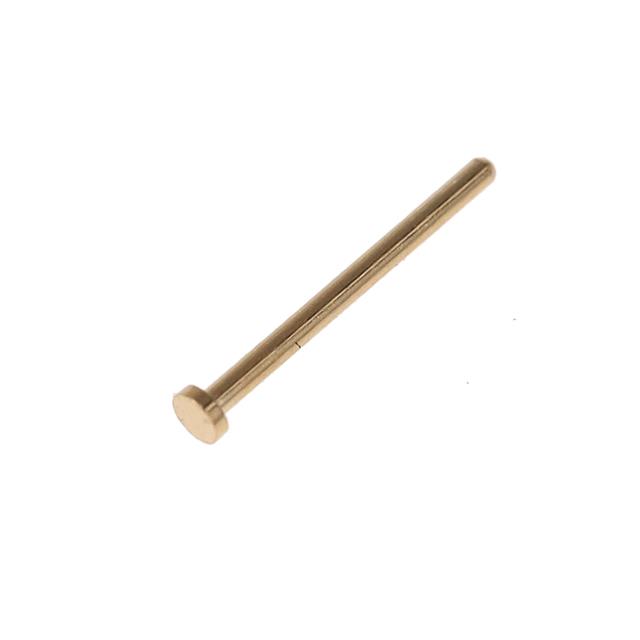

9228 NAIL HEAD PIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.38 µm | 15 µin | Brass Alloy | Through Hole | Nail Head Single End | 0.078 " | 1.98 mm | Non-Insulated | 13.21 mm | 0.52 in | 0.54 in | 13.72 mm | 1.12 mm | 0.044 in | 0.04 in | 1.02 mm | Gold | Solder | PC Pin |
